SICK WT9L-N330 Compact Laser Photoelectric Proximity Sensor with Background Suppression
- Regular price
- $525.00
- Sale price
- $525.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WT9L-N330
Description

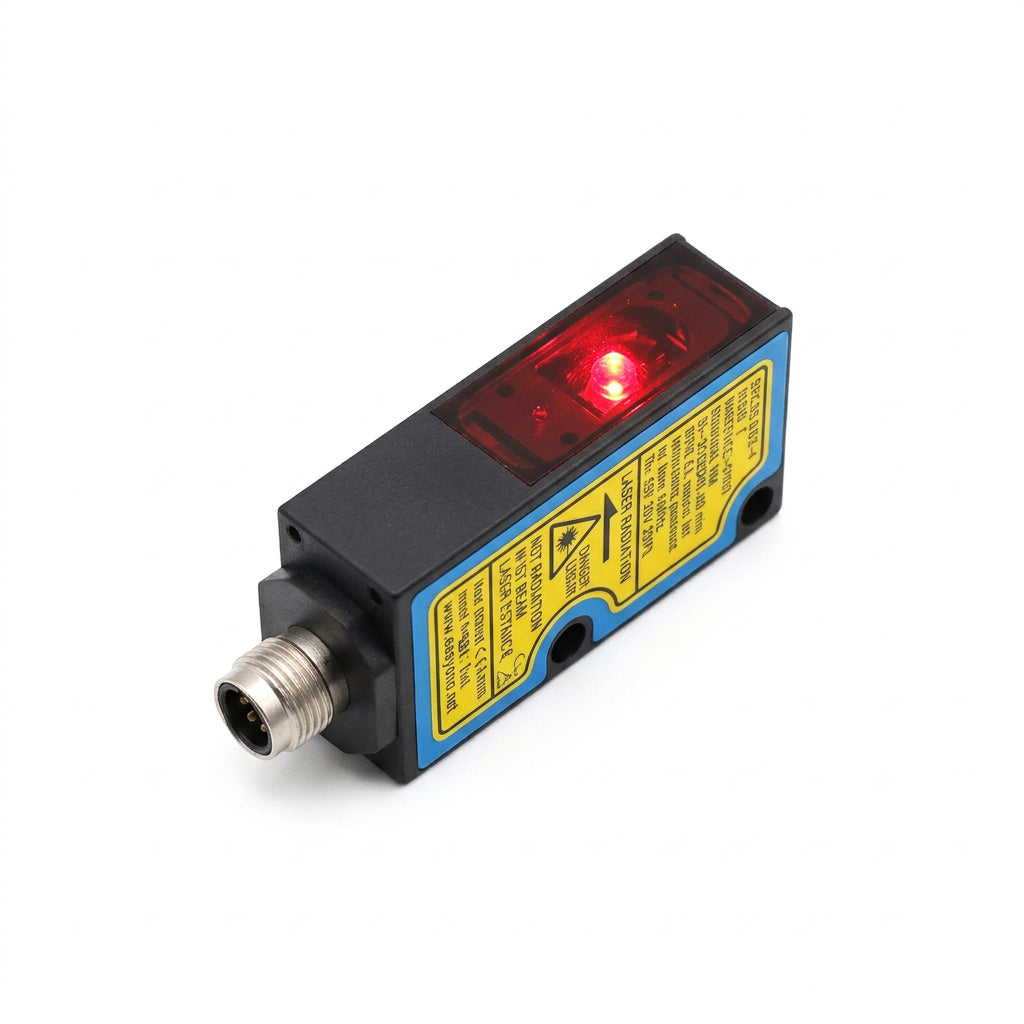

The SICK WT9L-N330 is a compact laser photoelectric proximity sensor designed for reliable object detection in industrial automation systems. Featuring background suppression, a visible red Class 2 laser, and an adjustable sensing range of 30–150 mm, it detects objects without requiring a separate reflector and provides an NPN switching output for integration with compatible control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Sensors & Switches |
| Part Number | WT9L-N330 |
| Subcategory | Laser Photoelectric Sensors |
| Manufacturer Order Number | 1023991 |
| Product Series | W9L |
| Sensor Type | Photoelectric proximity sensor |
| Detection Principle | Background suppression |
| Light Source | Visible red laser |
| Light Spot Diameter | Approximately 0.5 mm at 60 mm |
| Supply Voltage | 10–30 V DC |
| Current Consumption | 35 mA |
| Switching Mode | Light-on / dark-on |
| Maximum Output Current | 100 mA |
| Housing Material | ABS plastic |
| Weight | 0.09 lb |
Information About WT9L-N330
The WT9L-N330 belongs to SICK’s W9L laser sensor series and has manufacturer order number 1023991. Its background suppression function helps distinguish objects from backgrounds based on distance, supporting dependable detection in varied installation conditions. The sensor uses a four-pin M8 male connector and complementary NPN switching outputs with selectable light-on or dark-on operation. Its compact rectangular housing, IP67 protection, and adjustable seven-turn potentiometer make it suitable for integration into space-constrained industrial equipment.
Key Features:
-
Laser-Based Detection: Uses visible red laser light for precise, non-contact object sensing.
-
Background Suppression: Helps detect targets while reducing unwanted switching caused by background objects.
-
Adjustable Sensing Range: Covers a sensing distance of 30–150 mm under specified conditions.
-
Compact Design: Measures just 12 × 40 × 22 mm for installation in restricted spaces.
-
NPN Switching Output: Provides complementary outputs for compatible industrial control inputs.
-
Flexible Switching Modes: Supports light-on and dark-on operation.
-
Potentiometer Adjustment: Uses a seven-turn potentiometer to adjust the sensing distance.
-
Industrial Protection: Features an IP67 enclosure rating and reverse-polarity and short-circuit protection.
The WT9L-N330 delivers precise and dependable object detection for packaging machinery, conveyor systems, component handling, and automated production equipment.
