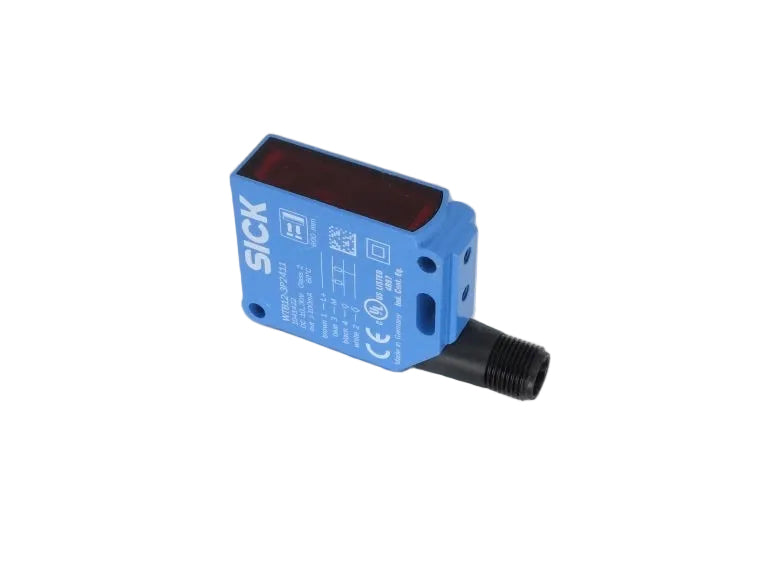

SICK WTB12-3P2411 Photoelectric Sensor with Background Suppression
- Regular price
- $289.00
- Sale price
- $289.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WTB12-3P2411
Description
The SICK WTB12-3P2411 is a photoelectric proximity sensor that detects objects using infrared light and background suppression. Its 20–600 mm sensing range, complementary PNP outputs, and fast switching support object monitoring in automated production and handling equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Sensors & Switches |
| Part Number | WTB12-3P2411 |
| Subcategory | Photoelectric |
| Series | W12-3 |
| Manufacturer Part Number | 1041422 |
| Detection Principle | Photoelectric proximity sensing with background suppression |
| Sensing Range | 20–600 mm |
| Light Source | Infrared LED |
| Wavelength | 850 nm |
| Supply Voltage | 10–30 V DC |
| Current Consumption | 55 mA without load |
| Switching Output | Complementary PNP; light/dark switching |
| Maximum Output Current | 100 mA |
| Response Time | ≤330 µs with resistive load |
| Switching Frequency | 1,500 Hz at a light/dark ratio of 1:1 |
| Connection Type | M12 male connector, 4-pin |
| Housing | Rectangular metal housing |
| Enclosure Rating | IP66, IP67, IP69K |
| Weight | 0.26 lbs |
Information About WTB12-3P2411
The WTB12-3P2411 is part of the SICK W12-3 family of photoelectric sensors with metal housings. Background suppression helps distinguish objects within the sensing area from surfaces farther behind them. The sensor operates from a 10–30 V DC supply and connects through an M12 4-pin male connector. IP66, IP67, and IP69K enclosure ratings support installation in demanding industrial environments.
Key Features:
- Background Suppression: Distinguishes target objects from background surfaces beyond the configured sensing distance.
- Infrared LED: Uses an 850 nm light source for non-contact object detection.
- Sensing Range: Detects objects within a specified range of 20–600 mm.
- Complementary PNP Outputs: Provides complementary switching signals for compatible controller inputs.
- Light/Dark Switching: Supports switching based on the presence or absence of detected light.
- Fast Response: A response time of ≤330 µs supports prompt detection of passing objects.
- High Switching Frequency: Operates at up to 1,500 Hz for repeated detection on moving production lines.
- Industrial Protection: Combines a metal housing with IP66, IP67, and IP69K enclosure ratings.
The WTB12-3P2411 delivers the reliability and precision required for object detection and position monitoring in automated industrial equipment.
