Sick WTB8L-P1131 W8 Laser Photoelectric Sensor
- Regular price
- $425.00
- Sale price
- $425.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WTB8L-P1131
Description

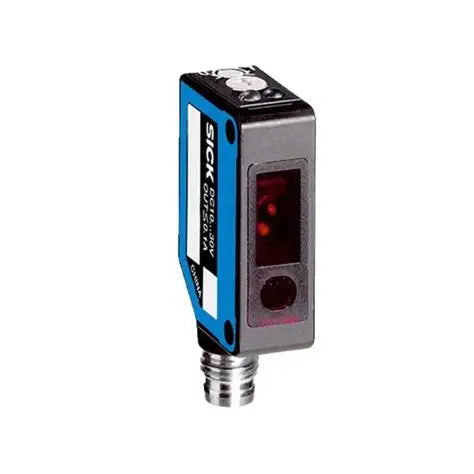

The Sick WTB8L-P1131 is a miniature laser photoelectric proximity sensor designed for precise, non-contact object detection in industrial automation systems. It uses background suppression technology to detect small objects at distances of up to 300 mm, making it suitable for high-speed production, packaging, and material handling applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Sick |
| Category | Industrial Automation |
| Part Number | WTB8L-P1131 |
| Manufacturer Part Number | 6033217 |
| Series | W8 Laser |
| Subcategory | Laser Photoelectric Sensors |
| Sensor Type | Photoelectric Proximity Sensor |
| Detection Principle | Background Suppression |
| Sensing Range | 40–300 mm |
| Maximum Sensing Range | 300 mm |
| Light Source | Red Laser, 650 nm |
| Laser Class | Class 1 |
| Laser Spot Size | Approximately 1.5 mm at 300 mm |
| Supply Voltage | 10–30 V DC |
| Current Consumption | 30 mA |
| Switching Output | PNP |
| Switching Mode | Light-on / Dark-on, selectable |
| Maximum Output Current | 100 mA |
| Switching Frequency | 2,000 Hz |
| Connection Type | 4-wire cable, 2 m |
| Cable Material | PVC |
| Housing Material | ABS Plastic |
| Optics Material | PMMA Plastic |
| Dimensions (W × H × D) | 11 × 31 × 20 mm |
| Operating Temperature | −10°C to +50°C |
| Storage Temperature | −40°C to +70°C |
| Weight | 50 g |
Information About WTB8L-P1131
The WTB8L-P1131 belongs to the Sick W8 Laser series and uses a visible red laser beam to detect objects independently of background surfaces. Its adjustable sensing range and small laser spot support detection of small objects and targets moving at high speeds. The sensor features a PNP switching output with selectable light-on and dark-on modes. Its compact housing, two-meter cable, and IP67 protection rating allow installation in space-constrained industrial environments.
Key Features:
- Laser Detection: Uses a visible red laser for precise object sensing.
- Background Suppression: Helps distinguish objects from background surfaces.
- Adjustable Sensing Range: Provides a sensing range of 40–300 mm, with a maximum specified range of 30–300 mm under defined conditions.
- Compact Design: Measures only 11 × 31 × 20 mm for space-saving installation.
- PNP Switching Output: Connects to compatible industrial control inputs.
- High-Speed Detection: Offers a response time of 0.25 ms and switching frequency of 2,000 Hz.
- Industrial Protection: Features an IP67-rated enclosure and a four-wire, two-meter cable.
The Sick WTB8L-P1131 provides precise, high-speed object detection for compact industrial automation and production equipment.
