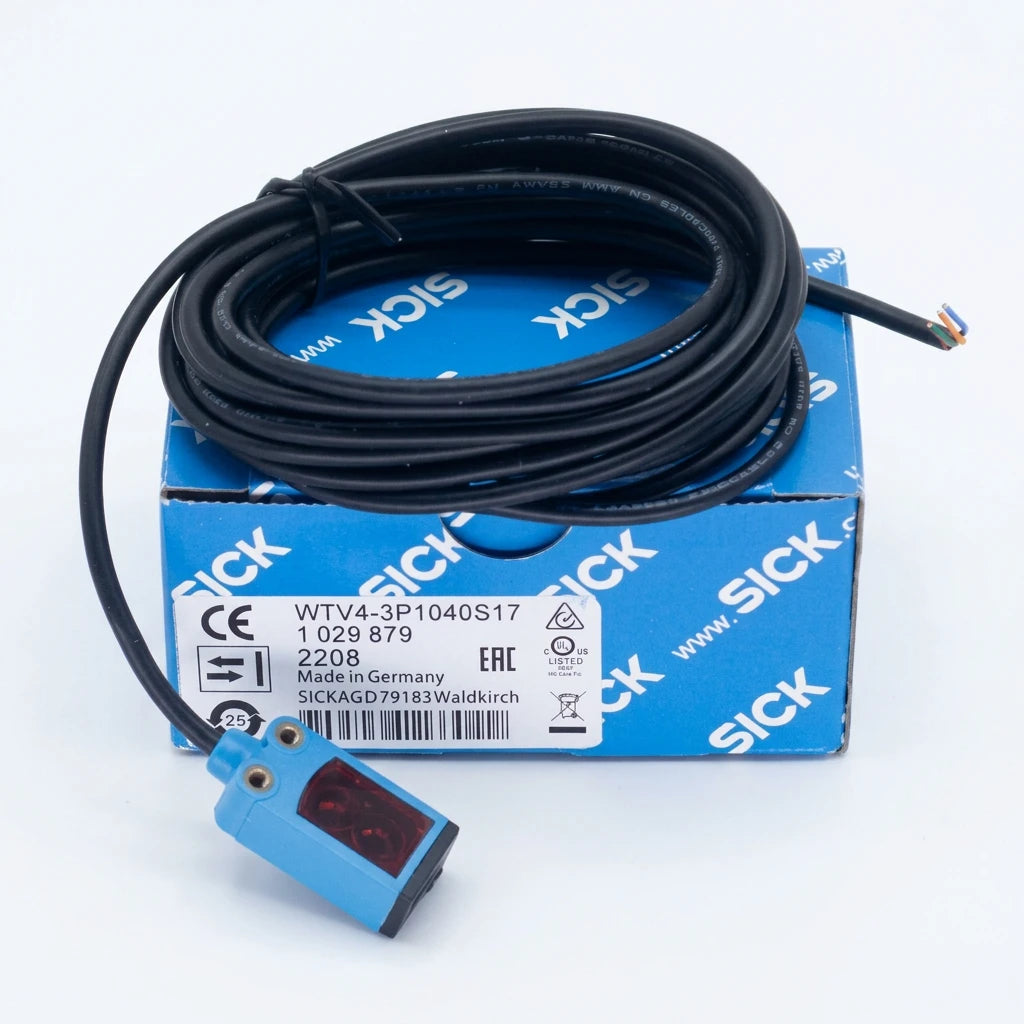

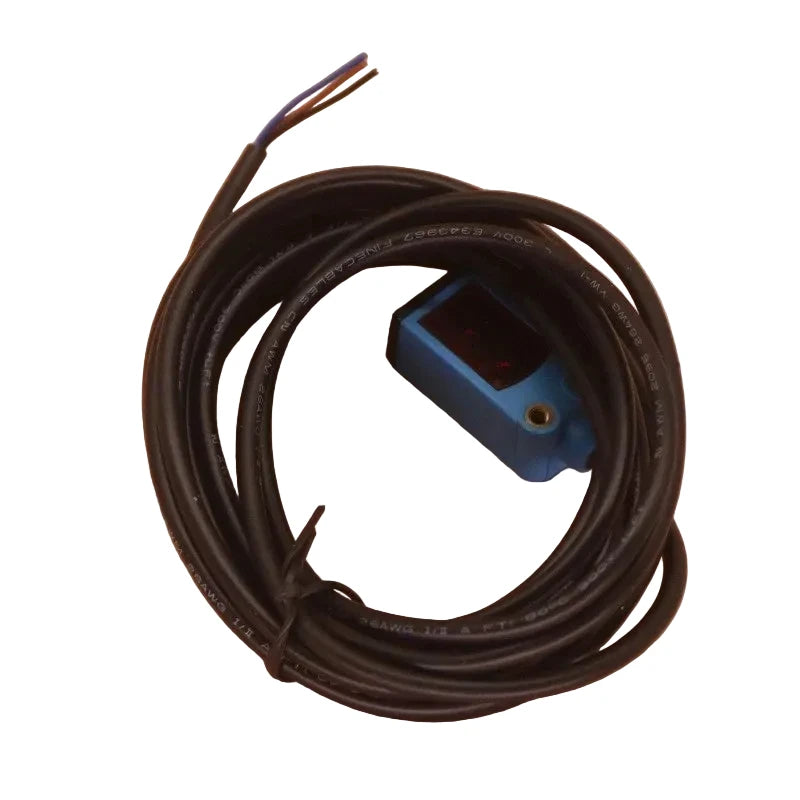

SICK WTV4-3P1040S17 Photoelectric Proximity Sensor with Background Suppression
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WTV4-3P1040S17
Description
The SICK WTV4-3P1040S17 is a miniature photoelectric proximity sensor designed to detect objects at distances of up to 22 mm. It uses visible red LED light and background suppression to provide reliable object detection in industrial automation applications. The sensor operates on 10–30 V DC and features a PNP switching output, a 3-meter cable, and IP67 protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Automation Equipment |
| Part Number | WTV4-3P1040S17 |
| Subcategory | Photoelectric Sensors |
| Model | WTV4-3P1040S17 |
| Product Series | W4-3 |
| Sensor Type | Photoelectric proximity sensor |
| Detection Principle | Background suppression |
| Maximum Sensing Range | 22 mm |
| Light Source | Visible red LED |
| Supply Voltage | 10–30 V DC |
| Switching Output | PNP |
| Switching Mode | Light switching |
| Maximum Output Current | 100 mA |
| Response Time | Less than 0.5 ms |
| Switching Frequency | 1,000 Hz |
| Connection Type | 3-wire cable |
| Cable Length | 3 m |
| Enclosure Rating | IP67 |
| Housing Material | ABS plastic |
| Dimensions (W × H × D) | 16 × 39.5 × 12 mm |
| Operating Temperature | −40 °C to +60 °C |
| Weight | 0.066 lb |
Information About WTV4-3P1040S17
The WTV4-3P1040S17 is part of SICK’s W4-3 series of compact photoelectric sensors. Its background suppression function helps distinguish target objects from their surroundings. The sensor supports light-switching operation through a PNP digital output with a maximum output current of 100 mA. Its compact housing and environmental protection rating make it suitable for installation in industrial equipment and automated production systems.
Key Features:
-
Background Suppression: Detects objects while reducing interference from backgrounds.
-
Sensing Range: Provides a maximum detection range of 22 mm.
-
Light Source: Uses a visible red LED for photoelectric detection.
-
PNP Output: Supports PNP digital switching with light-switching operation.
-
Operating Voltage: Accepts a supply voltage of 10–30 V DC.
-
Fast Response: Features a response time below 0.5 ms.
-
Environmental Protection: IP67-rated enclosure protects against dust and temporary water immersion.
-
Cable Connection: Includes a 3-wire cable measuring 3 meters.
The WTV4-3P1040S17 delivers the reliability and precision required for compact industrial sensing, object detection, and automated control applications.
