Siemens 1LA7063-4AB12 SIMOTICS GP 0.18/0.21 kW AC Induction Motor

Description

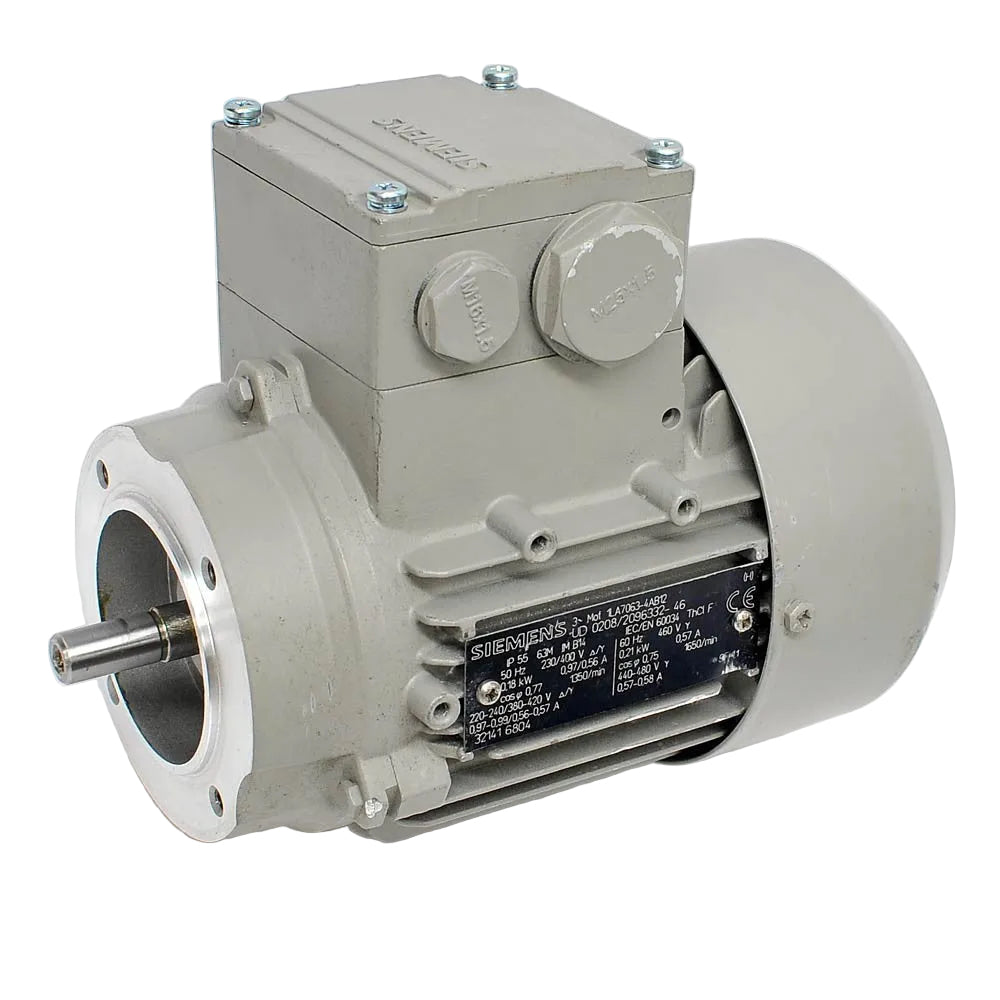

The Siemens 1LA7063-4AB12 is a three-phase SIMOTICS GP squirrel-cage induction motor designed for general-purpose industrial drive applications. It features a compact aluminum housing, a 4-pole configuration, and a flange-mount design for integration into compatible machinery. The motor supports 0.18 kW operation at 50 Hz and 0.21 kW at 60 Hz.

Technical Specifications

Information About 1LA7063-4AB12

The 1LA7063-4AB12 is a Siemens low-voltage AC motor designed for continuous-duty industrial applications. It operates at rated voltages of 230 V delta/400 V star at 50 Hz and 460 V star at 60 Hz. Its rated speeds are approximately 1,350 rpm at 50 Hz and 1,650 rpm at 60 Hz. The aluminum frame, IP55 protection rating, and TEFC cooling design support use in compatible industrial environments.

Key Features:

• Manufacturer: Siemens industrial electric motors.

• Product Family: SIMOTICS GP 1LA7.

• Motor Type: Three-phase squirrel-cage induction motor.

• Rated Power: 0.18 kW at 50 Hz / 0.21 kW at 60 Hz.

• Rated Speed: 1,350 rpm at 50 Hz / 1,650 rpm at 60 Hz.

• Voltage: 230 V delta / 400 V star at 50 Hz; 460 V star at 60 Hz.

• Protection Rating: IP55 for protection against dust and water jets.

• Cooling: TEFC, IC 411; aluminum frame with flange mounting.

The 1LA7063-4AB12 delivers the motor drive performance required for compatible industrial machinery and auxiliary equipment.
