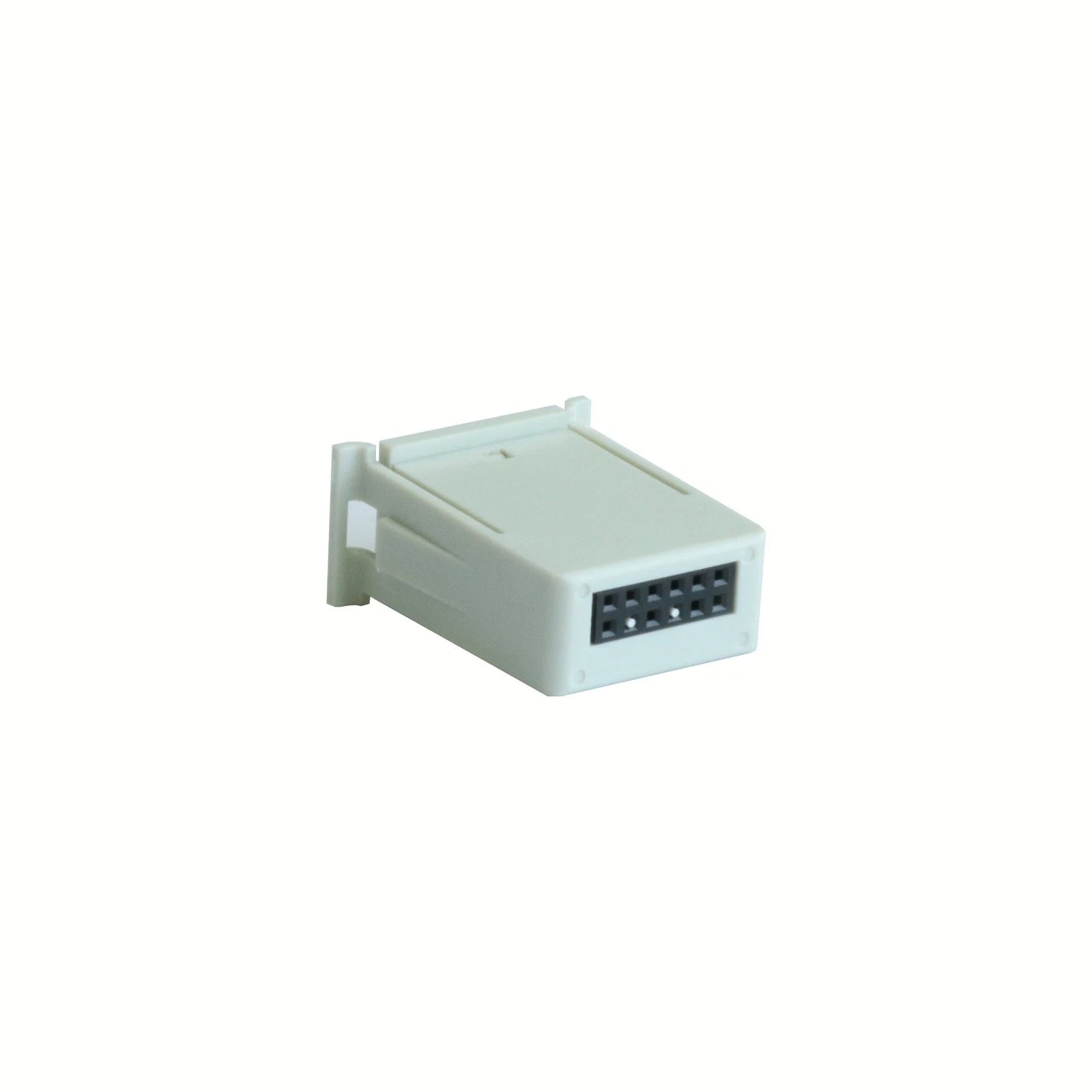

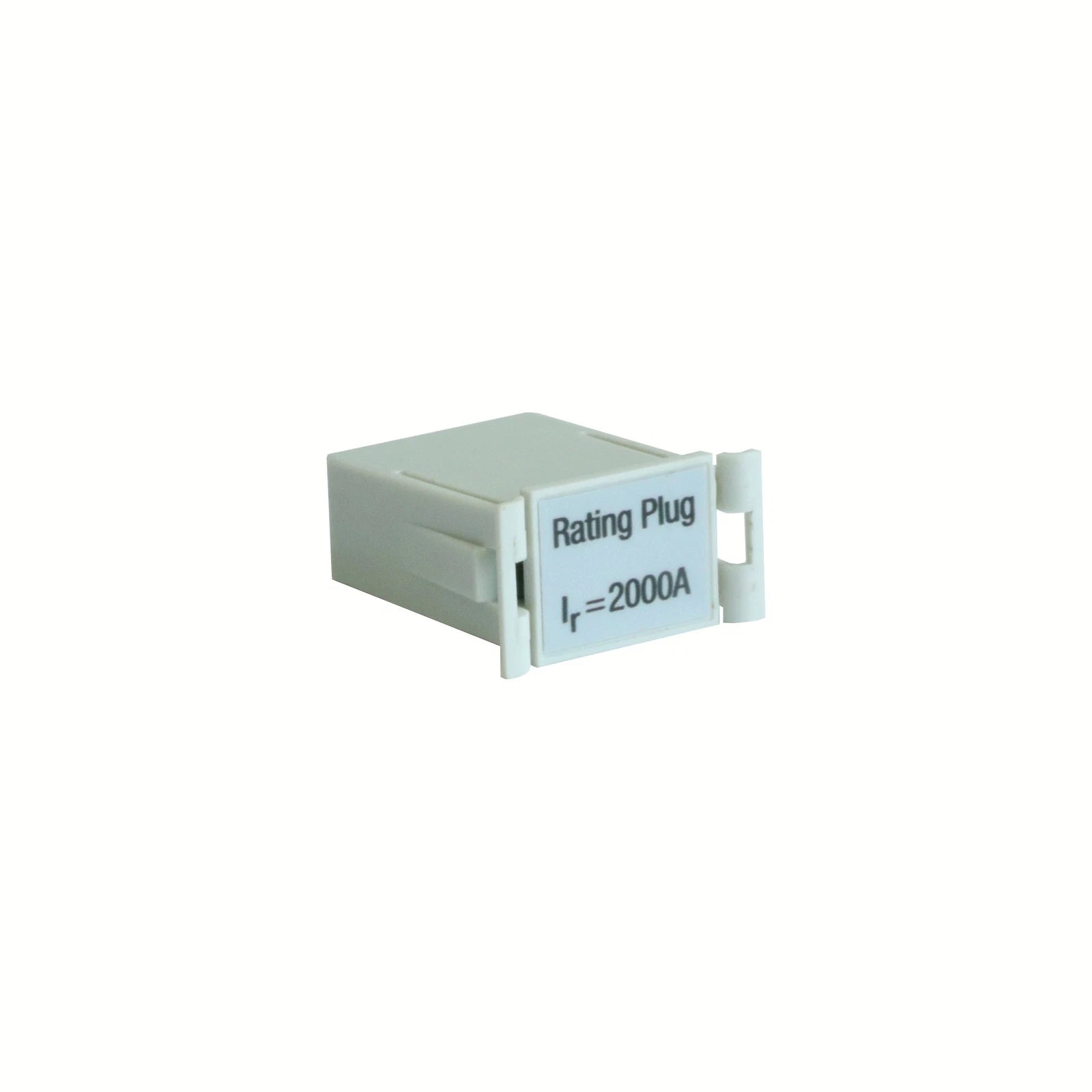

Siemens 25SB2000 Rating Plug 2000A for SB Series Circuit Breakers with 2500A Sensor
- Regular price
- $457.00
- Sale price
- $457.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 25SB2000
Description
The Siemens 25SB2000 rating plug is a precision component designed to set the current rating of compatible SB series circuit breakers. Rated at 2000 A, it works in conjunction with a 2500 A sensor to ensure accurate protection and system coordination. This plug enables reliable adjustment of trip unit parameters for optimized circuit performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breaker Accessories |
| Part Number | 25SB2000 |
| Subcategory | Rating Plugs |
| Series | SB Series |
| Rated Current | 2000 A |
| Sensor Rating | 2500 A |
| Compatible Frames | SBA, SBH, SBS |
| Trip Unit Compatibility | SB-EC, TL electronic trip units |
| Function | Current rating configuration |
| Application | Industrial power distribution systems |
| Installation Type | Plug-in |
| Weight | 1.36 kg |
Information About 25SB2000
The 25SB2000 is part of Siemens’ SB series rating plug range, developed for use with insulated case circuit breakers in industrial power distribution systems. It is specifically designed for SBA, SBH, and SBS frame breakers equipped with SB-EC or TL electronic trip units. The plug defines the continuous current rating of the breaker, allowing precise calibration without replacing the full breaker assembly. This component is widely used in high-capacity electrical systems where accurate current limiting and protection coordination are essential.
Key Features:
- Current Rating Configuration: Sets breaker trip rating to 2000 A for accurate protection control
- Sensor Compatibility: Designed for use with 2500 A current sensors
- SB Series Integration: Compatible with Siemens SBA, SBH, and SBS insulated case breakers
- Electronic Trip Unit Support: Works with SB-EC and TL solid-state trip systems
- Plug-In Design: Allows quick installation and replacement without system modification
- Precision Calibration: Ensures consistent and reliable current measurement
- High-Capacity Application: Suitable for heavy-duty industrial power distribution systems
The 25SB2000 delivers the reliability and precision required for accurate current setting and protection configuration in high-capacity circuit breaker systems.
