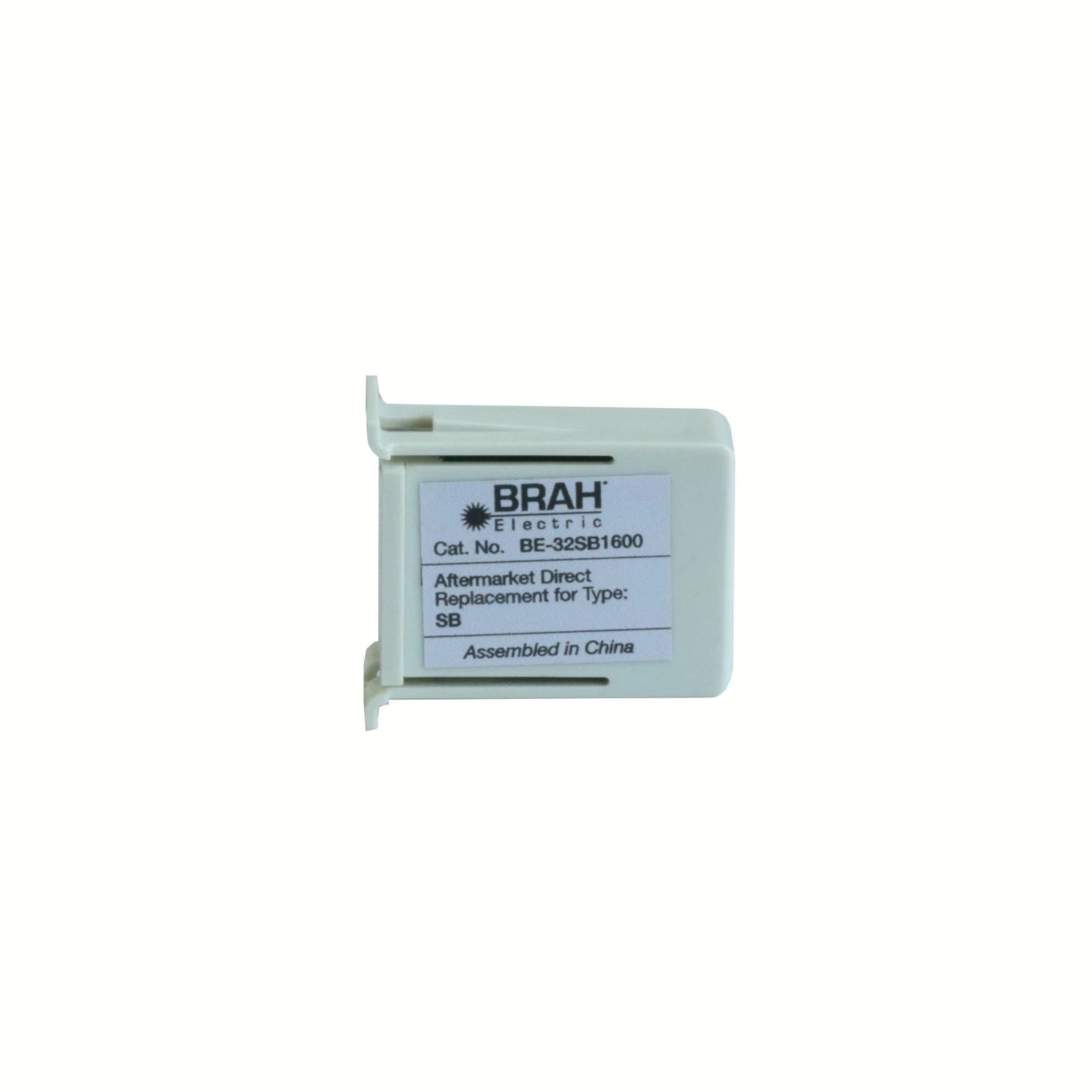

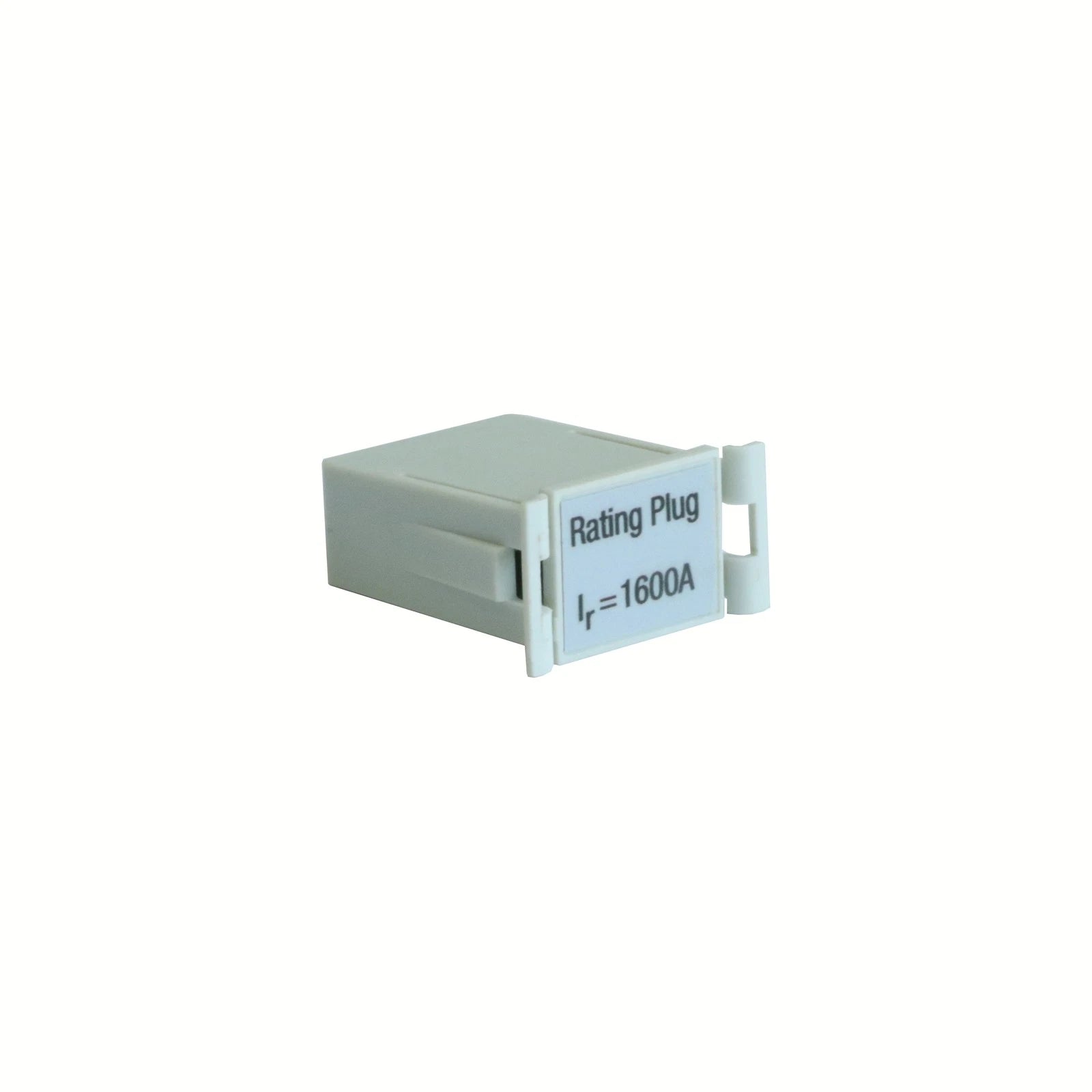

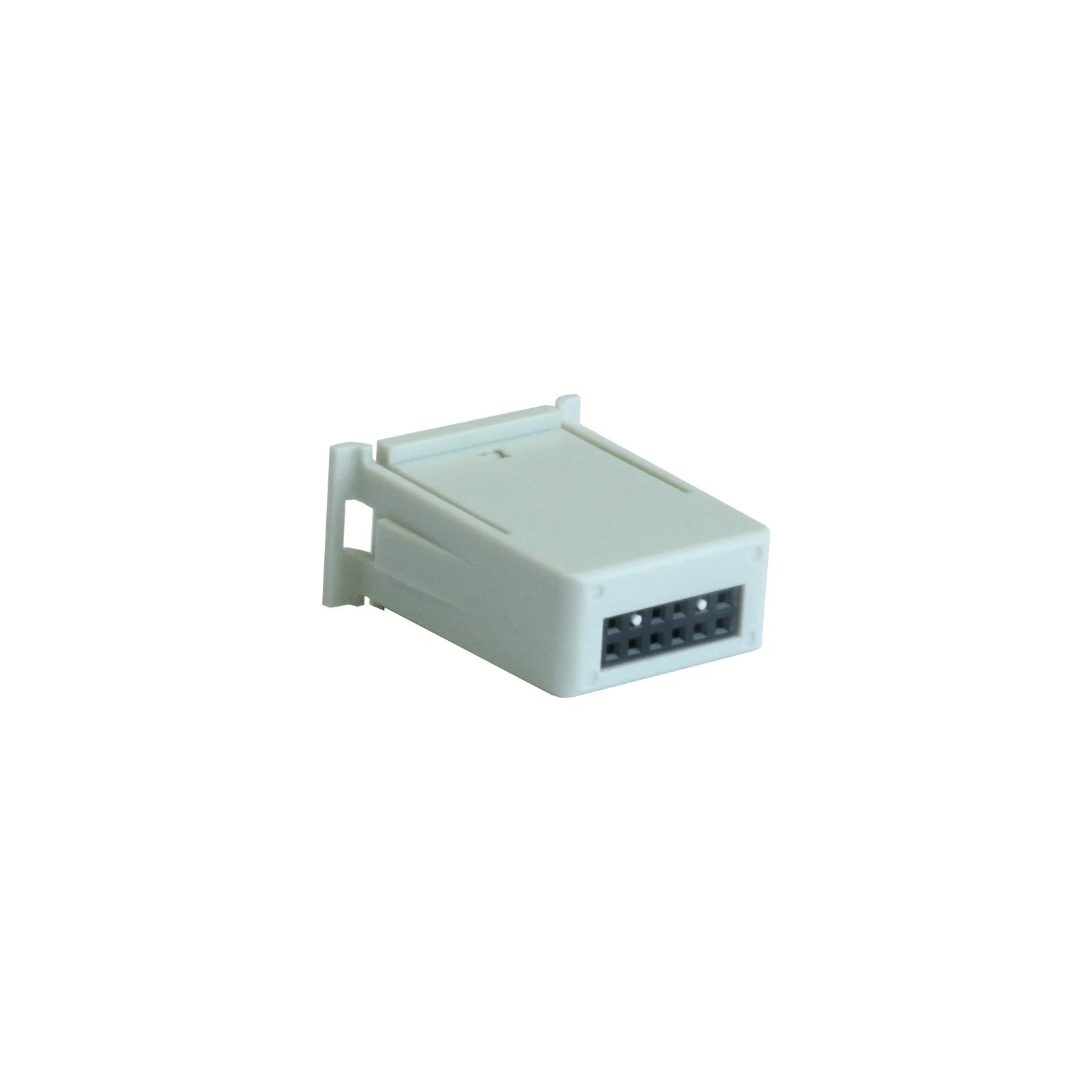

Siemens 32SB1600 Rating Plug 1600A for SB Series Circuit Breakers with 3200A Sensor
- Regular price
- $437.00
- Sale price
- $437.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 32SB1600
Description
The Siemens 32SB1600 rating plug is a precision accessory designed to define the current rating of compatible SB series circuit breakers. Rated at 1600 A, it operates with a 3200 A sensor to ensure accurate trip unit calibration and system protection. This component enables reliable configuration of breaker performance in high-capacity power distribution systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breaker Accessories |
| Part Number | 32SB1600 |
| Subcategory | Rating Plugs |
| Series | SB Series |
| Type | 32SB |
| Rated Current | 1600 A |
| Sensor Rating | 3200 A |
| Compatible Frames | SBA, SBH, SBS |
| Trip Unit Compatibility | SB-EC, TL electronic trip units |
| Function | Current rating configuration |
| Installation Type | Plug-in |
| Application | Industrial power distribution systems |
| Weight | 3.00 lbs (≈ 1.36 kg) |
Information About 32SB1600
The 32SB1600 is part of Siemens’ SB series rating plug range, developed for use with insulated case circuit breakers in demanding industrial environments. It is a fixed rating plug element that establishes the continuous current rating of breakers equipped with SB-EC or TL electronic trip units. Designed for compatibility with SBA, SBH, and SBS frame breakers, it supports systems utilizing 3200 A frame sizes. This component is widely applied in heavy-duty electrical distribution systems where precise current control and protection coordination are essential.
Key Features:
- Current Rating Configuration: Sets breaker trip unit rating to 1600 A for accurate protection
- Sensor Compatibility: Designed for use with 3200 A sensor systems
- SB Series Integration: Compatible with Siemens SBA, SBH, and SBS breaker frames
- Electronic Trip Unit Support: Works with SB-EC and TL solid-state trip units
- Fixed Rating Design: Provides stable and consistent current calibration
- Plug-In Installation: Allows easy replacement and configuration without system modification
- High-Capacity Application: Suitable for industrial power distribution environments
The 32SB1600 delivers the reliability and precision required for accurate current setting and protection configuration in high-capacity circuit breaker systems.
