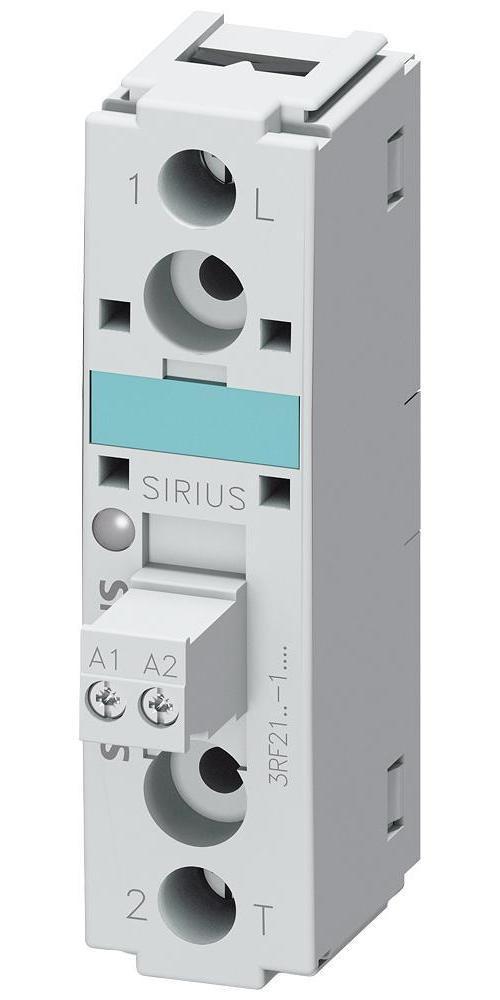

Siemens 3RF2190-1AA06 Solid State Relay 90A Zero Switching DIN Rail
- Regular price
- $147.00
- Sale price
- $147.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3RF2190-1AA06
Description
The Siemens 3RF2190-1AA06 is a semiconductor solid state relay designed for reliable switching of AC loads in industrial applications. Engineered for zero-cross switching, it ensures minimal electrical noise and extended load life. This relay is ideal for automation systems requiring precise, maintenance-free control of high-current circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Industrial Automation |
| Part Number | 3RF2190-1AA06 |
| Subcategory | Solid State Relays |
| Series | SIRIUS 3RF2 |
| Rated Current | 90 A |
| Control Voltage | 48 to 460 V AC |
| Operating Frequency | 50/60 Hz |
| Contact Form | 1NO (1 Form A) |
| Number of Poles | 1 |
| Switching Type | Zero Voltage Switching |
| Mounting Type | DIN Rail / Panel Mount |
| Terminal Type | Screw Terminal |
| Protection Rating | IP20 |
| Operating Temperature | -25 to 60 °C |
| Dimensions | 22.5 mm W x 48 mm D x 85 mm H |
| Weight | 0.35 kg |
Information About 3RF2190-1AA06
The 3RF2190-1AA06 is part of the Siemens SIRIUS 3RF2 series of solid-state contactors engineered for silent and maintenance-free operation. It features an integrated heat sink within an insulated enclosure, allowing efficient thermal management in compact control panels. Designed for single-phase applications, it supports a wide control voltage range from 48 to 460 V AC, making it compatible with various industrial control systems. The device is typically used in heating control, motor switching, and resistive load applications where high switching frequency and durability are required.
Key Features:
- High Current Capacity: Handles loads up to 90 A for demanding industrial applications
- Zero Voltage Switching: Minimizes inrush current and electrical noise during switching
- Solid-State Design: Eliminates mechanical wear for long operational life
- Integrated Heat Sink: Provides efficient thermal dissipation without external cooling
- Wide Control Voltage Range: Supports 48 to 460 V AC control input flexibility
- Compact Narrow Housing: 22.5 mm width allows space-saving panel installation
- DIN Rail Mounting: Integrated mounting foot for quick installation on standard rails
- LED Status Indicator: Enables visual monitoring of relay operation
- Screw Terminal Connections: Ensures secure and reliable wiring
- IP20 Protection Rating: Suitable for installation in enclosed control cabinets
- Single-Pole Configuration: 1NO contact form for simple switching applications
The 3RF2190-1AA06 delivers the reliability and precision required for high-current industrial switching and automation control systems.
