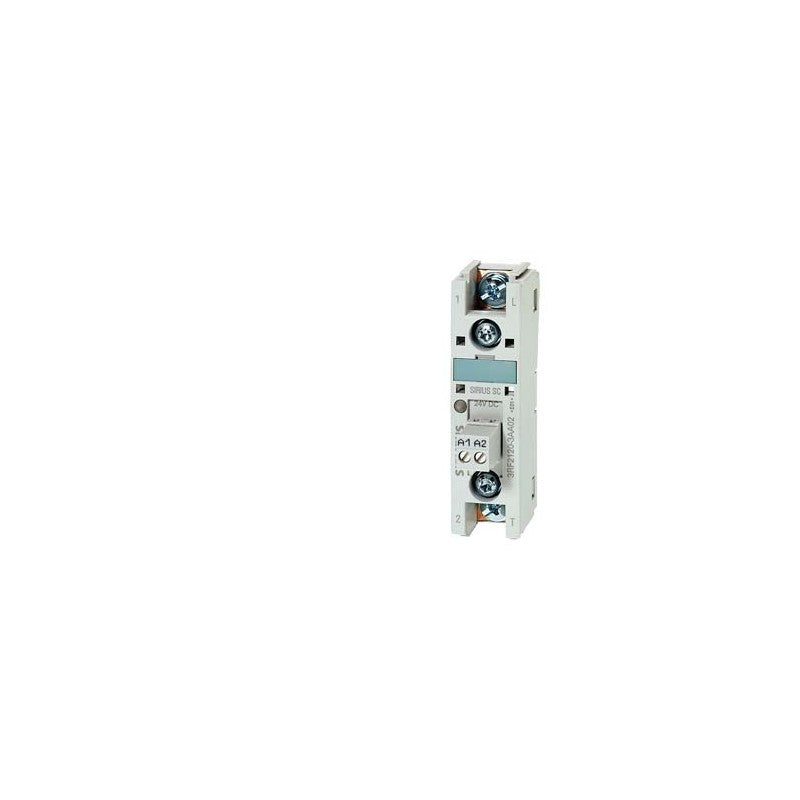

Siemens 3RF2190-3AA06 90A Solid State Relay 24V DC Control 600V AC
- Regular price
- $69.00
- Sale price
- $69.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3RF2190-3AA06
Description
The Siemens 3RF2190-3AA06 is a semiconductor solid-state relay designed for switching high-current single-phase loads with high efficiency and durability. It supports up to 90 A operation with zero-point switching, minimizing electrical stress and noise. This relay is commonly used in industrial heating, automation, and power control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Industrial Automation |
| Part Number | 3RF2190-3AA06 |
| Subcategory | Solid State Relays |
| Series | SIRIUS 3RF2 |
| Rated Current | 90 A |
| Load Voltage Range | 48 to 600 V AC |
| Control Voltage | 24 V DC |
| Operating Frequency | 50 to 60 Hz |
| Switching Type | Zero-Point Switching |
| Number of Poles | 1 |
| Contact Configuration | 1NO |
| Mounting Type | Panel Mount (Cooling Surface) |
| Connection Type | Ring Cable Lug |
| Insulation Voltage | 600 V |
| Surge Voltage Resistance | 6 kV |
| Protection Class | IP00 |
| Operating Temperature | -25 to +60 °C |
| Dimensions | 22.5 mm W x 48 mm D x 85 mm H |
| Weight | 0.072 kg |
Information About 3RF2190-3AA06
The 3RF2190-3AA06 is part of the Siemens SIRIUS 3RF2 series, known for compact, high-performance solid-state switching devices. It features a slim 22.5 mm housing and is designed for mounting on external cooling surfaces to optimize thermal performance under heavy loads. The relay operates with a wide load voltage range of 48 to 600 V AC and a 24 V DC control input, ensuring compatibility with modern control systems. Built for industrial environments, it incorporates zero-point switching technology, reducing wear and improving switching reliability in high-frequency applications.
Key Features
- High Load Capacity: Supports up to 90 A for demanding industrial loads
- Zero-Point Switching: Reduces inrush current and electrical interference
- DC Control Input: Operates with 24 V DC control voltage for precise automation control
- Wide Operating Voltage Range: Handles 48 to 600 V AC load voltage
- Slim Compact Design: 22.5 mm width for space-efficient panel installation
- External Heat Dissipation: Designed for mounting on cooling surfaces for thermal management
- Solid-State Technology: No mechanical wear, ensuring long service life
- Ring Cable Terminal Connection: Provides secure and stable electrical connections
- Fast Switching Performance: Suitable for high-speed switching applications
- High Surge Current Resistance: Withstands high inrush currents during operation
- Industrial Compliance: Meets IEC and UL standards for safety and performance
The 3RF2190-3AA06 delivers the reliability and precision required for high-current industrial load switching and control systems.
