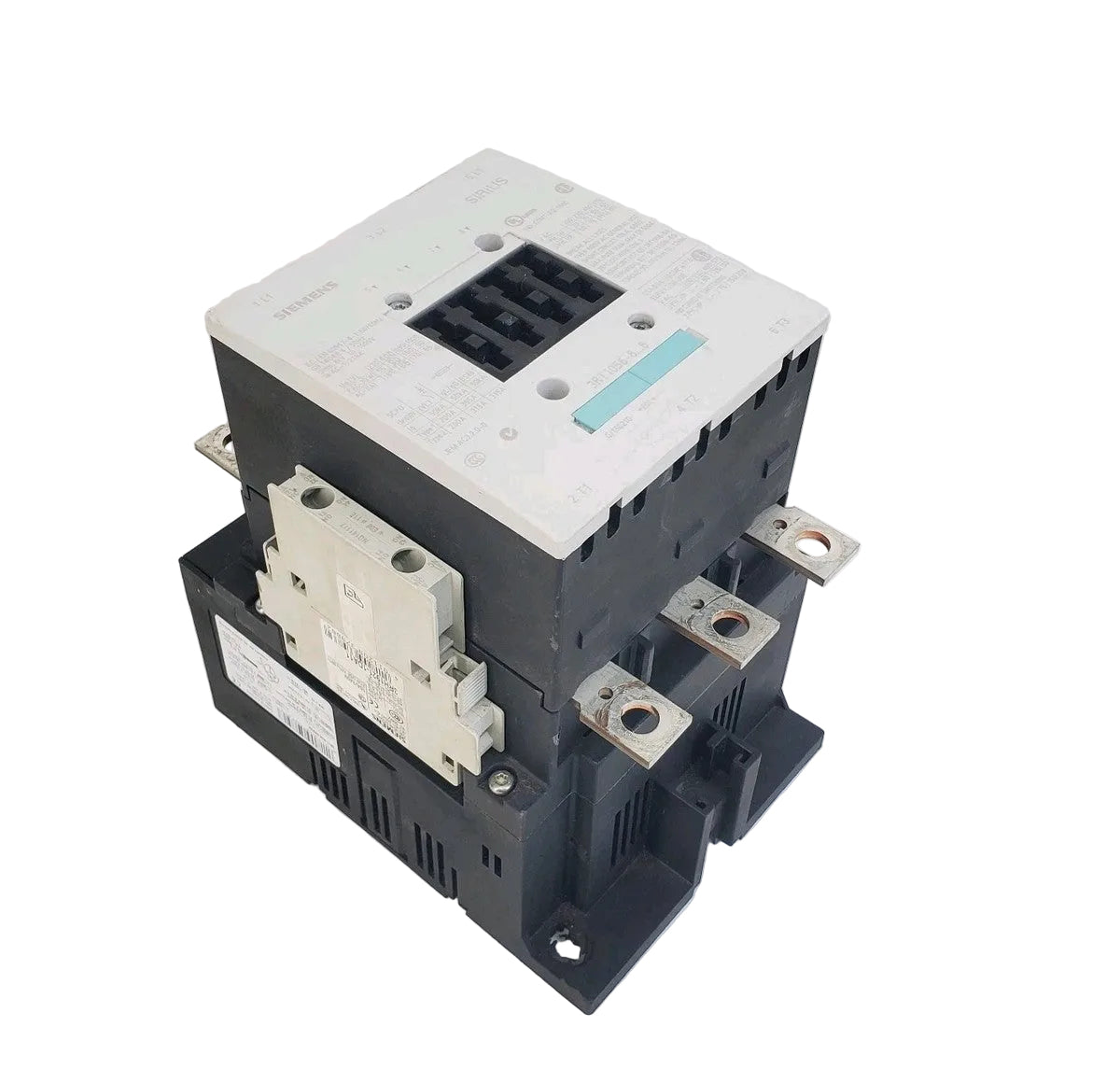

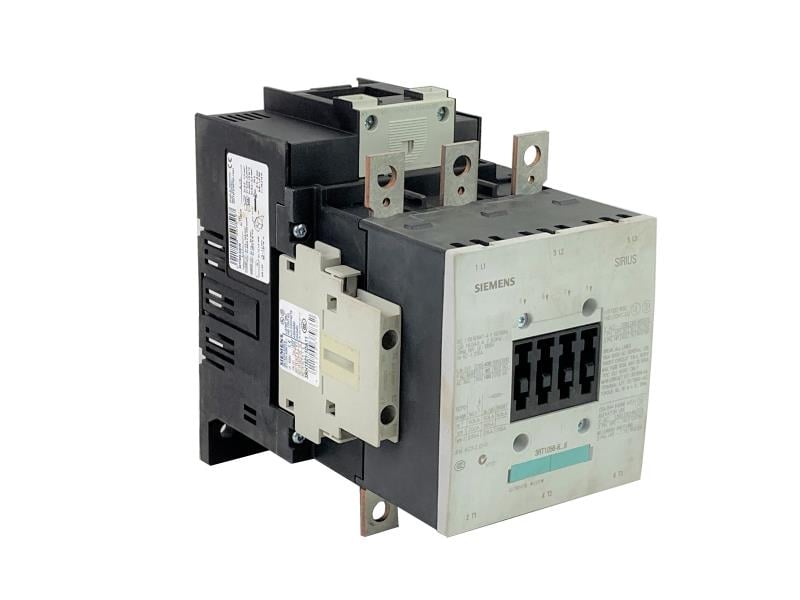

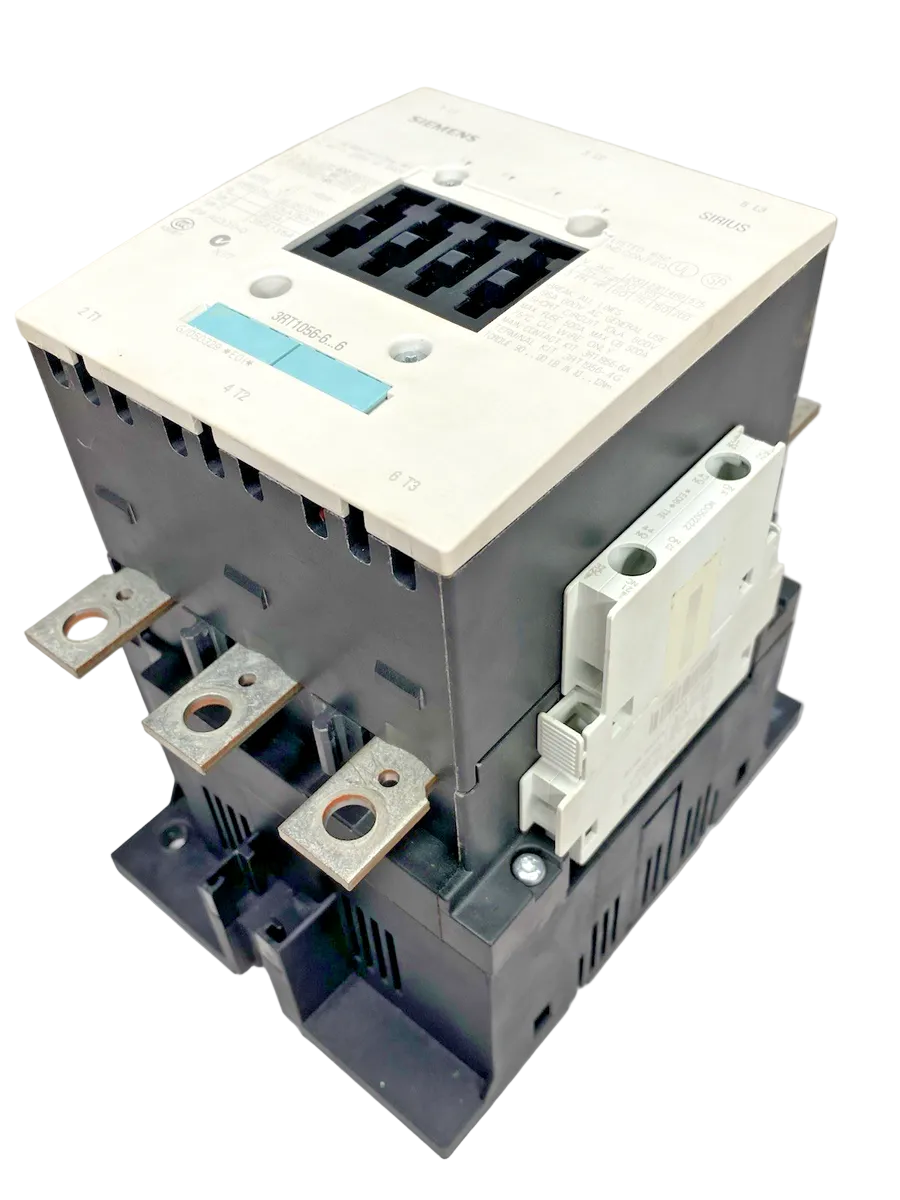

Siemens 3RT1056-6AF36 SIRIUS 185A Power Contactor
- Regular price
- $525.00
- Sale price
- $525.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3RT1056-6AF36
Description
The Siemens 3RT1056-6AF36 SIRIUS Power Contactor is a three-pole industrial switching device designed for controlling high-power electrical loads and motors. It supports an AC-3 rated current of 185 A, a motor rating of 90 kW at 400 V AC, and a control coil voltage of 110–127 V AC/DC.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Industrial Automation |
| Part Number | 3RT1056-6AF36 |
| Subcategory | Power Contactors |
| Product Series | SIRIUS 3RT |
| Product Type | Power Contactor |
| Rated Operational Current (AC-3) | 185 A |
| Motor Rating | 90 kW at 400 V AC |
| Control Supply Voltage | 110–127 V AC/DC |
| Number of Poles | 3 |
| Auxiliary Contacts | 2 NO + 2 NC |
| Main Circuit Connection | Busbar |
| Control/Auxiliary Connection | Screw terminals |
| Frame Size | S6 |
| Weight | 7.43 lb |
Information About 3RT1056-6AF36
The 3RT1056-6AF36 is a Siemens SIRIUS power contactor designed for industrial motor control and power switching applications. It features three main poles and an AC-3/AC-3e rated operational current of 185 A. The contactor supports motors up to 90 kW at 400 V AC and uses a 110–127 V AC/DC control supply. Its configuration includes two normally open and two normally closed auxiliary contacts, with busbar connections for the main circuit and screw terminals for control and auxiliary circuits.
Key Features:
-
Manufacturer: Siemens SIRIUS industrial control equipment.
-
Product Type: Three-pole power contactor for motor switching.
-
Rated Current: 185 A under AC-3 operating conditions.
-
Motor Rating: Up to 90 kW at 400 V AC.
-
Control Voltage: 110–127 V AC/DC.
-
Auxiliary Contacts: Two normally open and two normally closed contacts.
-
Connection Design: Busbar main-circuit connections and screw terminals for control and auxiliary circuits.
-
Frame Size: S6 contactor frame.
The 3RT1056-6AF36 delivers the switching capacity and control functionality required for industrial motor control and power distribution applications.
