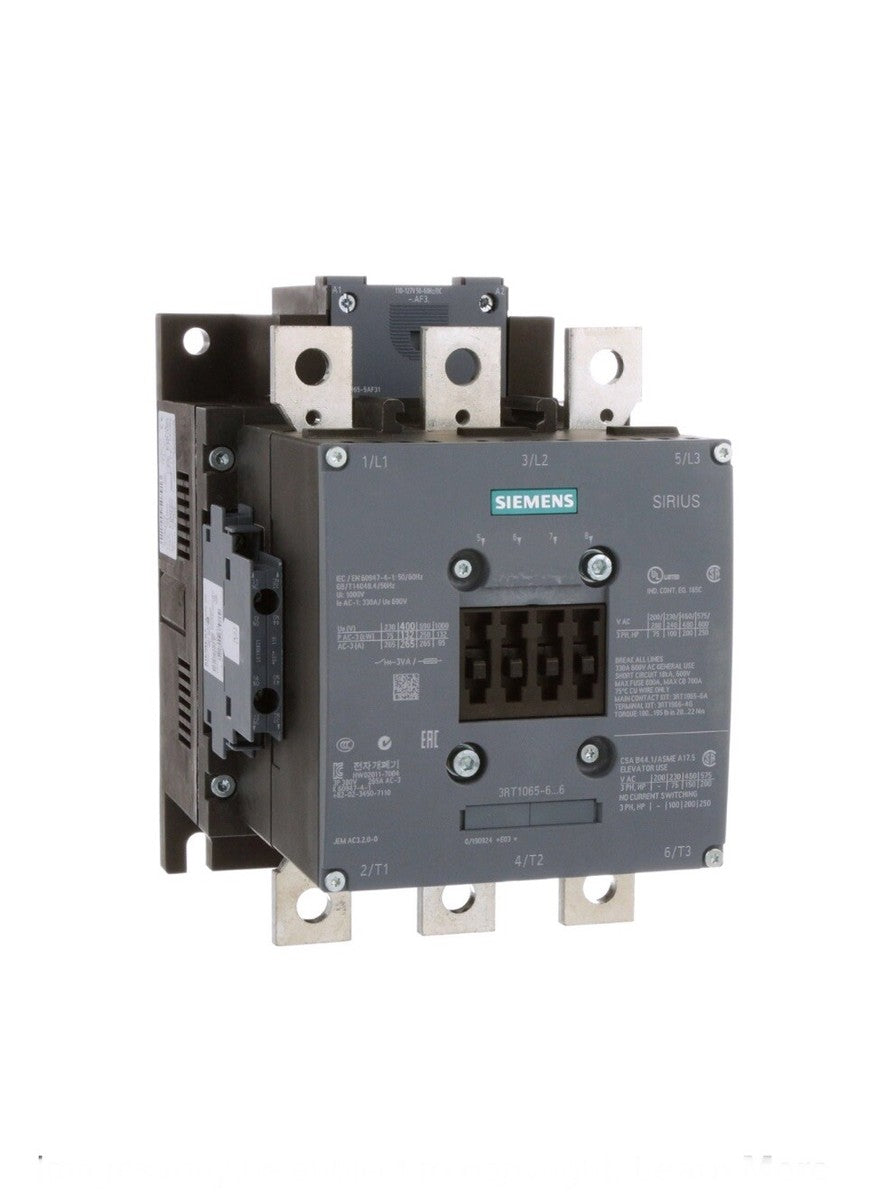

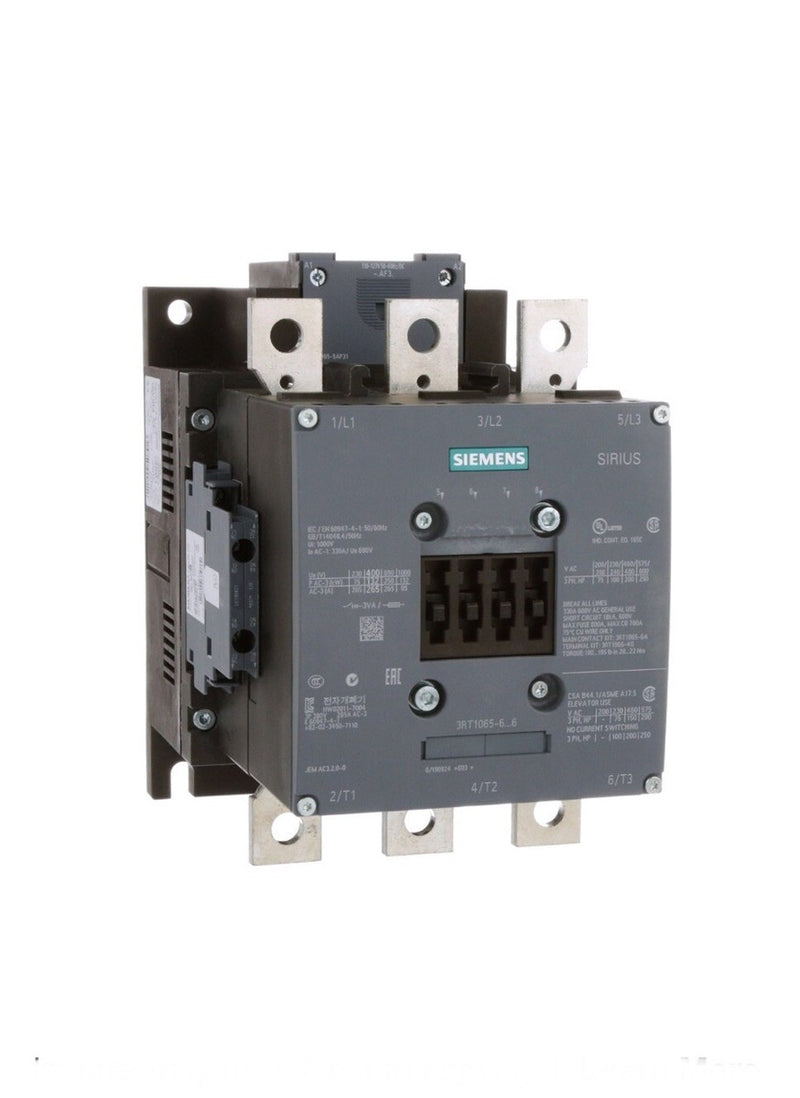

Siemens 3RT1065-6AF36 SIRIUS Contactor 265A 132kW 3 Pole 110-127VDC Coil
- Regular price
- $974.00
- Sale price
- $974.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3RT1065-6AF36
Description
The Siemens 3RT1065-6AF36 is a high-capacity 3-pole power contactor designed for controlling large industrial motors and heavy electrical loads. Rated for 132 kW at 400 VAC, it provides reliable switching performance in demanding AC-3 applications. This contactor features DC coil operation and integrated auxiliary contacts for enhanced control and monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Industrial Automation |
| Part Number | 3RT1065-6AF36 |
| Subcategory | Contactors |
| Series | SIRIUS |
| Number of Poles | 3 |
| Rated Operational Current (AC-3, 400V) | 265 A |
| Rated Power (AC-3, 400V) | 132 kW |
| Rated Power (AC-1, 400V) | 197 kW |
| Rated Power (AC-4, 400V) | 132 kW |
| Control Voltage | 110–127 VDC |
| Max Control Voltage (AC 50/60 Hz) | 127 V |
| Rated Current (In) | 265 A |
| Auxiliary Contacts | 2 NO + 2 NC |
| Connection Type | Busbar / Screw Terminal |
| Mounting Type | Rail / Panel Mount |
| Power Loss (Current Dependent) | 18 W |
| Power Loss (Static) | 7.4 W |
| Frequency | 50/60 Hz |
| Frame Size | S10 |
| Application | Motor Control / Power Switching |
| Weight | 6 lb |
Information About 3RT1065-6AF36
The 3RT1065-6AF36 is part of Siemens’ SIRIUS series of industrial contactors, engineered for high-power motor control and switching applications. It is designed with a robust S10 frame size and supports busbar connections for efficient power distribution. The unit operates with a control voltage range of 110–127 VDC and supports both AC and DC control configurations. It includes integrated auxiliary contacts (2 NO + 2 NC) for signaling and interlocking functions within control circuits. Suitable for series installation, this contactor is widely used in industrial automation systems requiring reliable and high-current switching capabilities.
Key Features:
- High Power Switching Capacity: Rated for 132 kW at 400 VAC for heavy-duty motor control applications.
- 265 Amp Current Rating: Supports high operational current for large industrial loads.
- 3-Pole Contactor Design: Provides efficient three-phase power switching.
- DC Coil Operation: Operates with 110–127 VDC control voltage for flexible control system integration.
- Integrated Auxiliary Contacts: Includes 2 NO and 2 NC contacts for control and monitoring functions.
- Busbar Connection Design: Enables secure and efficient high-current connections.
- SIRIUS S10 Frame Size: Built for durability and performance in demanding industrial environments.
- Low Power Loss Design: Optimized for reduced heat generation and energy efficiency.
The 3RT1065-6AF36 delivers the reliability and precision required for high-power motor control and industrial switching applications.
