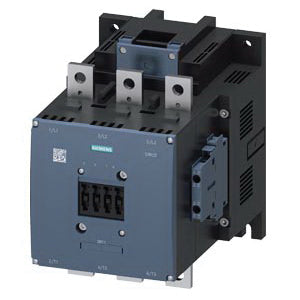

Siemens 3RT1076-6AF36 SIRIUS S12 500A 3-Pole Power Contactor 110-127V AC/DC Coil
- Regular price
- $2,799.00
- Sale price
- $2,799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3RT1076-6AF36
Description
The Siemens 3RT1076-6AF36 is a high-capacity SIRIUS S12 power contactor designed for switching and controlling large electrical loads in industrial systems. With a maximum load current of 500 A and a 110–127 V AC/DC control coil, this 3-pole contactor provides reliable performance for heavy-duty motor and power switching applications. Its robust construction and integrated auxiliary contacts make it suitable for demanding automation and power distribution environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Industrial Automation |
| Part Number | 3RT1076-6AF36 |
| Subcategory | Power Contactors |
| Series | SIRIUS S12 |
| Number of Poles | 3 |
| Rated Current | 500 A |
| Control Coil Voltage | 110–127 V AC/DC |
| Frequency | 50/60 Hz |
| Auxiliary Contacts | 2 NO / 2 NC |
| Maximum Motor Power | Up to 250 kW |
| Terminal Type | Busbar terminals |
| Protection Rating | IP00 / IP20 |
| Operating Temperature Range | −25 °C to +60 °C |
| Mechanical Life | 10,000,000 operating cycles |
| Dimensions | 214 mm (H) × 160 mm (W) × 225 mm (D) |
| Mounting Type | Threaded mounting |
| Weight | Approx. 7 kg |
Information About 3RT1076-6AF36
The 3RT1076-6AF36 is part of the Siemens SIRIUS S12 series of industrial contactors engineered for high-power switching applications. It is designed to control motors and electrical loads in large industrial installations, offering reliable switching capability and long operational life. The contactor features a 110–127 V AC/DC control coil and supports both AC and DC control circuits, providing flexibility for integration in various automation systems. Equipped with busbar terminals and auxiliary contacts, it enables efficient wiring, monitoring, and control within motor control centers and industrial power systems.
Key Features:
- 500 A Rated Load Current: Designed for switching high-power loads in heavy industrial applications.
- 3-Pole Power Contactor: Suitable for three-phase motor control and power distribution switching.
- 110–127 V AC/DC Control Coil: Compatible with both AC and DC control voltage systems.
- SIRIUS S12 Series Design: Engineered for high-performance industrial switching operations.
- Integrated Auxiliary Contacts: Includes 2 NO and 2 NC auxiliary contacts for control and signaling functions.
- Busbar Terminal Connections: Provides secure and efficient power connections for high-current applications.
- High Switching Capacity: Supports motor loads up to approximately 250 kW depending on system configuration.
- Long Mechanical Life: Designed for up to 10 million operating cycles for extended service life.
- Wide Operating Temperature Range: Suitable for operation in industrial environments from −25 °C to +60 °C.
- Industrial Protection Design: Rated IP00/IP20 depending on installation environment.
The 3RT1076-6AF36 delivers the reliability and precision required for heavy-duty motor control, industrial switching, and high-current automation systems.
