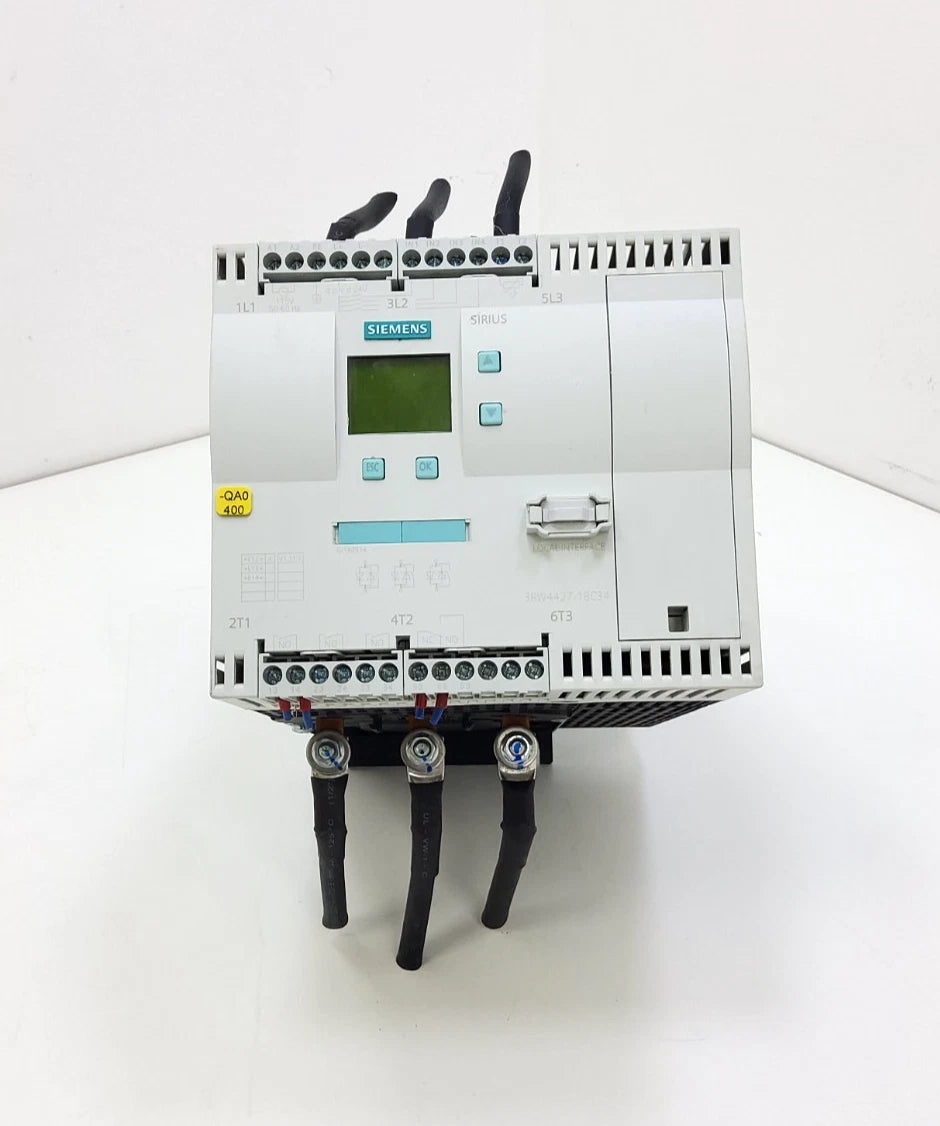

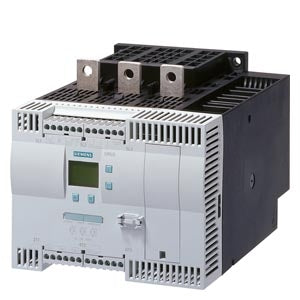

Siemens 3RW4427-1BC34 SIRIUS Soft Starter 82A 60HP 460V Motor Starter with Inside-Delta Support
- Regular price
- $2,392.00
- Sale price
- $2,392.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3RW4427-1BC34
Description
The Siemens 3RW4427-1BC34 is a SIRIUS soft starter designed to provide controlled motor starting and stopping for three-phase industrial motors. It supports standard operation up to 82 A (60 hp) at 460 V and inside-delta configurations up to 142 A (100 hp), reducing mechanical stress and electrical peaks during motor startup. Built for reliable operation in demanding environments, it operates within a 200–460 V AC power range and uses screw terminal connections for secure installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Industrial Automation |
| Part Number | 3RW4427-1BC34 |
| Subcategory | Soft Starters |
| Series | SIRIUS 3RW44 |
| Rated Operational Voltage | 200–460 V AC |
| Control Voltage | 115 V AC |
| Rated Current (Standard) | 82 A |
| Rated Current (Inside-Delta) | 142 A |
| Motor Power (Standard) | 60 hp at 460 V |
| Motor Power (Inside-Delta) | 100 hp at 460 V |
| Number of Phases | 3 Phase |
| Number of Poles | 3 Pole |
| Connection Type | Screw terminals / box terminal |
| Power Supply | 460 V AC |
| Height | 12.37 in |
| Width | 12.21 in |
| Length | 15.44 in |
| Weight | Approx. 11 kg |
Information About 3RW4427-1BC34
The 3RW4427-1BC34 is part of the Siemens SIRIUS 3RW44 series of advanced soft starters used in industrial motor control systems. These devices provide smooth acceleration and deceleration of motors by gradually increasing voltage, which minimizes mechanical wear, electrical stress, and power network disturbances. The unit supports both standard and inside-delta motor connections, allowing higher motor power handling with optimized installation configurations. Designed for integration into industrial automation systems, the soft starter includes monitoring, protection, and diagnostic features to support reliable motor operation in applications such as pumps, conveyors, compressors, and fans.
Key Features:
- SIRIUS 3RW44 Soft Starter Series: Designed for efficient and controlled starting of three-phase industrial motors.
- 82 A Standard Current Rating: Supports motor loads up to 60 hp at 460 V under standard connection.
- Inside-Delta Capability: Allows operation up to 142 A and 100 hp in inside-delta motor configuration.
- 200–460 V AC Operating Range: Suitable for a wide range of industrial motor control applications.
- 115 V AC Control Voltage: Provides reliable control circuit operation for automation systems.
- Reduced Mechanical Stress: Smooth acceleration and deceleration help extend motor and equipment lifespan.
- Integrated Motor Protection: Includes monitoring and protective functions to prevent overload and operational faults.
- Screw Terminal Connections: Ensures secure wiring and straightforward installation in control panels.
- Industrial Automation Integration: Compatible with expansion modules and communication interfaces for network integration.
- Compact Industrial Design: Suitable for mounting in control cabinets and motor control centers.
The 3RW4427-1BC34 delivers the reliability and precision required for controlled motor starting, equipment protection, and efficient operation in industrial drive systems.
