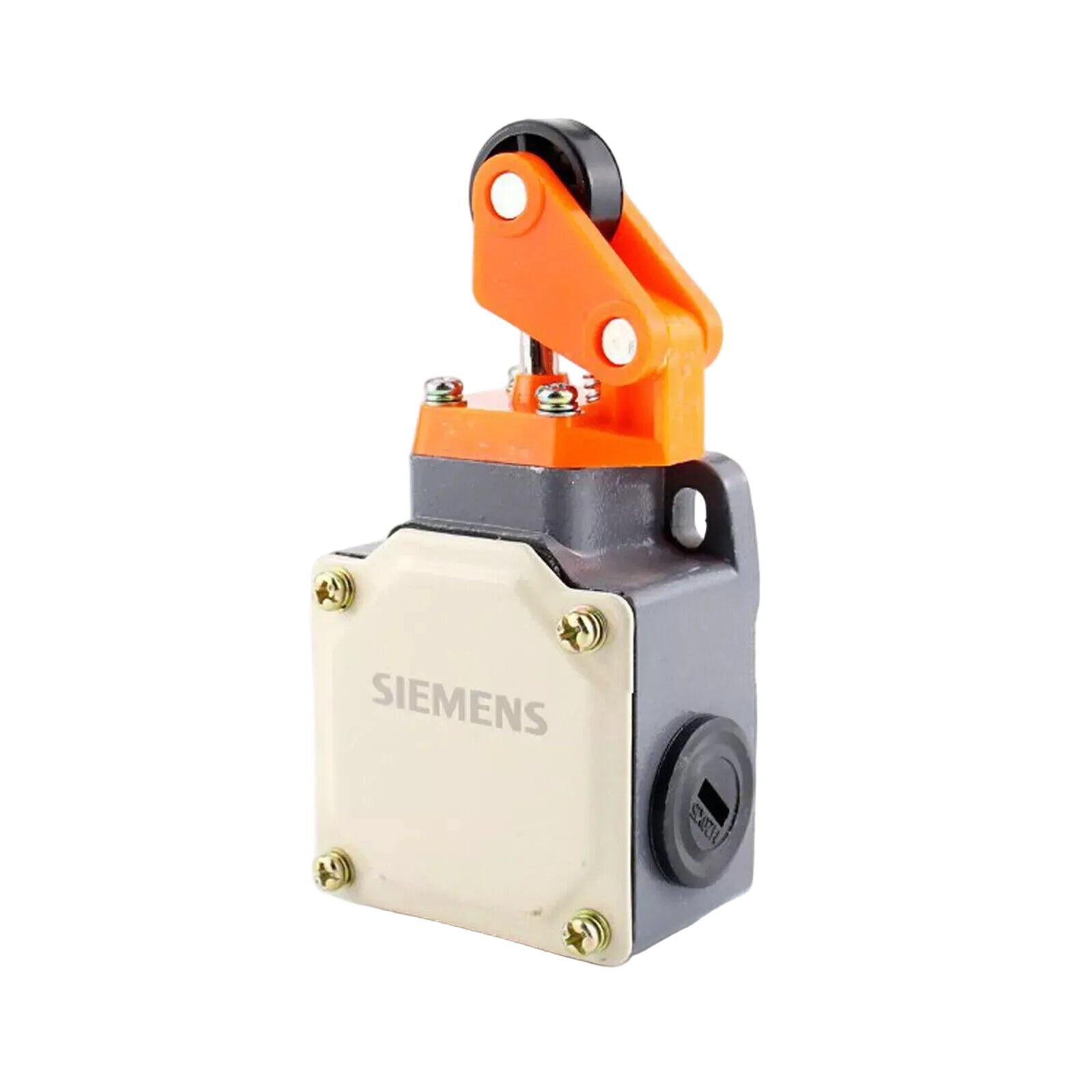

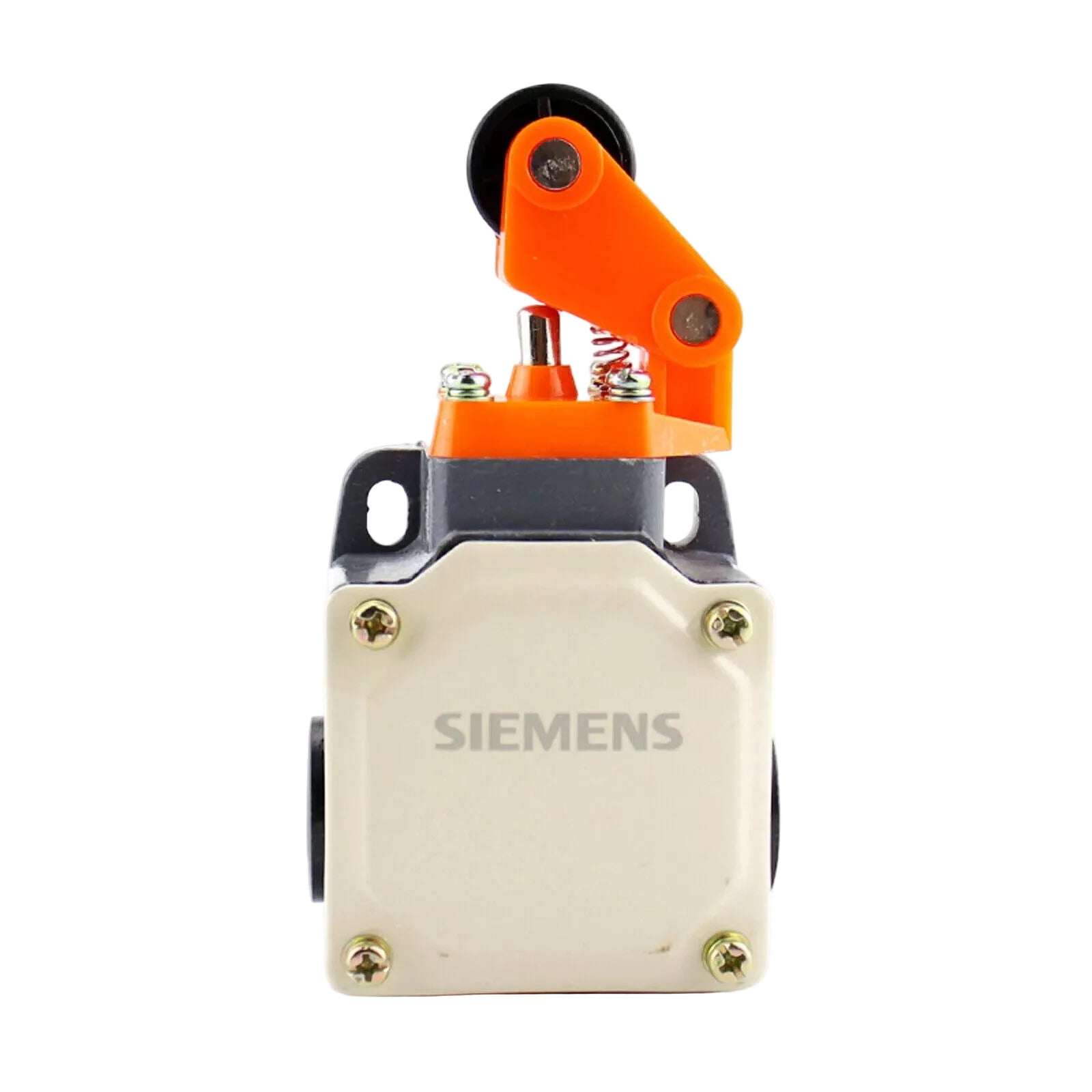

Siemens 3SE3100-1E Roller Lever Metal-Enclosed Limit Switch

Description

The Siemens 3SE3100-1E is a metal-enclosed lever limit switch with a roller lever actuator and snap-action operation. It features one normally open and one normally closed contact, a 10 A thermal current rating, and IP67 protection for industrial position-sensing applications.

Technical Specifications

Information About 3SE3100-1E

The 3SE3100-1E is a closed-type position switch designed to detect the movement or position of industrial machinery components. Its roller lever actuator operates a moving double-break contact mechanism for dependable switching performance. The aluminum die-cast housing provides mechanical protection in demanding installation environments. The switch supports mounting in any position and is suitable for applications requiring reliable limit detection.

Key Features:

• Switch Type: Metal-enclosed lever limit switch.
• Actuator: Roller lever mechanism.
• Contact Configuration: 1 NO + 1 NC, SPDT.
• Switching: Snap-action operation with moving double-break contacts.
• Current Rating: 10 A rated thermal current.
• Voltage Rating: Up to 600 V DC insulation rating.
• Protection: IP67 protection class.
• Housing: Durable aluminum die-cast construction.
• Temperature Range: -40 to +55 °C.
• Replacement: Radwell verified substitute 3SE3100-1E-SUB.

The 3SE3100-1E delivers the reliability and precision required for industrial position monitoring and limit switch applications.
