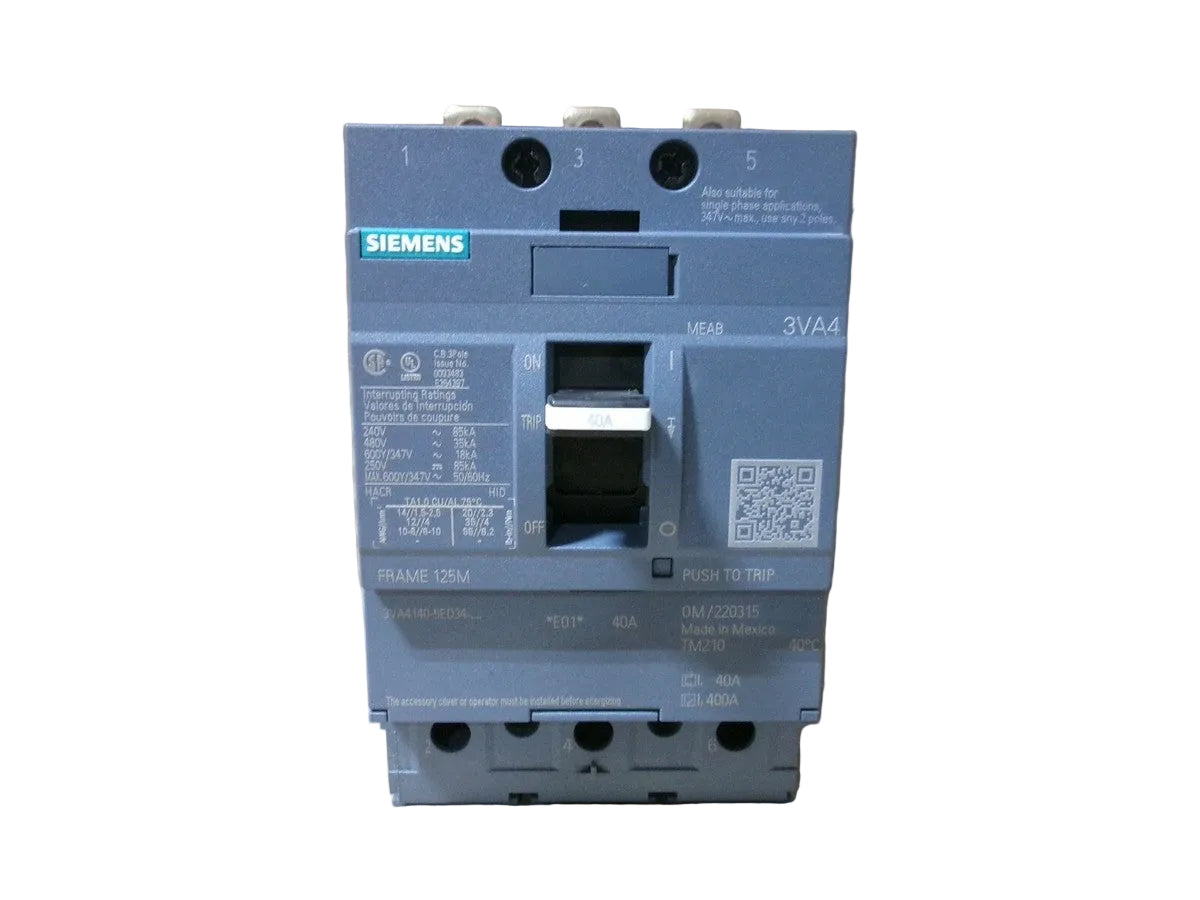

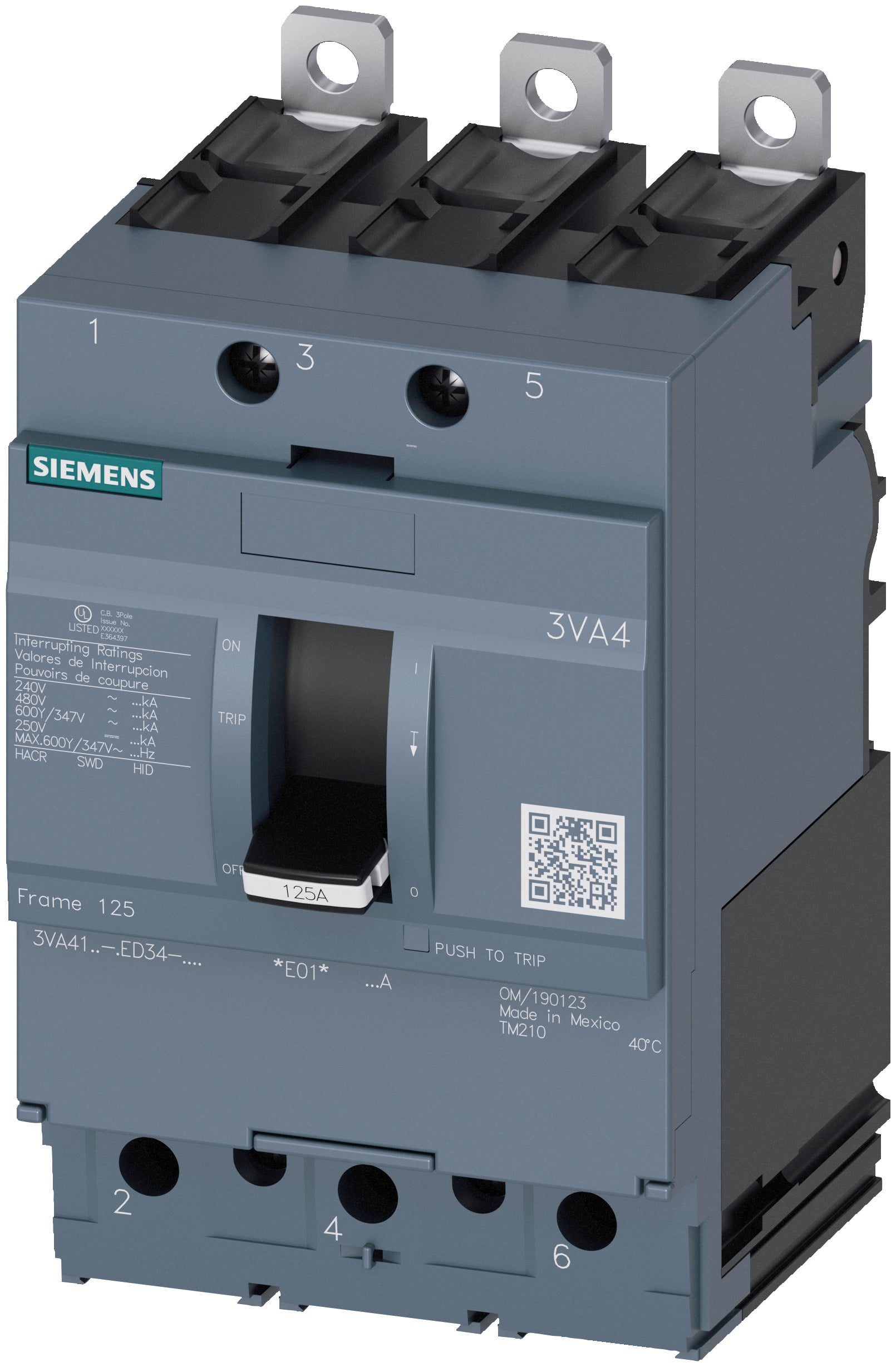

Siemens 3VA4140-5ED34-0AA0 SENTRON 3VA4 Molded Case Circuit Breaker
- Regular price
- $432.00
- Sale price
- $432.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3VA4140-5ED34-0AA0
Description
The Siemens 3VA4140-5ED34-0AA0 is a SENTRON 3VA4 molded case circuit breaker designed for line protection in low-voltage electrical distribution systems. It is a three-pole, 40 ampere breaker equipped with a TM210 thermal-magnetic trip unit and provides a 35 kiloampere interrupting rating at 480 volts.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breaker |
| Part Number | 3VA4140-5ED34-0AA0 |
| Subcategory | Molded Case Circuit Breaker |
| Product Series | SENTRON 3VA4 |
| Product Type | Molded Case Circuit Breaker |
| Frame | 3VA41 UL Frame 125 |
| Number of Poles | 3 |
| Rated Current | 40 A |
| Maximum Frame Current | 125 A |
| Trip Unit | TM210 Thermal-Magnetic |
| Protection Function | Long-Time and Instantaneous |
| Overload Protection Setting | 40 A, Fixed |
| Instantaneous Short-Circuit Setting | 10 × Rated Current |
| Interrupting Capacity at 480 V | 35 kA |
| Interrupting Capacity Class | M |
| Terminal Connection | Lug / Terminal Connection |
| Manufacturer Status | Active Product |
| Weight | 2.00 lbs |
Information About 3VA4140-5ED34-0AA0
The 3VA4140-5ED34-0AA0 is a Siemens SENTRON 3VA4 molded case circuit breaker built on the UL Frame 125 platform for system and line protection. It incorporates a TM210 fixed thermal-magnetic trip unit with a 40 ampere permanently set overload threshold and instantaneous short-circuit protection set at ten times the rated current. The three-pole breaker uses terminal connections and is suitable for integration into compatible low-voltage distribution equipment, switchboards, and panelboard systems. Its M interrupting capacity class provides 35 kiloamperes at 480 volts, while Siemens identifies this exact catalog number as an active product.
Key Features:
- Three-Pole Configuration: Provides simultaneous circuit protection across three poles for low-voltage distribution applications.
- 40 Ampere Rating: Rated continuous operational current is 40 amperes.
- TM210 Trip Unit: Uses a fixed thermal-magnetic overcurrent release with long-time and instantaneous protection functions.
- Fixed Overload Protection: The thermal overload setting is permanently configured at 40 amperes.
- Instantaneous Protection: Short-circuit protection is permanently set at ten times the rated current.
- M Interrupting Class: Provides an interrupting rating of 35 kiloamperes at 480 volts.
- Frame 125 Construction: Uses the SENTRON 3VA41 frame with a maximum frame current rating of 125 amperes.
- UL 489 Applications: Siemens specifies this model for Heating, Air Conditioning, and Refrigeration and High-Intensity-Discharge circuit breaker applications under UL 489.
The 3VA4140-5ED34-0AA0 delivers the reliability and precision required for low-voltage circuit protection in industrial and commercial electrical distribution systems.
