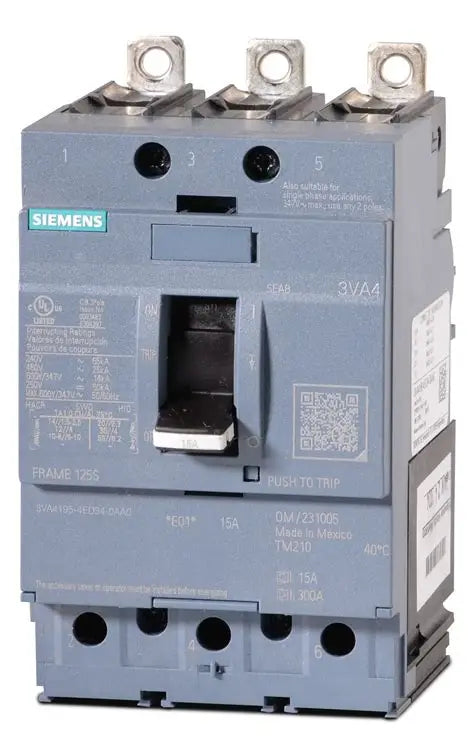

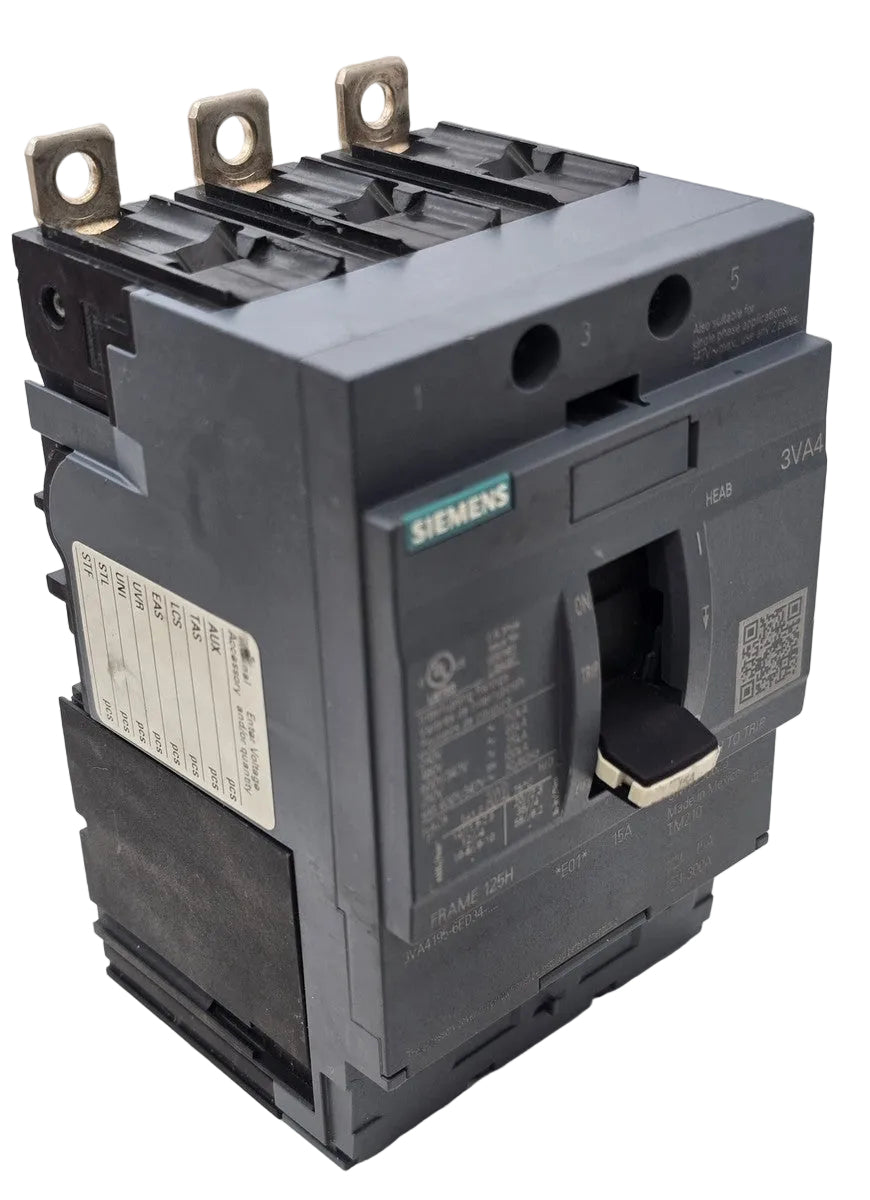

Siemens 3VA4195-6ED34-0AA0 15A 3-Pole Molded Case Circuit Breaker
- Regular price
- $439.00
- Sale price
- $439.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3VA4195-6ED34-0AA0
Description
The Siemens 3VA4195-6ED34-0AA0 is a three-pole 15 A molded case circuit breaker from the 3VA4 series. It uses a TM210 thermal-magnetic trip unit with fixed overload and instantaneous short-circuit protection for low-voltage distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breakers |
| Part Number | 3VA4195-6ED34-0AA0 |
| Subcategory | Molded Case Circuit Breakers |
| Series | 3VA4 |
| Frame | UL Frame 125 |
| Poles | 3 |
| Rated Current | 15 A |
| Rated Voltage | Up to 600 V AC |
| Trip Unit | TM210 |
| Protection Type | Thermal-Magnetic |
| Overload Setting | Ir = 15 A fixed |
| Short-Circuit Setting | Ii = 20 × In |
| Interrupting Rating | 65 kA at 480 V |
| Mounting | Bolt-On |
| Terminal Connection | Load-Side Lug |
| Weight | 0.743 kg |
Information About 3VA4195-6ED34-0AA0BCM-MS/TP
The 3VA4195-6ED34-0AA0 is built on the Siemens 3VA4 UL Frame 125 platform and uses a thermal-magnetic TM210 protection unit. Its line-protection configuration provides a fixed 15 A overload setting and instantaneous short-circuit protection at 20 times the rated current. The breaker has three poles and uses load-side lug terminals with bolt-on mounting. Its Class H interrupting capability is rated at 65 kA at 480 V, with additional ratings specified for higher-voltage applications.
Key Features:
- 3-Pole Configuration: Provides three switched and protected poles for three-phase circuits.
- 15 A Rating: Rated operating current is 15 A at the specified reference temperature.
- TM210 Trip Unit: Uses Siemens TM210 thermal-magnetic overcurrent protection.
- Fixed Overload Protection: Thermal overload protection is fixed at Ir = 15 A.
- Instantaneous Protection: Short-circuit protection is set at Ii = 20 × In.
- 65 kA Interrupt Rating: Provides a 65 kA interrupting rating at 480 V.
- Load-Side Lugs: Uses load-side lug terminals for electrical connection.
- UL Applications: Suitable for applications covered by UL 489, including HACR, HID, and SWD classifications.
The 3VA4195-6ED34-0AA0 delivers the reliability and precision required for low-voltage circuit protection and distribution systems.
