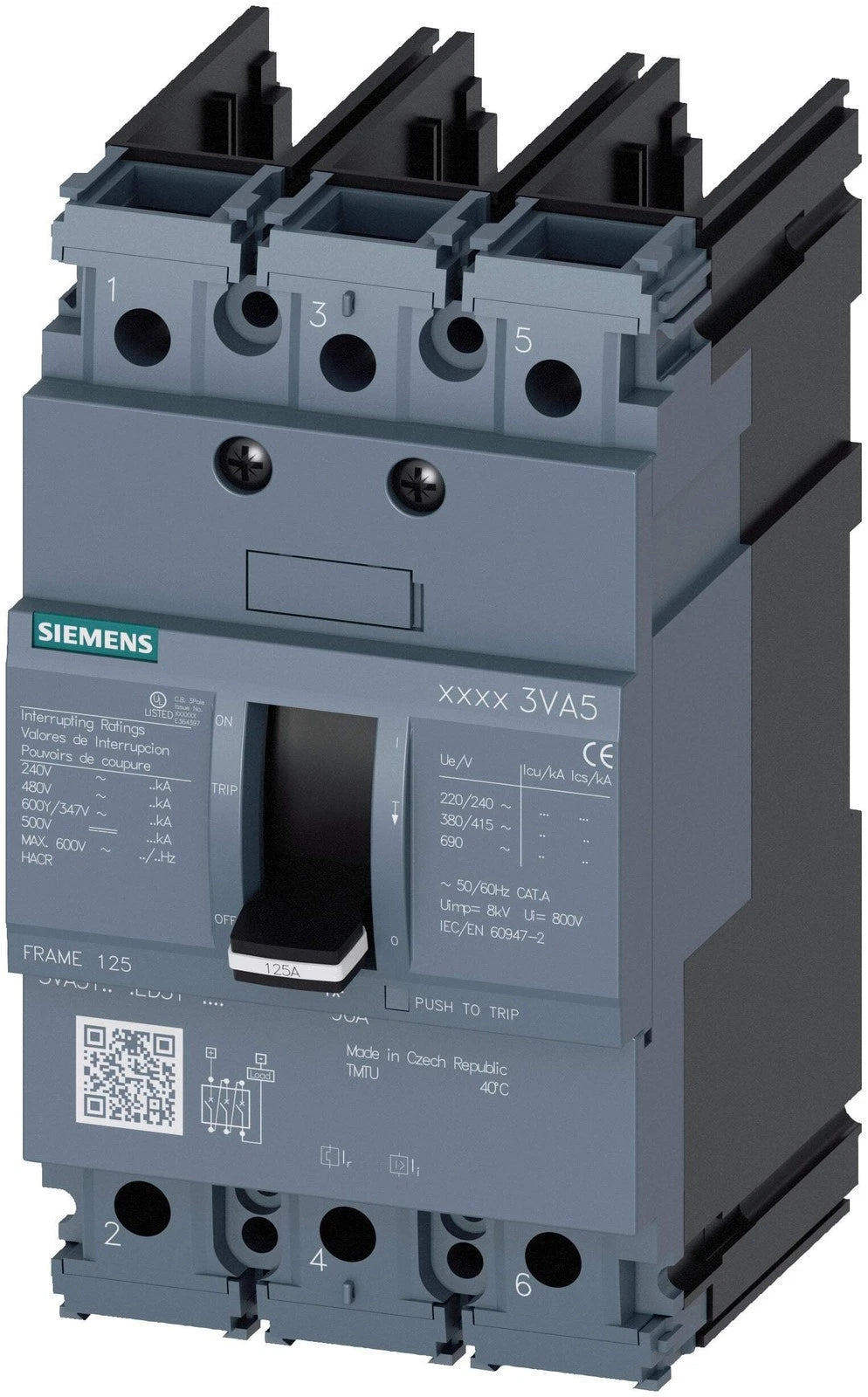

Siemens 3VA5150-6ED31-0AA0 3VA5 Series 50A 3-Pole Thermal-Magnetic Circuit Breaker
- Regular price
- $705.00
- Sale price
- $705.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3VA5150-6ED31-0AA0
Description
The Siemens 3VA5150-6ED31-0AA0 is a high-performance molded case circuit breaker designed to provide dependable overcurrent and short-circuit protection in commercial and industrial electrical panels. This 50-amp, three-pole device utilizes a proven thermal-magnetic trip mechanism to continuously monitor loads and disconnect power safely during fault conditions. By securing critical branch circuits against unexpected electrical surges, this component prevents downstream machinery damage and stabilizes overall facility power distribution.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Electrical Distribution |
| Part Number | 3VA5150-6ED31-0AA0 |
| Subcategory | Circuit Breakers |
| Amperage Rating | 50 A |
| Maximum Voltage Rating | 480 VAC |
| Number of Poles | 3 |
| Frame Size | 125 A Frame |
| Trip Unit Type | Thermal-Magnetic (TM210) |
| Protection Parameters | Fixed Thermal, Fixed Magnetic |
| Interrupting Capacity Class | High (Class H) |
| Phase Connection | 3-Phase (ABC) |
| Certifications | UL 489, CSA C22.2 |
| Weight | 2.2 lbs |
Information About 3VA5150-6ED31-0AA0
The 3VA5150-6ED31-0AA0 is an integral part of the versatile 3VA5 series, engineered within a compact 125-amp frame to optimize spatial efficiency in crowded control panels. It features a reliable TM210 thermal-magnetic trip unit that delivers fixed thermal and fixed magnetic protection, ensuring consistent fault response without requiring complex calibration. Electrical engineers deploy this UL 489 rated breaker to safeguard low-voltage industrial infrastructure that demands robust interrupting capabilities up to 480 VAC. The housing is constructed from high-dielectric thermoset materials that safely contain internal arc flashes, allowing for secure integration into demanding manufacturing environments.
Key Features:
● Thermal-Magnetic Trip Unit: Employs a robust TM210 sensing mechanism to provide consistent, reliable protection against sustained overloads and sudden short circuits.
● High Interrupting Capacity: Delivers exceptional fault clearing performance at standard industrial voltages to safely isolate severe electrical anomalies.
● Compact Frame Size: Utilizes a space-saving 125-amp physical footprint to allow for greater component density within modern switchboards and control panels.
● Three-Pole Configuration: Engineered specifically to regulate and protect three-phase alternating current power within commercial electrical networks.
● Fixed Trip Settings: Features predetermined thermal and magnetic trip thresholds to simplify installation and prevent accidental field miscalibration.
● Arc Isolation Chambers: Incorporates specialized internal arc chutes to extinguish electrical arcing rapidly and prevent phase-to-phase flashovers during a trip event.
● Modular Architecture: Supports seamless integration with an extensive range of internal accessories, including auxiliary switches and shunt trips.
The 3VA5150-6ED31-0AA0 delivers the reliability and precision required for secure power distribution and effective fault prevention in industrial switchgear.
