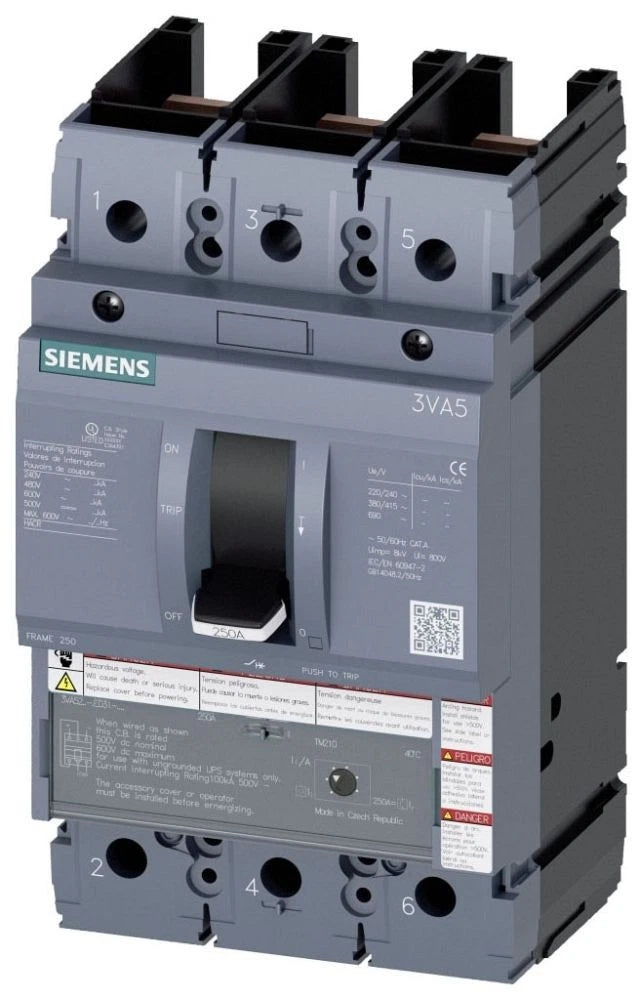

Siemens 3VA5220-5EC31-0AA0 200A 3-Pole 3VA5 Molded Case Circuit Breaker TM230
- Regular price
- $1,787.00
- Sale price
- $1,787.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3VA5220-5EC31-0AA0
Description
The Siemens 3VA5220-5EC31-0AA0 is a 3VA5 series molded case circuit breaker designed for reliable protection of electrical systems in industrial and commercial applications. It features a 200A rating with a thermal-magnetic trip unit, providing both overload and short-circuit protection. This 3-pole breaker supports a wide range of AC and DC voltages, ensuring flexible system integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Electrical Distribution |
| Part Number | 3VA5220-5EC31-0AA0 |
| Subcategory | Molded Case Circuit Breakers |
| Series | 3VA5 |
| Frame Size | 3VA52 |
| Poles | 3 |
| Amperage Rating | 200 A |
| Voltage Rating | Up to 600 VAC / 750 VDC |
| Interrupt Rating | 35 kA @ 480V, 18 kA @ 600V |
| Trip Unit Type | Thermal-Magnetic (TM230) |
| Trip Function | LI (Long-Time, Instantaneous) |
| Trip Adjustability | Fixed Ir / Adjustable Ii |
| Frequency | 50/60 Hz |
| Mounting Type | Panel Mount (Fixed) |
| Protection Class | IP40 |
| Operating Temperature | -25 °C to +70 °C |
| Standards | UL 489, IEC 60947-2, CSA C22.2 |
| Dimensions (W x H x D) | 4.1 x 7.3 x 4.2 in |
| Weight | Approx. 2.2 kg |
Information About 3VA5220-5EC31-0AA0
The 3VA5220-5EC31-0AA0 is part of the Siemens 3VA5 UL series, engineered for advanced circuit protection with compact design and modular expandability. It incorporates a TM230 trip unit with fixed long-time protection and adjustable instantaneous settings, allowing precise response to fault conditions. The breaker is built on the 3VA52 frame with medium (Class M) breaking capacity, suitable for demanding distribution systems. Designed for panelboard and switchboard installation, it offers compatibility with Siemens P1, P2, and P3 systems while supporting a wide range of optional accessories for customization.
Key Features:
- Molded Case Circuit Breaker: Provides reliable circuit protection for AC and DC systems
- 3-Pole Configuration: Designed for three-phase electrical distribution
- 200 Amp Rating: Suitable for medium to high power applications
- Thermal-Magnetic Trip Unit: Combines overload and short-circuit protection
- TM230 Trip Technology: Fixed long-time (Ir) and adjustable instantaneous (Ii) settings
- Medium Breaking Capacity: 35 kA at 480V and 18 kA at 600V
- Wide Voltage Compatibility: Supports multiple AC and DC voltage ratings up to 750 VDC
- 3VA5 Series Design: Compact, modular, and easy to integrate
- Panel Mount Installation: Designed for use in panelboards and switchboards
- Accessory Compatibility: Supports shunt trip, auxiliary switch, undervoltage release, and more
- HACR Rated: Suitable for heating, air conditioning, and refrigeration applications
- Reverse Feed Capability: Allows flexible installation orientation
- Without Lugs: Provides customizable connection options
The 3VA5220-5EC31-0AA0 delivers the reliability and precision required for advanced circuit protection in industrial and commercial power distribution systems.
