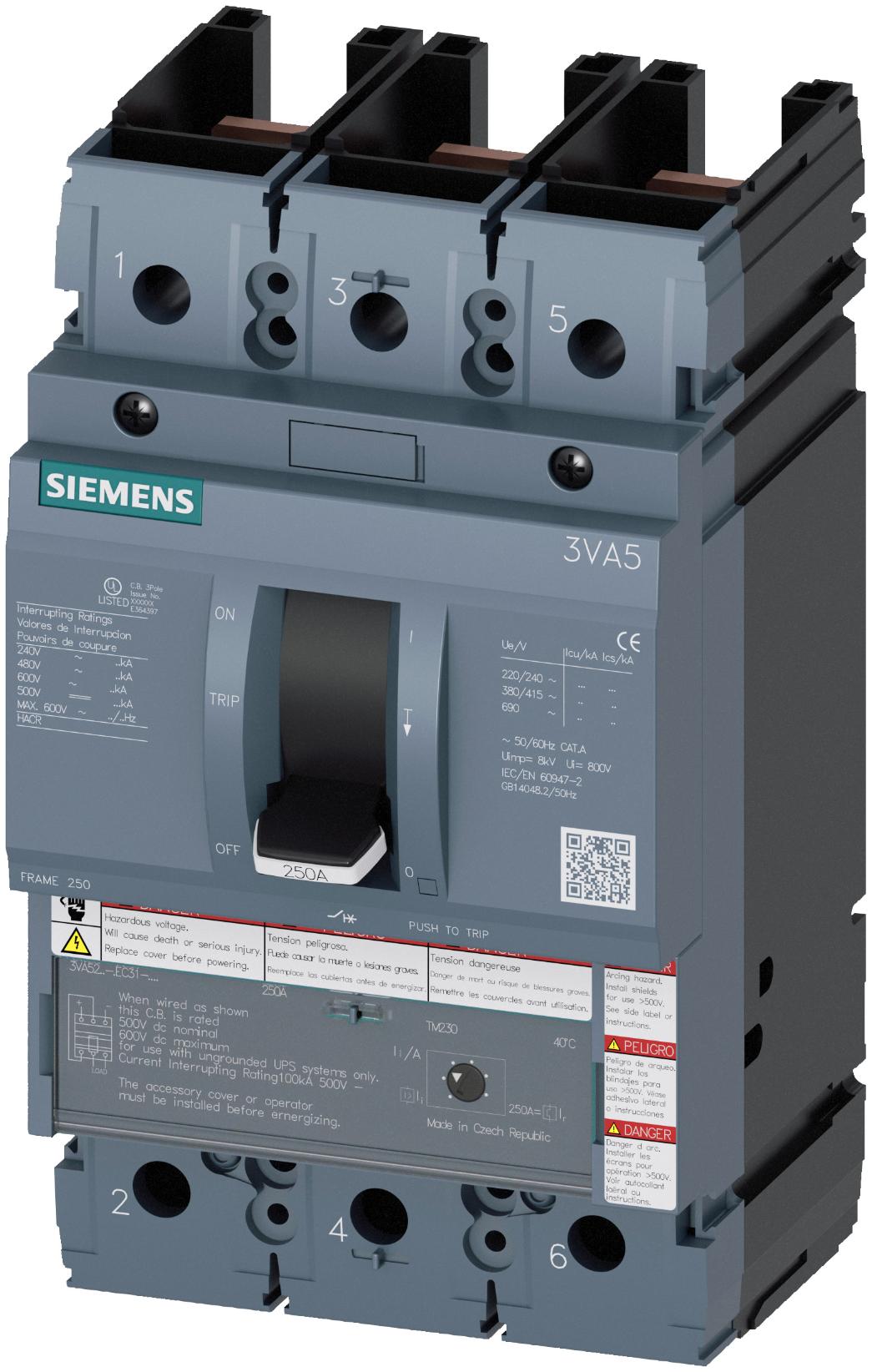

Siemens 3VA5220-6EC31-0AA0 Molded Case Circuit Breaker 200A 3-Pole 600V TM230
- Regular price
- $1,159.00
- Sale price
- $1,159.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3VA5220-6EC31-0AA0
Description
The Siemens 3VA5220-6EC31-0AA0 is a molded case circuit breaker engineered for dependable overcurrent protection in low-voltage power distribution systems. Siemens 3VA5220-6EC31-0AA0 features a thermal-magnetic trip unit and a 200A rating, ensuring accurate response to overload and short-circuit conditions. It is designed for industrial and commercial applications requiring consistent protection and high interrupting performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breaker |
| Part Number | 3VA5220-6EC31-0AA0 |
| Subcategory | Molded Case Circuit Breaker |
| Series | Sentron 3VA5 |
| Frame Size | UL Frame 250 |
| Amperage Rating | 200 A |
| Voltage Rating | 600 VAC / 750 VDC |
| Number of Poles | 3 |
| Phase | 3 Phase |
| Trip Type | Thermal Magnetic (TM230) |
| Protection Functions | Long-Time and Instantaneous |
| Interrupt Rating | 65 kAIC at 480 V |
| Connection Type | Feed-Thru |
| Frequency Rating | 50/60 Hz |
| Temperature Rating | -25°C to 70°C |
| Certifications | UL Listed, HACR Rated |
| Application | Industrial, HVAC, Power Distribution |
| Weight | 2 lb |
Information About 3VA5220-6EC31-0AA0
The 3VA5220-6EC31-0AA0 is part of the Siemens Sentron 3VA5 series, built on a UL Frame 250 platform for enhanced durability and operational stability. It incorporates a TM230 thermal-magnetic trip unit that provides fixed long-time and instantaneous protection for reliable circuit interruption. This breaker supports both AC and DC applications with voltage ratings up to 600 VAC and 750 VDC, making it suitable for diverse electrical systems. Its robust construction and HACR compliance make it ideal for HVAC equipment, industrial panels, and distribution systems requiring high interrupting capacity.
Key Features:
- Thermal-Magnetic Trip Unit: Ensures precise overload and instantaneous short-circuit protection.
- 200 Amp Rating: Designed for medium-capacity industrial and commercial circuits.
- High Interrupt Capacity: Rated at 65 kAIC at 480V for reliable fault clearing.
- 3VA5 Frame Design: UL Frame 250 construction provides durability and stability.
- Wide Voltage Compatibility: Supports up to 600 VAC and 750 VDC applications.
- Three-Pole Configuration: Suitable for balanced three-phase power systems.
- HACR Rated: Approved for heating, air conditioning, and refrigeration equipment.
- Feed-Thru Connection: Allows flexible installation in panelboards and switchgear.
The 3VA5220-6EC31-0AA0 delivers the reliability and precision required for safe and efficient protection of industrial and commercial electrical distribution systems.
