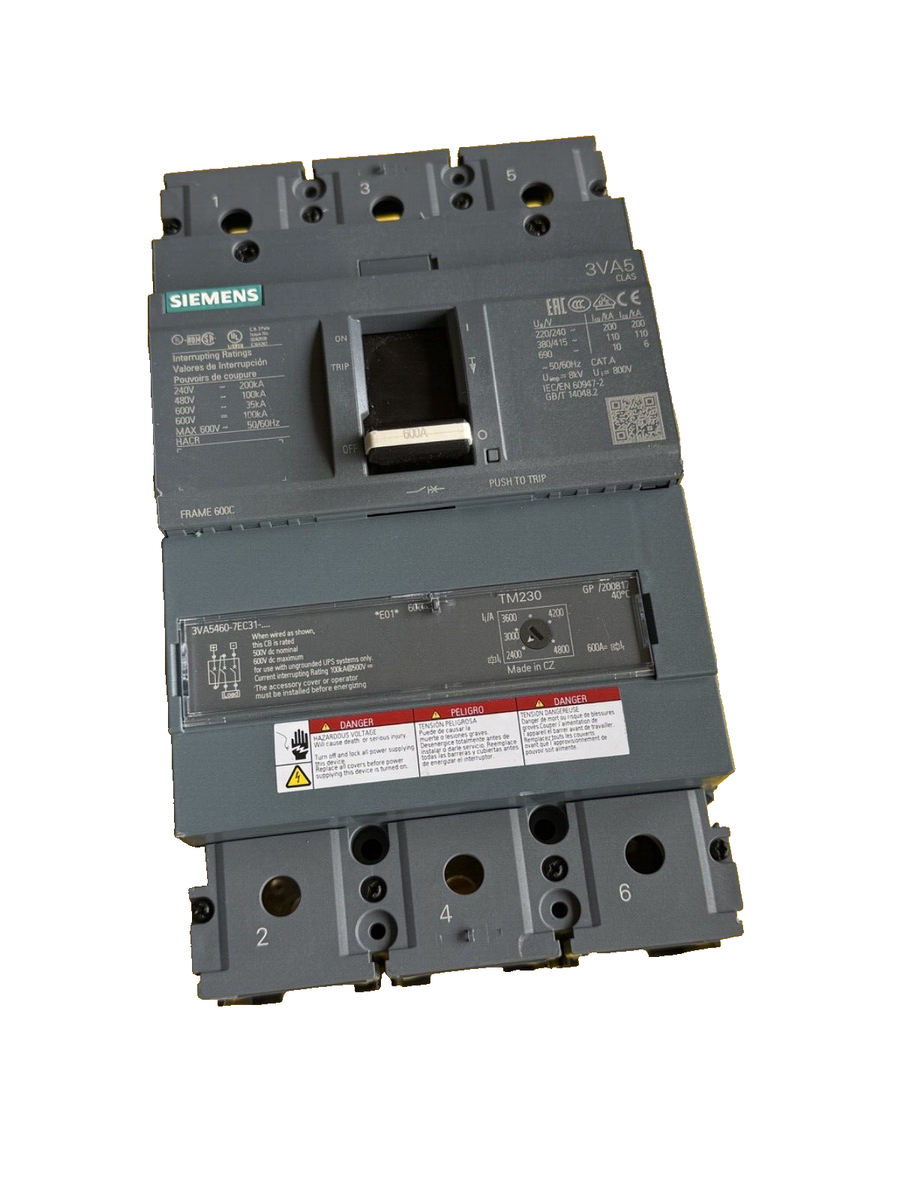

Siemens 3VA5460-6EC31-0AA0 600A 3-Pole SENTRON 3VA5 Molded Case Circuit Breaker
- Regular price
- $6,199.00
- Sale price
- $6,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3VA5460-6EC31-0AA0
Description
The Siemens 3VA5460-6EC31-0AA0 is a three-pole SENTRON 3VA5 molded case circuit breaker rated at 600 A. It uses a TM230 thermal-magnetic trip unit and provides Class H interrupting capability rated at 65 kA at 480 V for low-voltage distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breakers |
| Part Number | 3VA5460-6EC31-0AA0 |
| Subcategory | Molded Case Circuit Breakers |
| Series | SENTRON 3VA5 |
| Frame | UL Frame 600 |
| Poles | 3 |
| Rated Current | 600 A |
| Maximum AC Voltage | 600 V AC |
| Maximum DC Voltage | 500 V DC |
| Trip Unit | TM230 |
| Protection Function | LI |
| Overload Protection | Ir = 600 A fixed |
| Instantaneous Protection | Ii = 4–8 × In |
| Interrupting Class | Class H |
| Interrupting Rating | 65 kA at 480 V |
| Rated Insulation Voltage | 800 V |
| Weight | 4.742 kg |
Information About 3VA5460-6EC31-0AA0BCM-MS/TP
The 3VA5460-6EC31-0AA0 belongs to the Siemens SENTRON 3VA molded case circuit breaker family and uses the UL Frame 600 platform. Its TM230 trip unit provides LI protection with a fixed 600 A overload setting and adjustable instantaneous short-circuit protection from 4 to 8 times the rated current. The breaker supports up to 600 V AC and 500 V DC operational voltage. Its three-pole configuration is intended for protection and switching within compatible low-voltage distribution equipment.
Key Features:
- SENTRON 3VA5 Series: Part of Siemens' 3VA molded case circuit breaker family.
- Current Rating: Provides a continuous current rating of 600 A.
- Three-Pole Design: Provides protection and switching for three-phase circuits.
- TM230 Trip Unit: Uses Siemens thermal-magnetic protection technology.
- LI Protection: Provides long-time and instantaneous overcurrent protection.
- Adjustable Short-Circuit Protection: Instantaneous protection is adjustable from 4–8 × In.
- Class H Rating: Provides a 65 kA interrupting rating at 480 V.
- Voltage Capability: Supports up to 600 V AC and 500 V DC operational voltage.
The 3VA5460-6EC31-0AA0 delivers the reliability and precision required for high-current low-voltage distribution and circuit protection systems.
