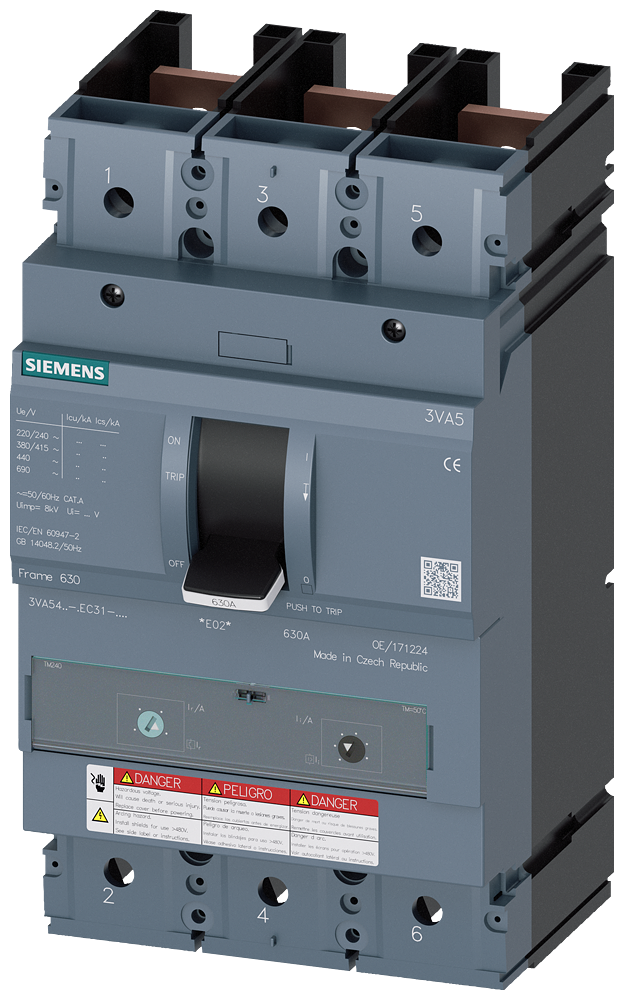

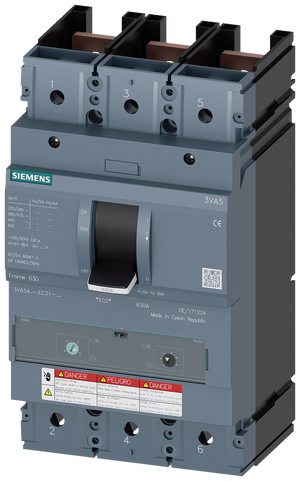

Siemens 3VA5460-7EC31-0AA0 Sentron 3VA5 Circuit Breaker 600A 3-Pole 600VAC TM230
- Regular price
- $3,999.00
- Sale price
- $3,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3VA5460-7EC31-0AA0
Description
The Siemens 3VA5460-7EC31-0AA0 is a molded case circuit breaker designed for high-capacity electrical distribution and protection in industrial systems. Siemens 3VA5460-7EC31-0AA0 features a thermal-magnetic trip unit that ensures accurate response to overload and short-circuit conditions. It is engineered to deliver dependable performance in applications requiring up to 600A protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breaker |
| Part Number | 3VA5460-7EC31-0AA0 |
| Subcategory | Molded Case Circuit Breaker |
| Series | Sentron 3VA5 |
| Frame Size | 600 A frame |
| Amperage Rating | 600 A |
| Number of Poles | 3 |
| Voltage Rating | 600 VAC |
| Rated Insulation Voltage (Ui) | 800 V |
| Trip Unit | TM230 Thermal Magnetic (LI) |
| Overload Protection (Ir) | 600 A fixed |
| Instantaneous Trip (Ii) | 2400–4800 A adjustable |
| Interrupt Rating | 100 kA @ 480V / 35 kA @ 600V / 200 kA @ 240V |
| Temperature Range | -25°C to 70°C |
| Standards | UL 489 |
| Application Rating | HACR rated |
| Weight | 10.4 lb |
Information About 3VA5460-7EC31-0AA0
The 3VA5460-7EC31-0AA0 is part of the Siemens Sentron 3VA5 series, built for advanced low-voltage power distribution systems. It incorporates a TM230 thermal-magnetic trip unit that provides fixed long-time and adjustable instantaneous protection. With a rated insulation voltage of 800V and operational voltage up to 600 VAC, it supports a wide range of industrial applications. Designed to meet UL 489 standards, this breaker is HACR rated and suitable for heating, air conditioning, and refrigeration systems, ensuring reliable integration into modern electrical infrastructure.
Key Features:
- High Current Capacity: Rated at 600A for demanding industrial and commercial power systems.
- Thermal-Magnetic Trip Unit: TM230 trip unit provides long-time and instantaneous protection functions.
- High Breaking Capacity: Up to 100 kA at 480V and 200 kA at 240V for effective fault interruption.
- Three-Pole Configuration: Ensures balanced protection in three-phase electrical installations.
- Wide Voltage Support: Operates up to 600 VAC with 800V insulation rating.
- HACR Rated: Suitable for HVAC and refrigeration system protection.
- Adjustable Instantaneous Trip: Short-circuit protection adjustable between 2400–4800A.
- UL 489 Certified: Meets stringent safety and performance standards for molded case circuit breakers.
The 3VA5460-7EC31-0AA0 delivers the reliability and precision required for high-performance circuit protection in industrial power distribution systems.
