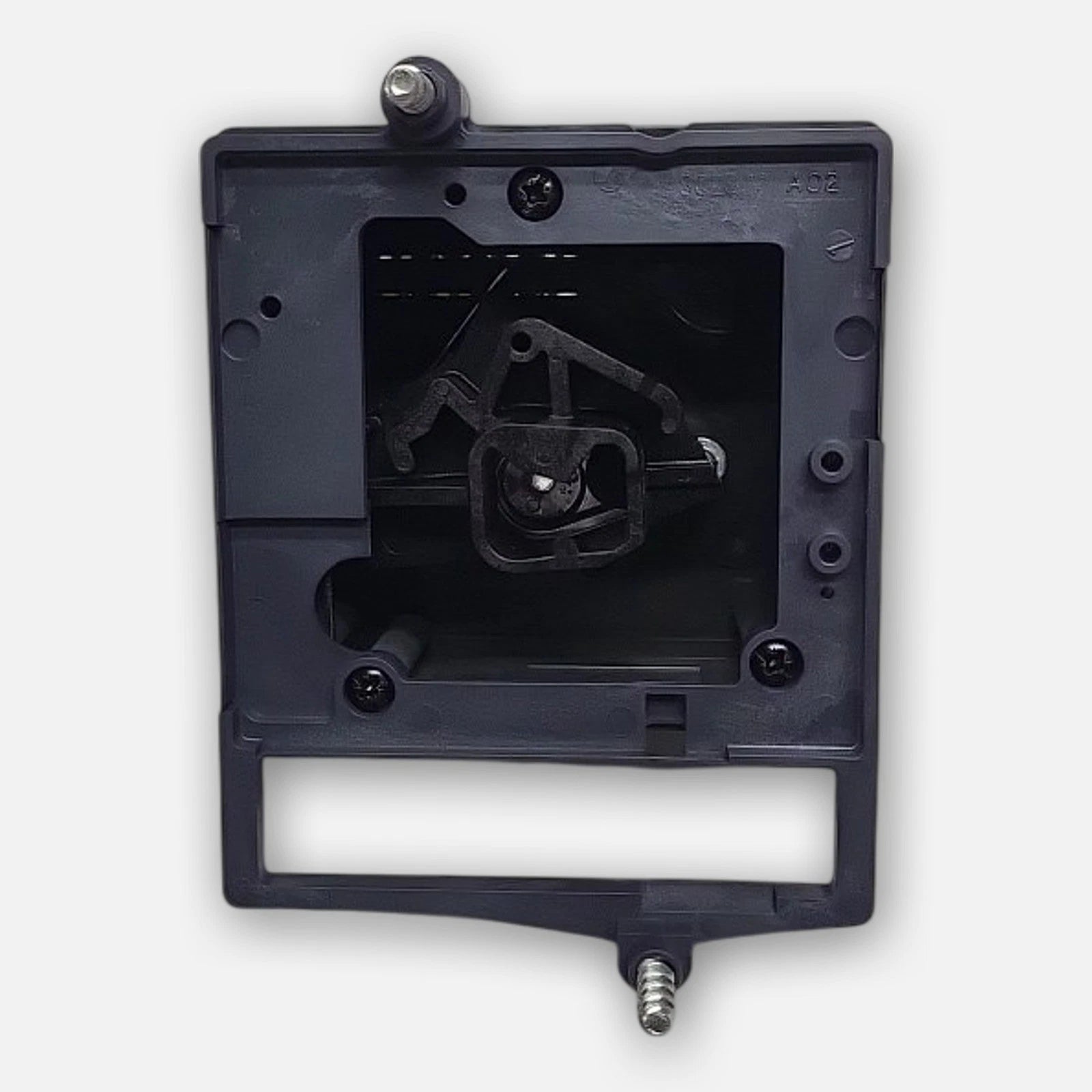

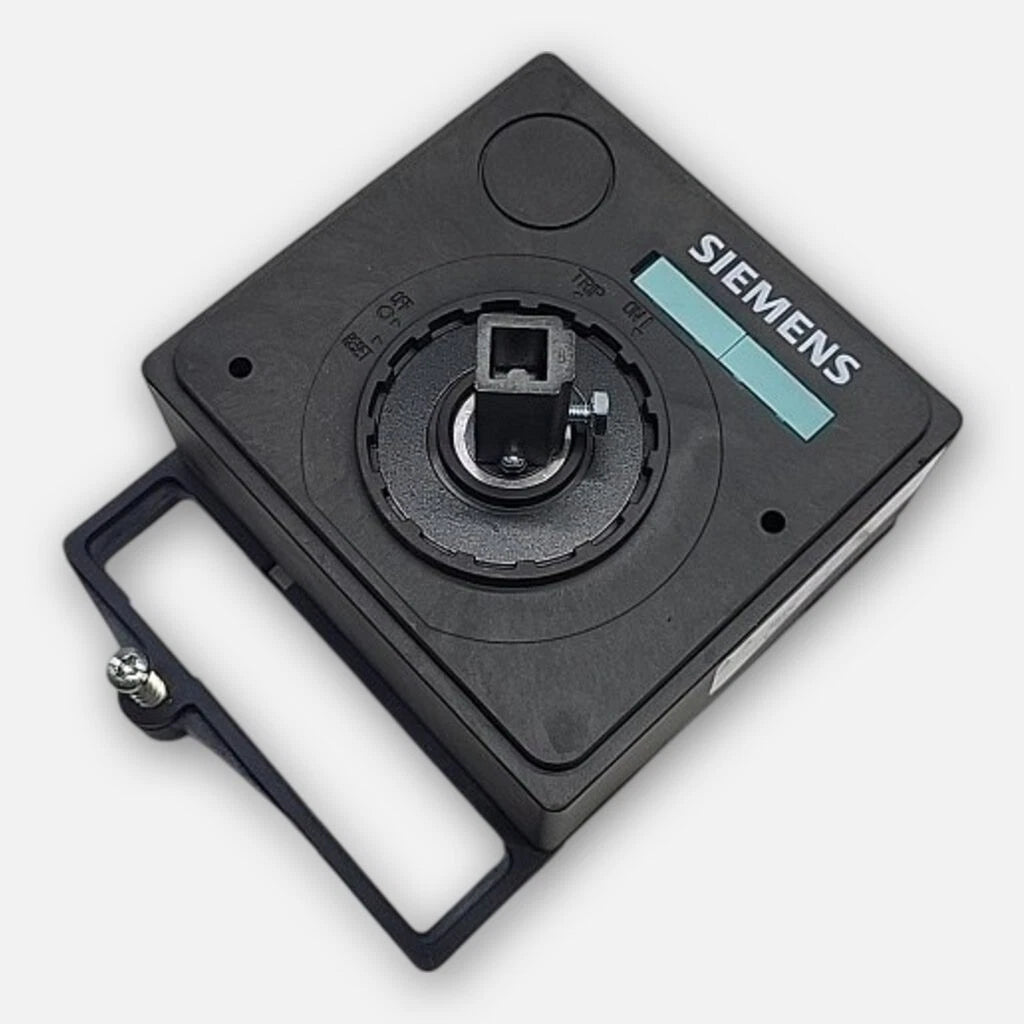

Siemens 3VL9300-3HF01 Door-Coupling Rotary Operating Mechanism
- Regular price
- $585.00
- Sale price
- $585.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3VL9300-3HF01
Description
The Siemens 3VL9300-3HF01 is a door-coupling rotary operating mechanism designed for Siemens VL150XUL, VL150UL, and VL250UL molded-case circuit breakers. It provides external rotary operation through an enclosure door and includes a black handle with a light-gray masking plate for door-mounted installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breaker |
| Part Number | 3VL9300-3HF01 |
| Subcategory | Circuit Breaker Accessory |
| Product Series | SENTRON VL |
| Product Type | Door-Coupling Rotary Operating Mechanism |
| Compatible Models | VL150XUL, VL150UL, VL250UL |
| Compatible Frames | CG, DG, FG |
| Installation | Door-mounted |
| Operating Design | 8UC6 |
| Handle Color | Black |
| Masking Plate Color | Light Gray |
| Application | External circuit breaker operation through enclosure doors |
| Net Weight | 0.9 kg |
Information About 3VL9300-3HF01
The 3VL9300-3HF01 is a SENTRON accessory for VL-series molded-case circuit breakers in CG, DG, and FG frame configurations. It is intended for installation in cabinet doors and uses an 8UC6-design operating handle with a door-coupling rotary mechanism. The assembly is compatible with VL150XUL, VL150UL, and VL250UL circuit breakers and is designed for external mechanical operation of the breaker. The unit has a black handle, light-gray masking plate, and a net weight of approximately 0.9 kg.
Key Features:
- Door-Coupling Mechanism: Provides rotary operation of a compatible circuit breaker through an enclosure door.
- SENTRON Series: Designed as an accessory for Siemens SENTRON VL molded-case circuit breakers.
- Compatible Frames: Suitable for VL150XUL, VL150UL, and VL250UL circuit breaker frames.
- 8UC6 Handle Design: Uses an 8UC6-design external operating handle for door-mounted operation.
- Black Handle: Includes a black rotary operating handle for external breaker control.
- Light-Gray Masking Plate: Includes a light-gray masking plate for the door-mounted mechanism.
- Door Installation: Configured for complete installation in cabinet or equipment doors.
- Replacement Status: Manufacturer-discontinued part intended for replacement applications.
The 3VL9300-3HF01 delivers the reliability and precision required for external mechanical operation of compatible molded-case circuit breakers.
