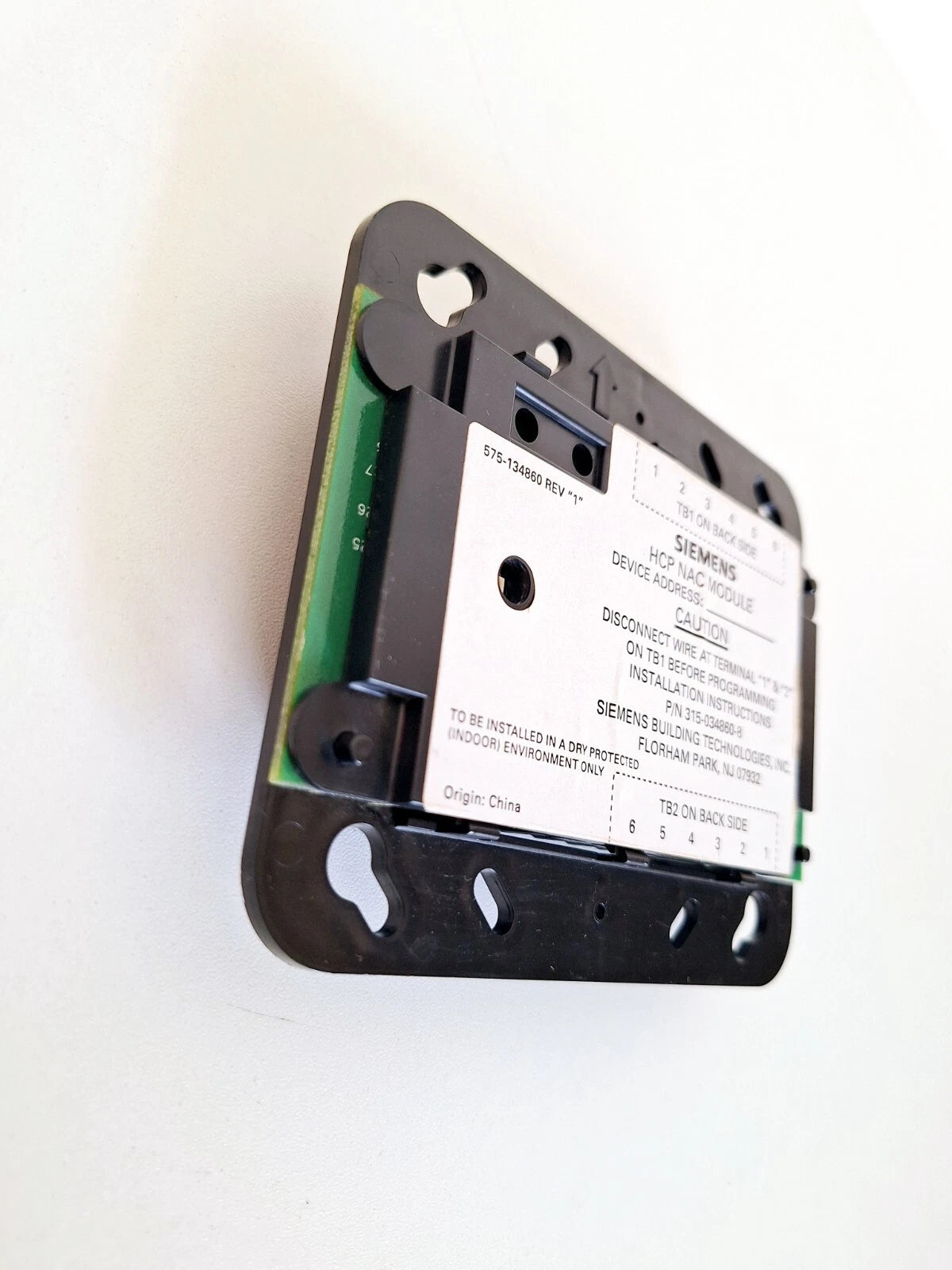

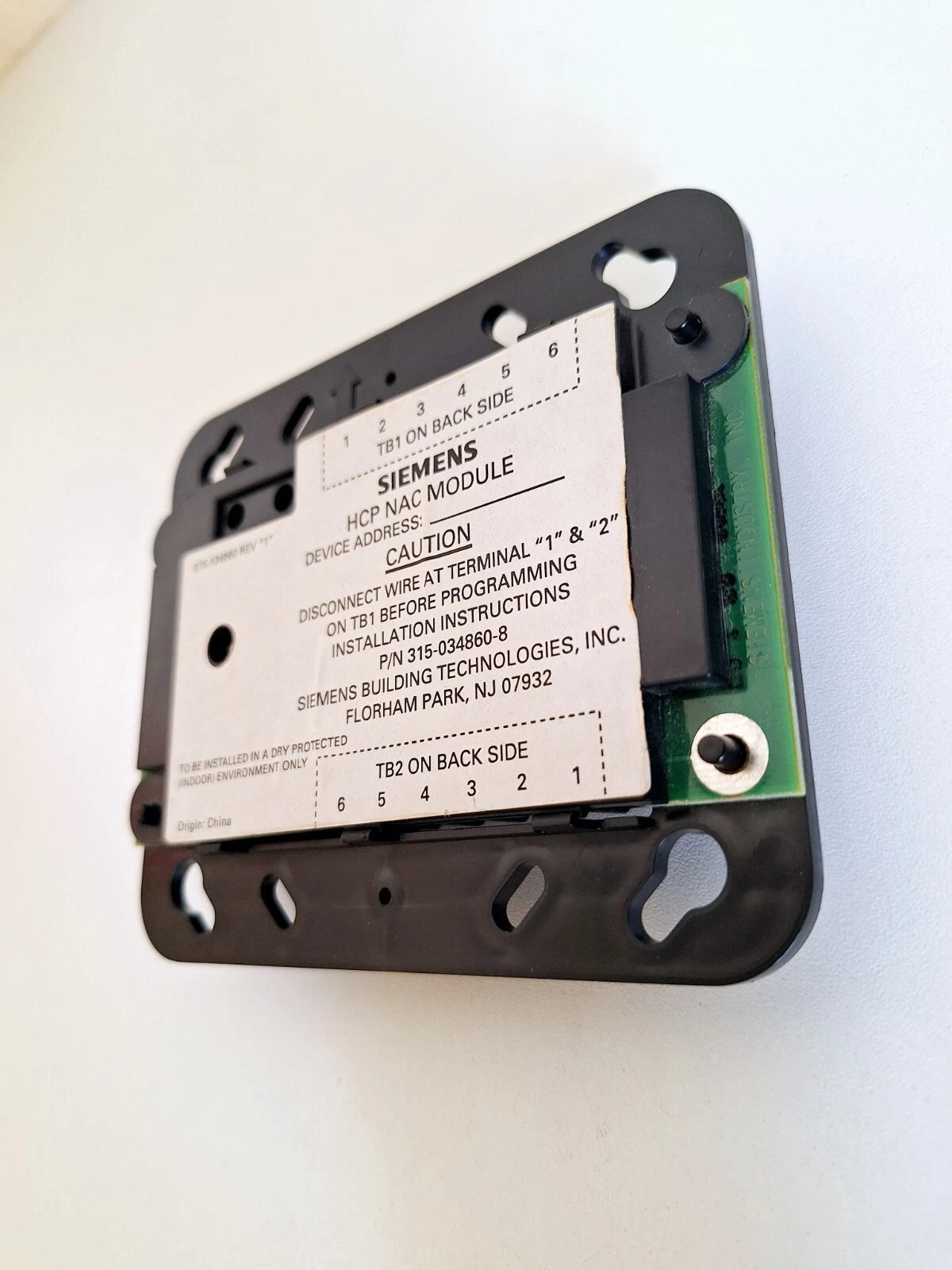

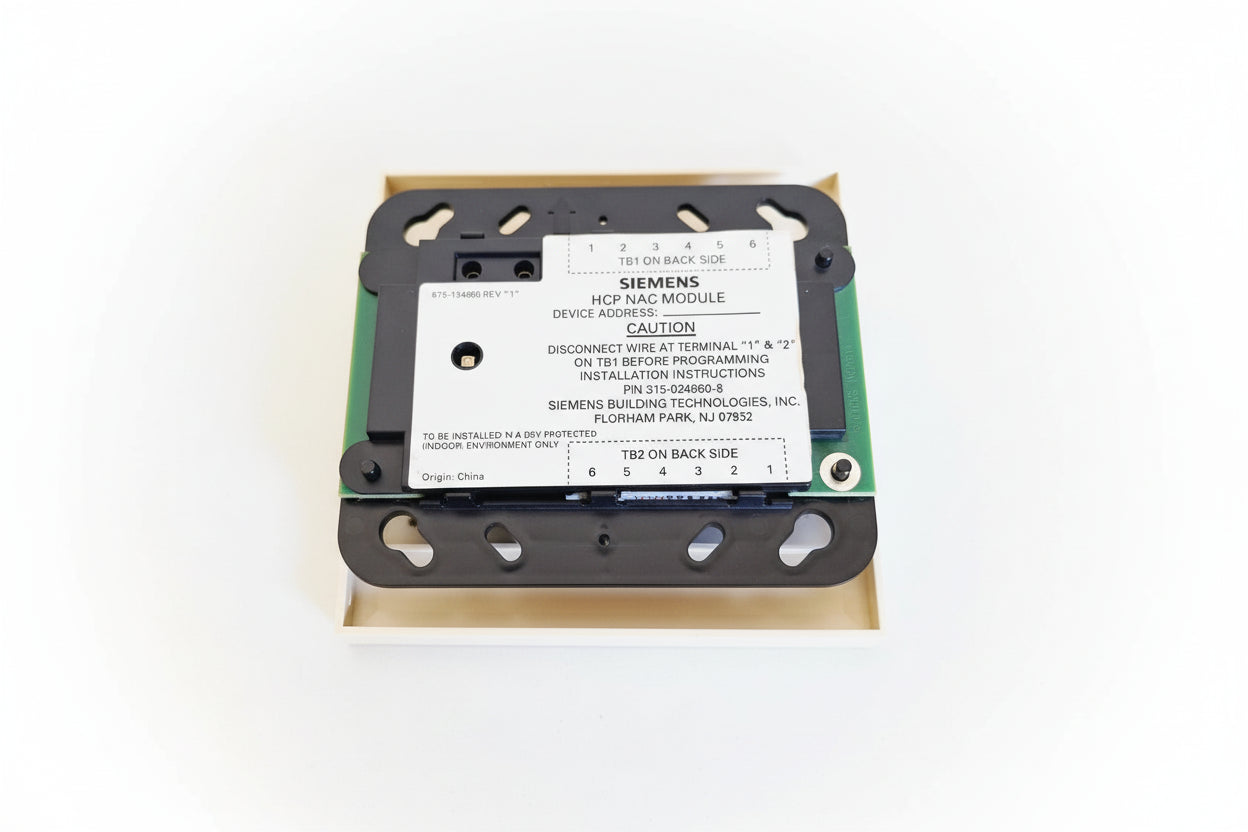

Siemens 500-034860 HCP Intelligent Control Point Module
- Regular price
- $239.00
- Sale price
- $239.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 500-034860
Description
The Siemens 500-034860 is an HCP intelligent control point device for controlling notification appliance circuits, speaker zones, or firefighter telephone circuits in compatible Siemens fire alarm systems. It provides addressable control with supervised power and output circuits and supports 24 VDC NAC operation, as well as 25 V or 70.7 V speaker zones in applicable systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Fire Detection |
| Part Number | 500-034860 |
| Subcategory | Intelligent Control Point Modules |
| Model | HCP |
| Device Type | Intelligent Control Point Device |
| Operating Voltage | 24 VDC |
| Current Draw | 1.0 mA active or standby |
| Circuit Configuration | Class A (Style Z) or Class B (Style Y) |
| NAC Output | 24 VDC |
| Speaker Output | 25 V, 35 W or 70.7 V, 25 W |
| Telephone Function | Firefighter telephone circuit |
| Communication | Siemens addressable analog loop |
| Mounting | Standard 4-inch square or double-gang electrical box |
| Programming | Siemens DPU Device Programmer/Test Unit |
| Operating Temperature | 32 ± 3°F to 120 ± 3°F (0 ± 2°C to 49 ± 2°C) |
| Humidity | 93 ± 2% RH at 90 ± 3°F (32 ± 2°C) |
| Maximum NAC Load | 1.50 A at 24 VDC |

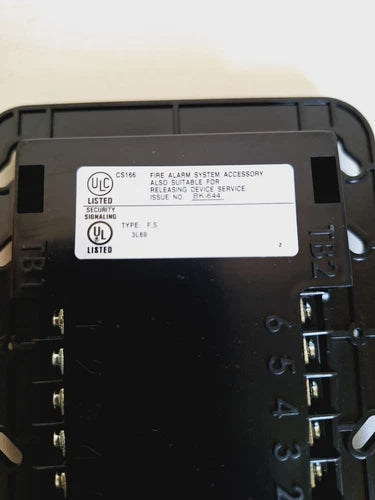

| Approvals | UL 864, ULC, CSFM, NYC Fire Department |
| Weight | 0.44 lb |
Information About 500-034860
The 500-034860 is the Siemens HCP model within the H-Series intelligent control point devices. It communicates through the analog loop of compatible Siemens Modular and FireFinder systems and can be wired in Class A or Class B configurations. The device uses SureWire™ polarity-insensitive technology and is programmed and tested with the Siemens DPU without mechanical address-setting switches or dials. It mounts in a standard 4-inch square or double-gang electrical box and provides supervised 24 VDC input and output power.
Key Features:
- Intelligent Control Point: Provides addressable control of compatible fire alarm notification and communication circuits.
- NAC Control: Provides a 24 VDC notification appliance circuit when used with compatible Siemens FACPs.
- Speaker Zone: Supports a single-channel 25 V, 35 W or 70.7 V, 25 W speaker zone on applicable Siemens systems.
- Telephone Circuit: Provides a firefighter telephone circuit when configured with compatible Siemens Modular or FireFinder XLS panels.
- SureWire™ Technology: Provides polarity-insensitive field wiring for simplified circuit installation.
- Supervised Circuits: Monitors input power and output-zone wiring for open or short conditions.
- Addressable Programming: Uses the Siemens DPU for programming and testing without mechanical addressing components.
- Standard Mounting: Fits standard 4-inch square or double-gang electrical boxes.
The 500-034860 delivers the reliability and precision required for addressable fire alarm notification, speaker, and emergency telephone circuits.
