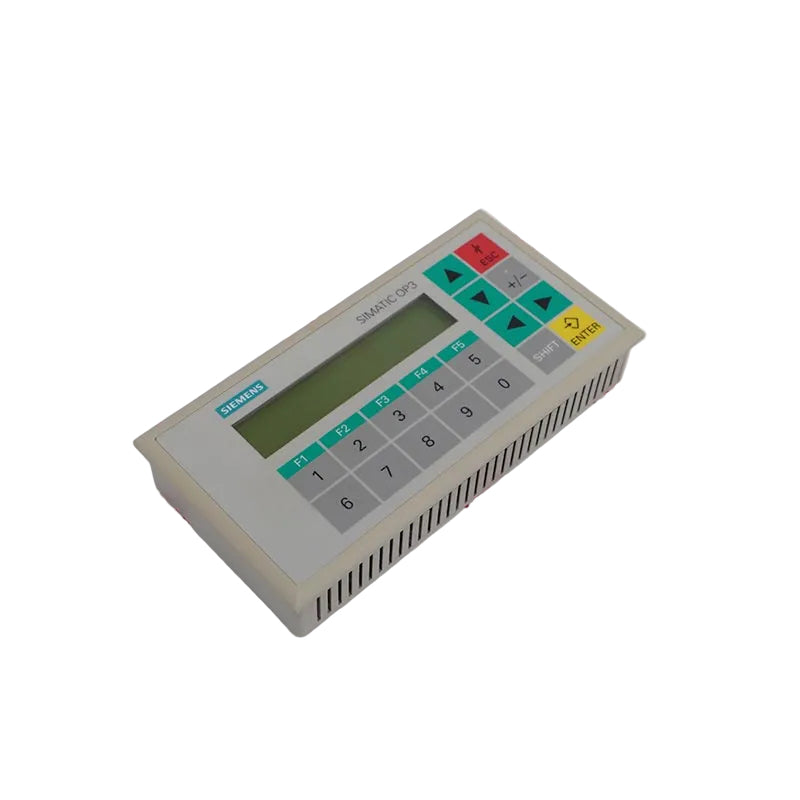

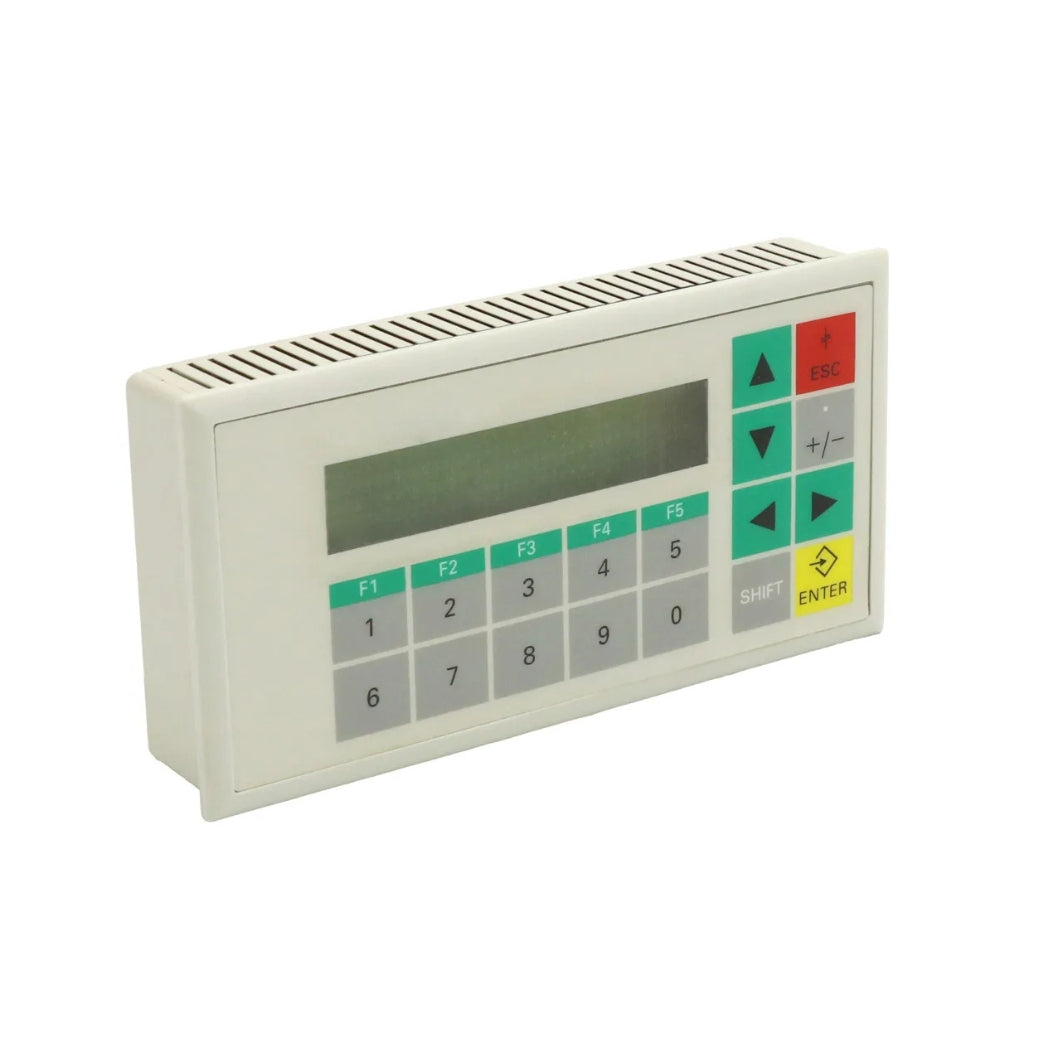

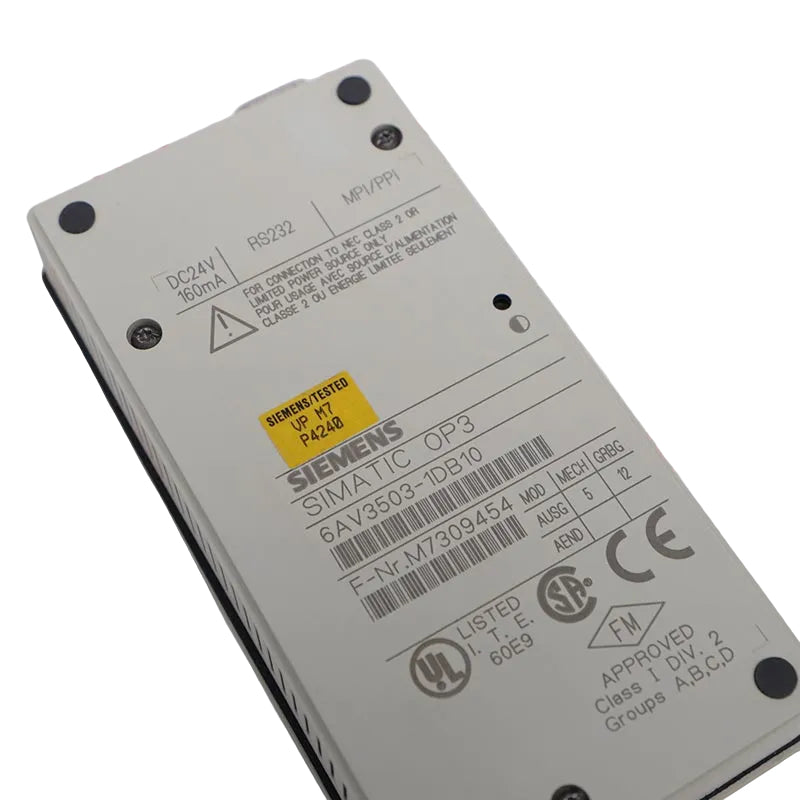

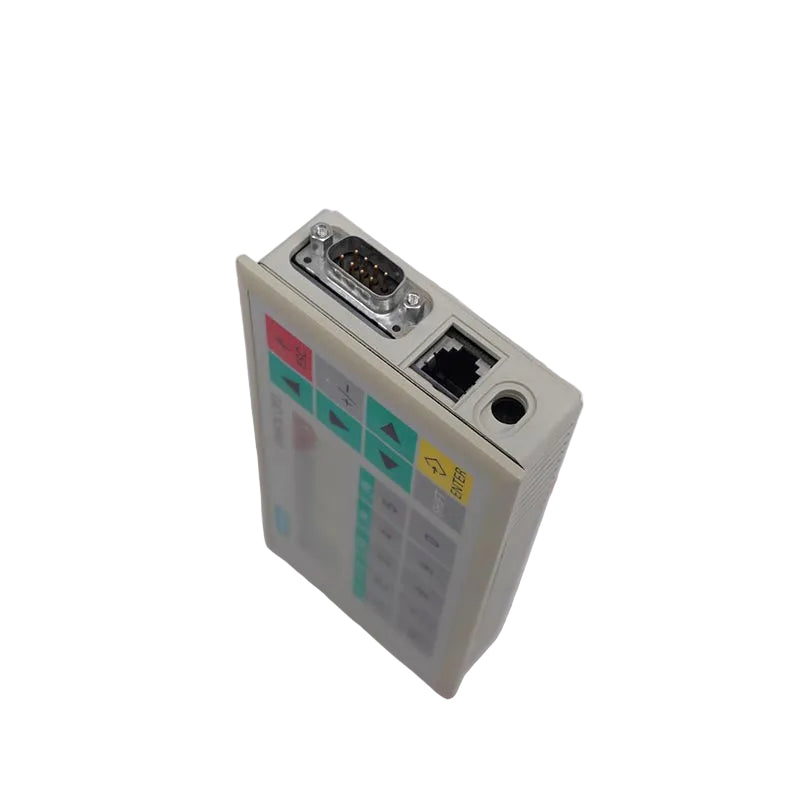

Siemens 6AV3503-1DB10 SIMATIC HMI OP3 Operator Panel

Siemens 6AV3503-1DB10 SIMATIC HMI OP3 Operator Panel

Part #: 6AV3503-1DB10 Manufactured by: Siemens

Regular price: $1,399.00
Sale price: $1,399.00
Regular price

1 in Stock

Condition: New-Surplus Original Box

Shipping calculated at checkout.

Product variants:

Quantity:

Product Overview

The 6AV3503-1DB10 is a legacy Siemens SIMATIC OP3 operator panel intended for text-based monitoring and control. Its compa... Read more

We accept:

Talk to a real expert.

+1 (828) 222-3490

sales@iqelectro.com

Mon–Sat, 7:00 AM – 8:00 PM (EST)

IQElectro 2-Year Warranty

Warranty for Product #: 6AV3503-1DB10

IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms

2-3 Day Free Shipping

Packed Ready to Ship

24/7 Expert Support

Return within 30-Days

IQElectro is Not an authorized distributor for Siemens

Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 6AV3503-1DB10

Description / Specifications

Description

The Siemens 6AV3503-1DB10 SIMATIC HMI OP3 Operator Panel is a compact text-based human-machine interface designed for industrial automation systems. It enables operators to monitor machine status and interact with compatible SIMATIC controllers through its two-line display and function keys.

Technical Specifications

Condition	New/Never Used Surplus
Brand	Siemens
Category	HMI
Part Number	6AV3503-1DB10
Subcategory	Operator Interface Panel
Product Family	SIMATIC HMI OP3
Display Type	Monochrome LCD
Display Format	2 lines × 20 characters
Function Keys	5
Supply Voltage	24 V DC
Communication Interfaces	1 × RS232, 1 × RS485
Maximum Transmission Rate	1.5 Mbit/s
User Data Memory	128 kB
Front Protection Rating	IP65
Rear Protection Rating	IP20
Configuration Software	ProTool/Lite V2.51 or higher
Dimensions (W × H × D)	148 × 76 × 25 mm
Weight	0.55 lb

Information About 6AV3503-1DB10

The 6AV3503-1DB10 is a Siemens SIMATIC HMI OP3 operator panel designed for local machine operation and status monitoring. It features a monochrome LCD display capable of showing two lines of 20 characters each. The unit includes RS232 and RS485 serial interfaces for communication with compatible control systems. It operates on a 24 V DC supply and supports configuration using ProTool/Lite version 2.51 or higher.

Key Features:

Manufacturer: Siemens industrial automation equipment.
Product Series: SIMATIC HMI OP3 operator panel.
Display: Two-line LCD with 20 characters per line.
Operator Controls: Five function keys for local interaction.
Communication Interfaces: One RS232 and one RS485 interface.
Power Supply: 24 V DC operating voltage.
Front Protection: IP65 protection rating.
Configuration Software: Compatible with ProTool/Lite version 2.51 or higher.

The 6AV3503-1DB10 delivers the operator interaction and machine-status monitoring required for compatible industrial automation applications.
