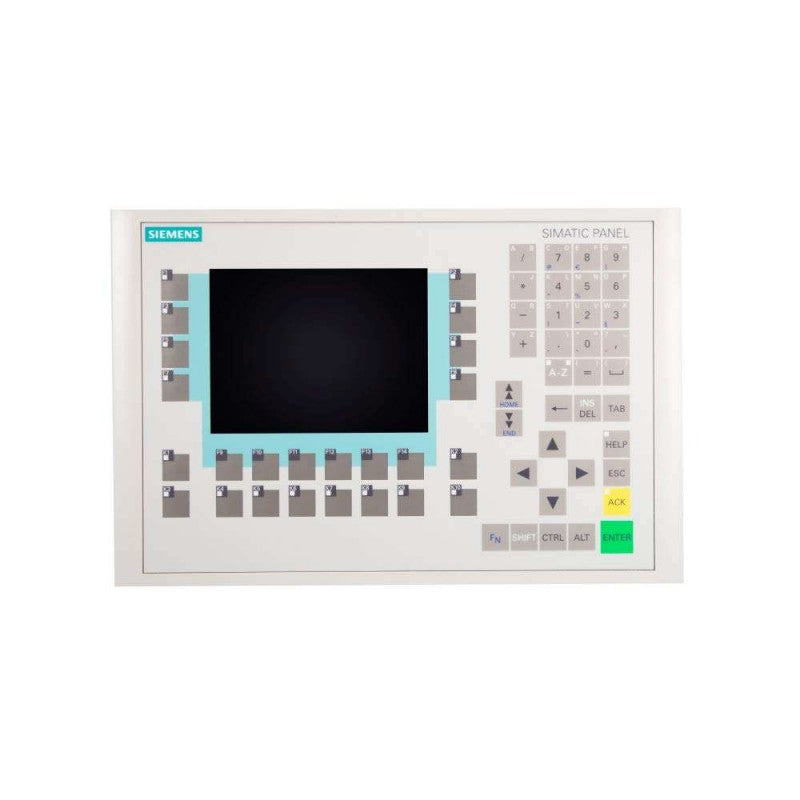

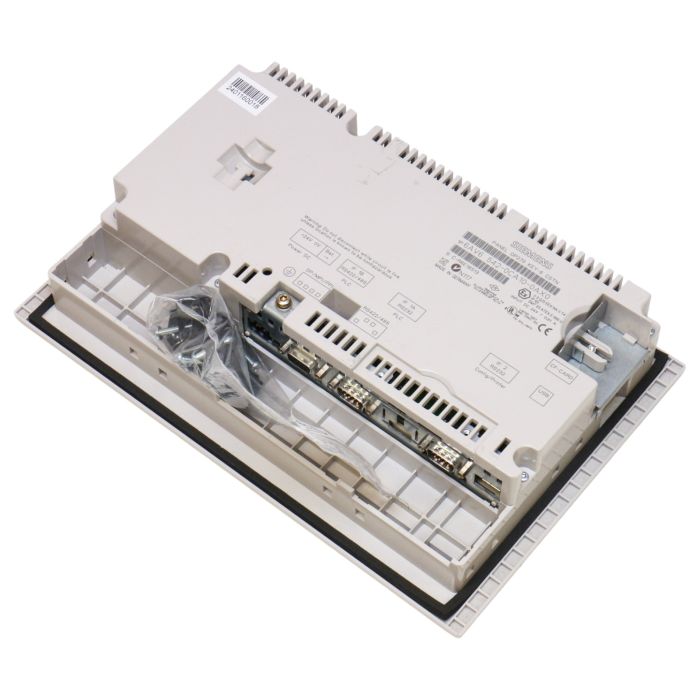

Siemens 6AV6542-0CA10-0AX0 SIMATIC OP270 5.7-Inch HMI Operator Panel

Siemens 6AV6542-0CA10-0AX0 SIMATIC OP270 5.7-Inch HMI Operator Panel

Part #: 6AV6542-0CA10-0AX0 Manufactured by: Siemens

Regular price: $1,999.00
Sale price: $1,999.00
Regular price

1 in Stock

Condition: New-Surplus Original Box

Shipping calculated at checkout.

Product variants:

Quantity:

Product Overview

The Siemens 6AV6542-0CA10-0AX0 is an OP270 human-machine interface panel for monitoring and controlling industrial equipme... Read more

We accept:

Talk to a real expert.

+1 (828) 222-3490

sales@iqelectro.com

Mon–Sat, 7:00 AM – 8:00 PM (EST)

IQElectro 2-Year Warranty

Warranty for Product #: 6AV6542-0CA10-0AX0

IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms

2-3 Day Free Shipping

Packed Ready to Ship

24/7 Expert Support

Return within 30-Days

IQElectro is Not an authorized distributor for Siemens

Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 6AV6542-0CA10-0AX0

Description / Specifications

Description

The Siemens 6AV6542-0CA10-0AX0 is a SIMATIC OP270 operator panel designed for industrial machine control and operator interaction. It features a 5.7-inch STN color display, a keypad with function keys, and 2 MB of configuration memory. The panel operates on 24 V DC power and supports configuration using ProTool version 6.0 or later.

Technical Specifications

Condition	New/Never Used Surplus
Brand	Siemens
Category	Industrial Automation
Part Number	6AV6542-0CA10-0AX0
Subcategory	Operator Interface Panels
Product Series	SIMATIC OP270
Display Size	5.7 inches
Display Type	STN color LCD
Display Resolution	320 × 240 pixels
Configuration Memory	2 MB
Supply Voltage	24 V DC
Current	0.61 A, as supplied
Function Keys	24, including 18 with LEDs
Communication Interfaces	RS-422/485, RS-232, USB
Memory Card Slot	CompactFlash
Configuration Software	ProTool version 6.0 or later
Weight	4.30 lb

Information About 6AV6542-0CA10-0AX0

The 6AV6542-0CA10-0AX0 belongs to the Siemens SIMATIC HMI family of operator interface devices. Its 320 × 240 pixel display supports 256 colors for presenting machine status, process values, and control screens. The interface provides serial communication ports for connecting to compatible automation equipment, along with a CompactFlash slot and USB connectivity. Its 24 function keys, including 18 with LEDs, support direct operator input and status indication.

Key Features:

5.7-Inch Color Display: Uses STN technology with 320 × 240 resolution and 256 colors.
2 MB Configuration Memory: Stores operator interface configuration data.
24 Function Keys: Includes 18 keys with integrated LEDs for operator input and indication.
24 V DC Power Supply: Designed for industrial control panel power systems.
Serial Communication: Includes RS-422/485 and RS-232 interfaces for compatible automation connections.
USB Connectivity: Provides a USB interface for supported functions.
CompactFlash Slot: Supports CompactFlash media.
ProTool Configuration: Configurable with ProTool version 6.0 or later, according to the supplied specifications.

The 6AV6542-0CA10-0AX0 delivers the reliability and precision required for industrial machine operation, process monitoring, and operator control applications.
