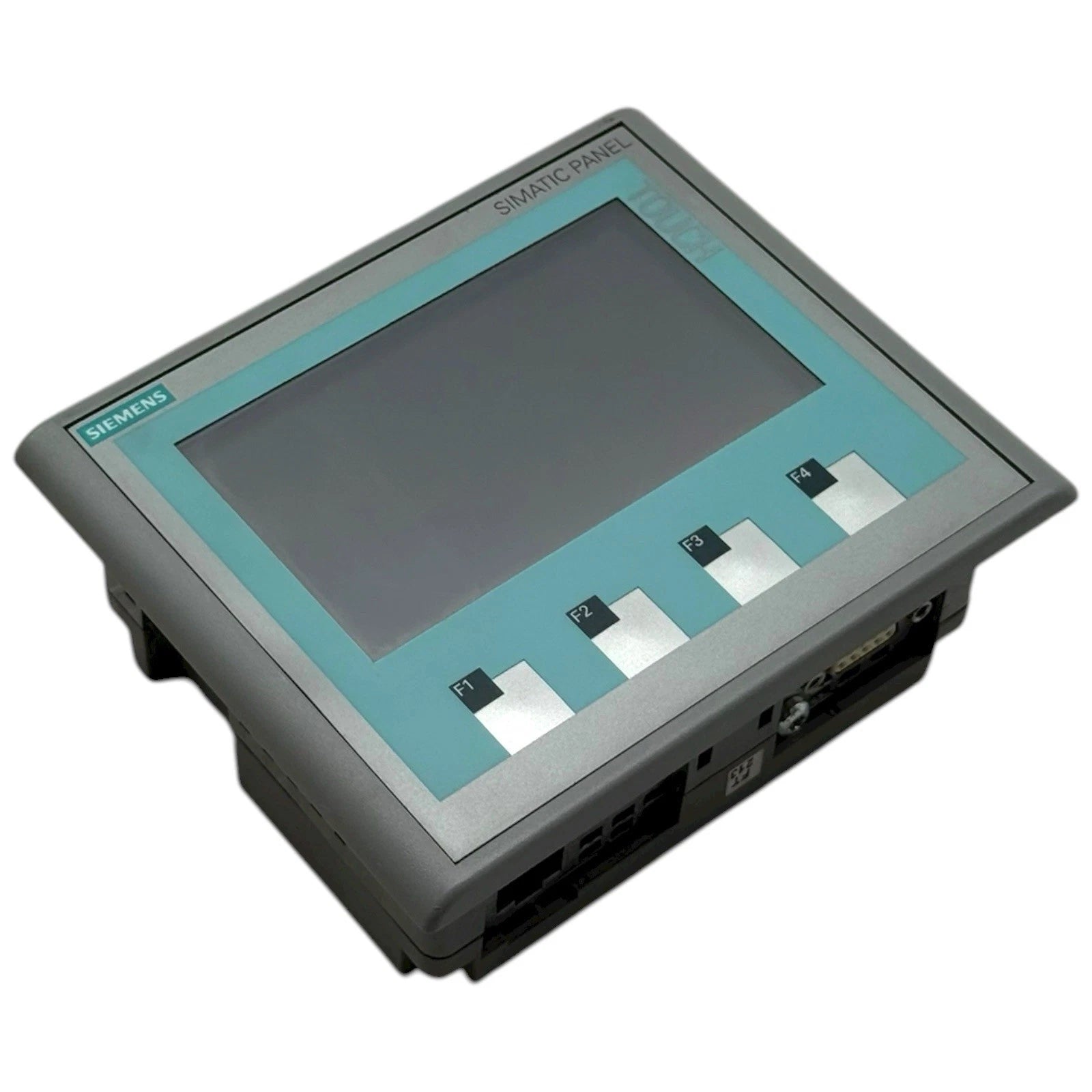

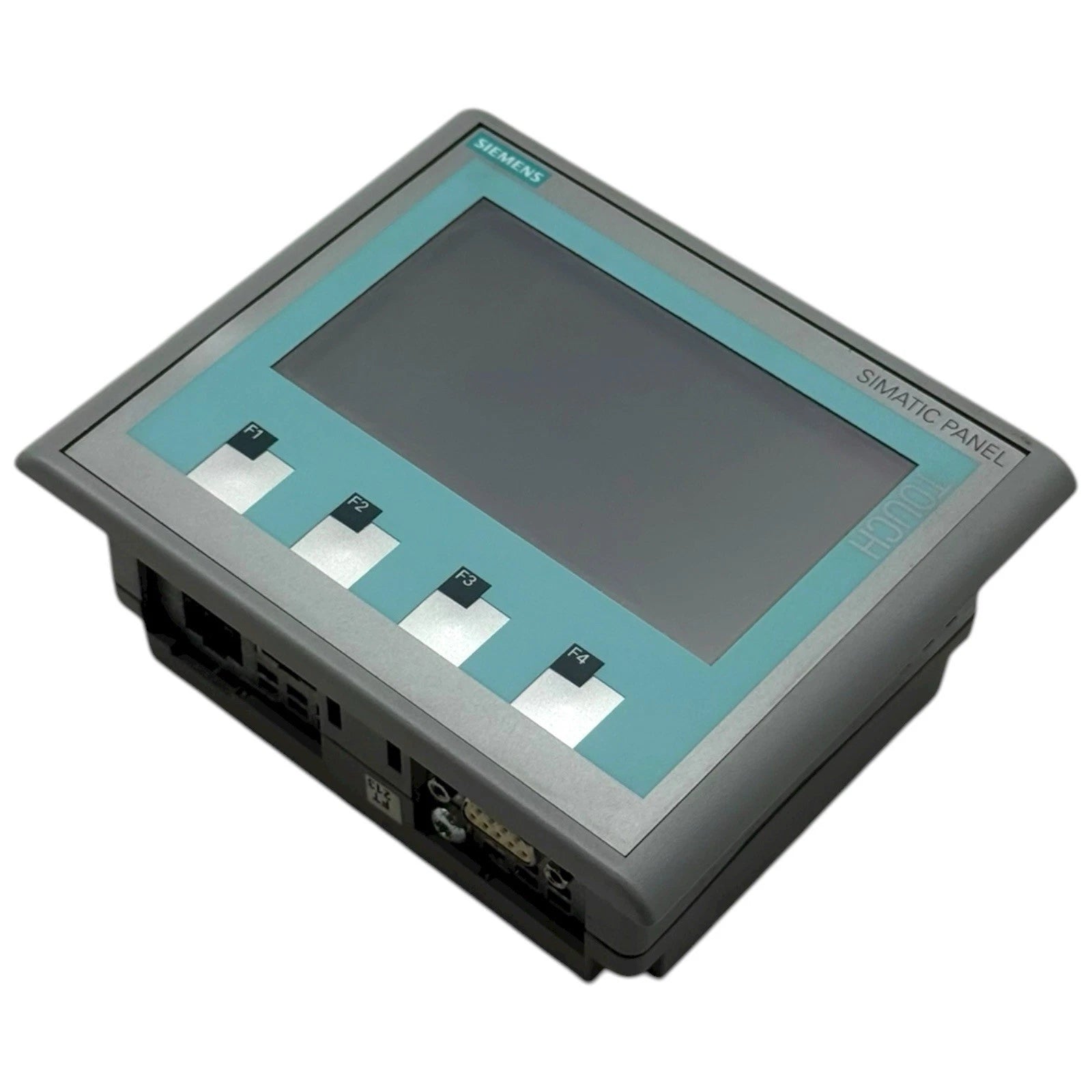

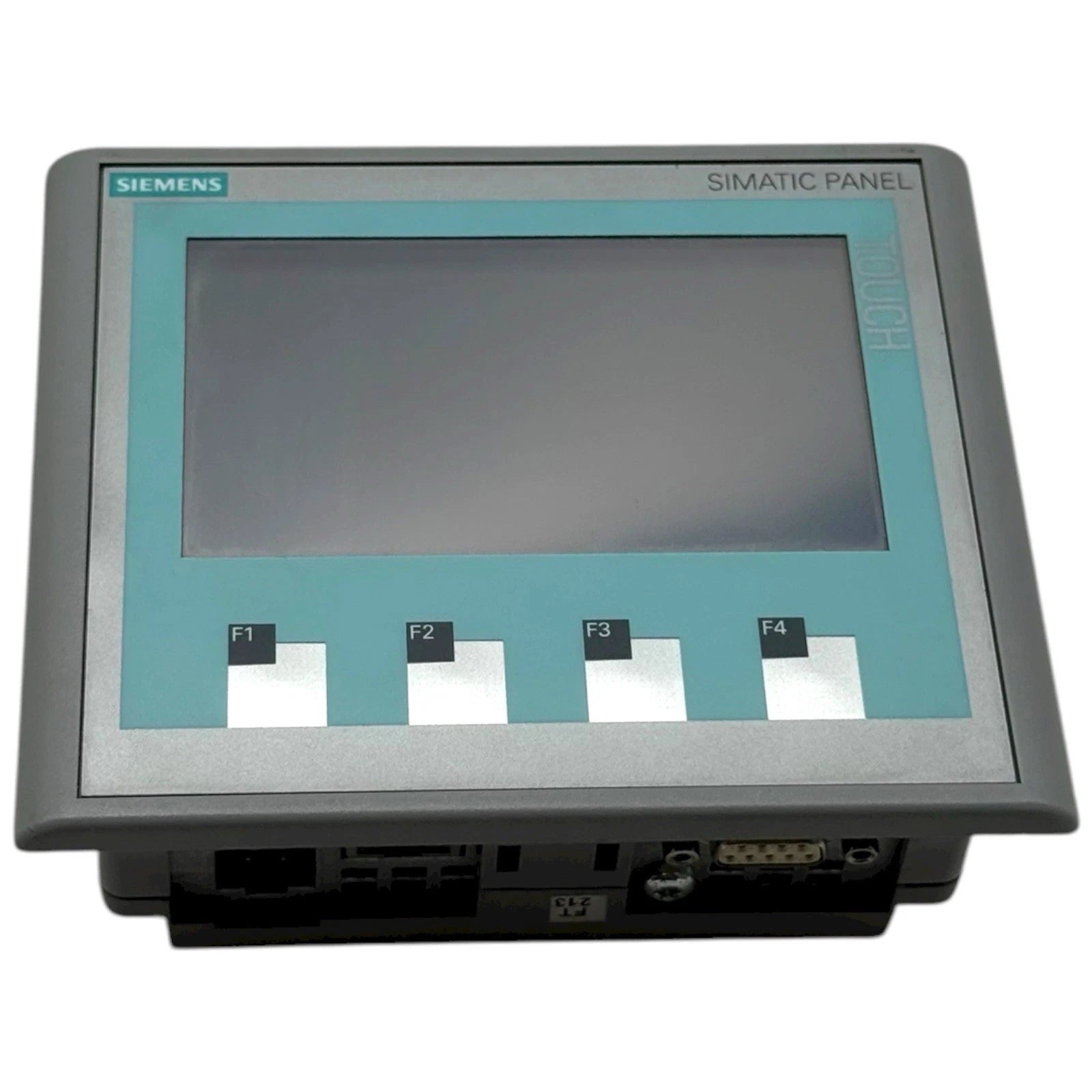

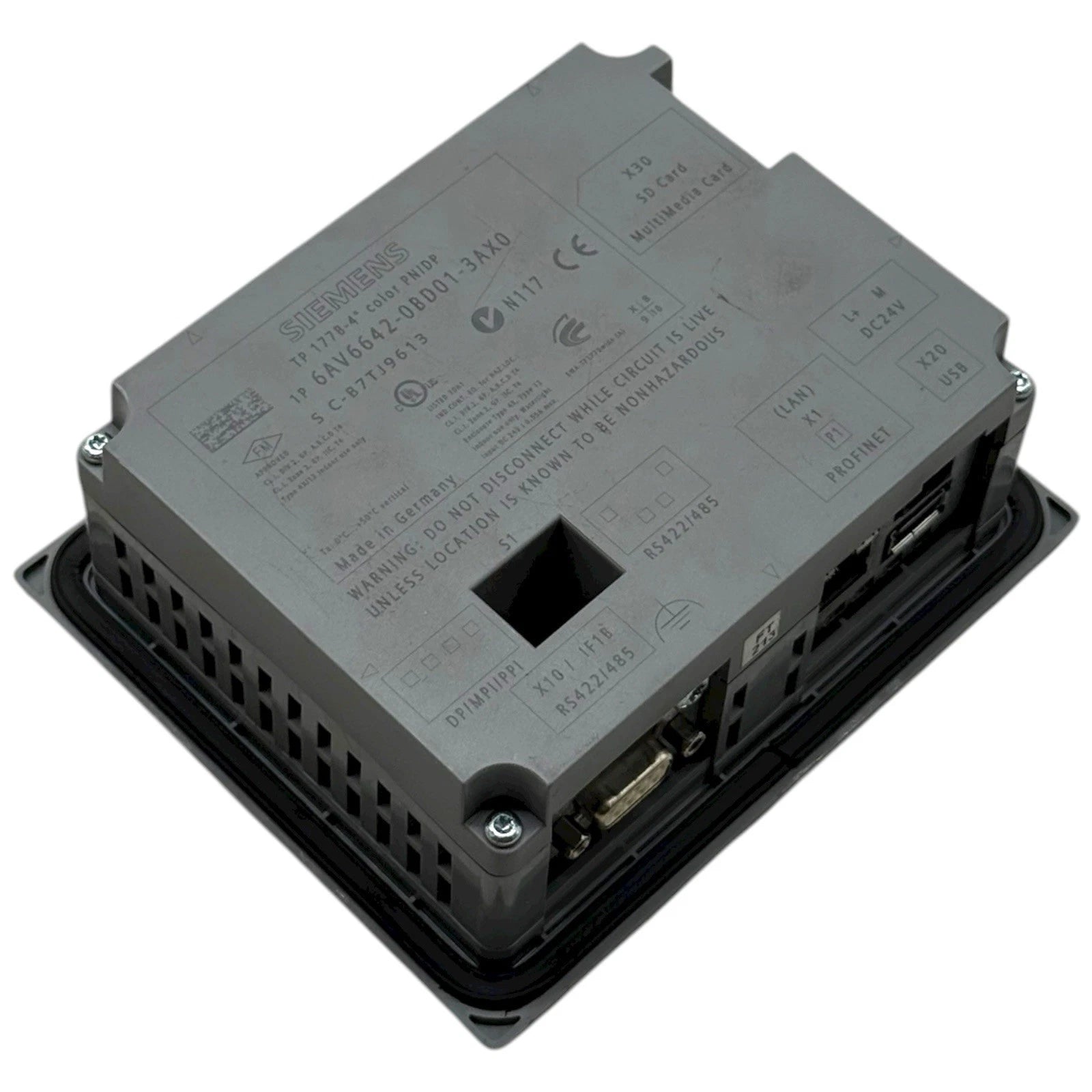

Siemens 6AV6642-0BD01-3AX0 SIMATIC TP177B 4-Inch Color Touch Operator Interface
- Regular price
- $2,199.00
- Sale price
- $2,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6AV6642-0BD01-3AX0
Description
The Siemens 6AV6642-0BD01-3AX0 is a SIMATIC TP177B 4-inch color touch operator panel designed for machine visualization, process monitoring, and operator control. It combines a 256-color widescreen display with PROFIBUS DP, Ethernet, serial, and Universal Serial Bus connectivity for integration with industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | HMI / MMI / OIT |
| Part Number | 6AV6642-0BD01-3AX0 |
| Subcategory | Operator Interface |
| Product Family | SIMATIC TP177B |
| Product Type | Color Touch Operator Panel |
| Display Size | 4.3 inches |
| Display Technology | Thin Film Transistor Color Display |
| Display Format | 16:9 Widescreen |
| Display Resolution | 480 × 272 pixels |
| Display Colors | 256 colors |
| Communication Protocols | Multipoint Interface and PROFIBUS DP |
| Interfaces | RS-485, RS-422, Universal Serial Bus, and Ethernet 10/100 |
| Memory Expansion | Multi Media Card and Secure Digital Card Support |
| Configuration Software | SIMATIC WinCC flexible 2008 |
| Front Dimensions | 140 × 116 millimeters |
| Mounting Cutout | 123 × 99 millimeters |
| Mounting Depth | 48 millimeters |
| Production Status | Legacy Product; New Product Delivery Blocked January 1, 2015 |
| Weight | 1.10 lbs |
Information About 6AV6642-0BD01-3AX0
The 6AV6642-0BD01-3AX0 is a Siemens SIMATIC Human Machine Interface TP177B 4-inch Color PN/DP operator panel from the 177 series. Its compact construction uses a 4.3-inch Thin Film Transistor widescreen touch display with 480 × 272 pixel resolution and 256 colors for graphical machine and process visualization. Communication capabilities include Multipoint Interface and PROFIBUS DP protocols, RS-485, RS-422, Universal Serial Bus, and 10/100 Ethernet interfaces, with support for external memory and printer connectivity. The panel is configurable with SIMATIC WinCC flexible 2008 and is now maintained as a legacy spare-part product for existing automation installations.
Key Features:
- 4.3-Inch Color Touch Display: Uses a widescreen Thin Film Transistor touch display with 480 × 272 pixel resolution and 256-color presentation for graphical operator interaction.
- Industrial Communication: Supports Multipoint Interface and PROFIBUS DP communication for connection with compatible programmable controllers and automation networks.
- Ethernet Connectivity: Includes a 10/100 Ethernet interface for network-based communication within compatible industrial control architectures.
- Serial Interfaces: Provides RS-485 and RS-422 connectivity for supported industrial communication devices and protocols.
- Universal Serial Bus Support: Provides a Universal Serial Bus interface and supports compatible external Universal Serial Bus memory devices.
- Removable Memory Support: Accepts compatible Multi Media Card and Secure Digital memory media for application and data storage functions.
- Printer Connectivity: Supports an external printer as a peripheral device for applicable visualization and reporting functions.
- WinCC Configuration: Designed for configuration with Siemens SIMATIC WinCC flexible 2008 engineering software.
The 6AV6642-0BD01-3AX0 delivers the reliability and precision required for machine visualization, process supervision, and operator interaction in compatible Siemens industrial automation systems.
