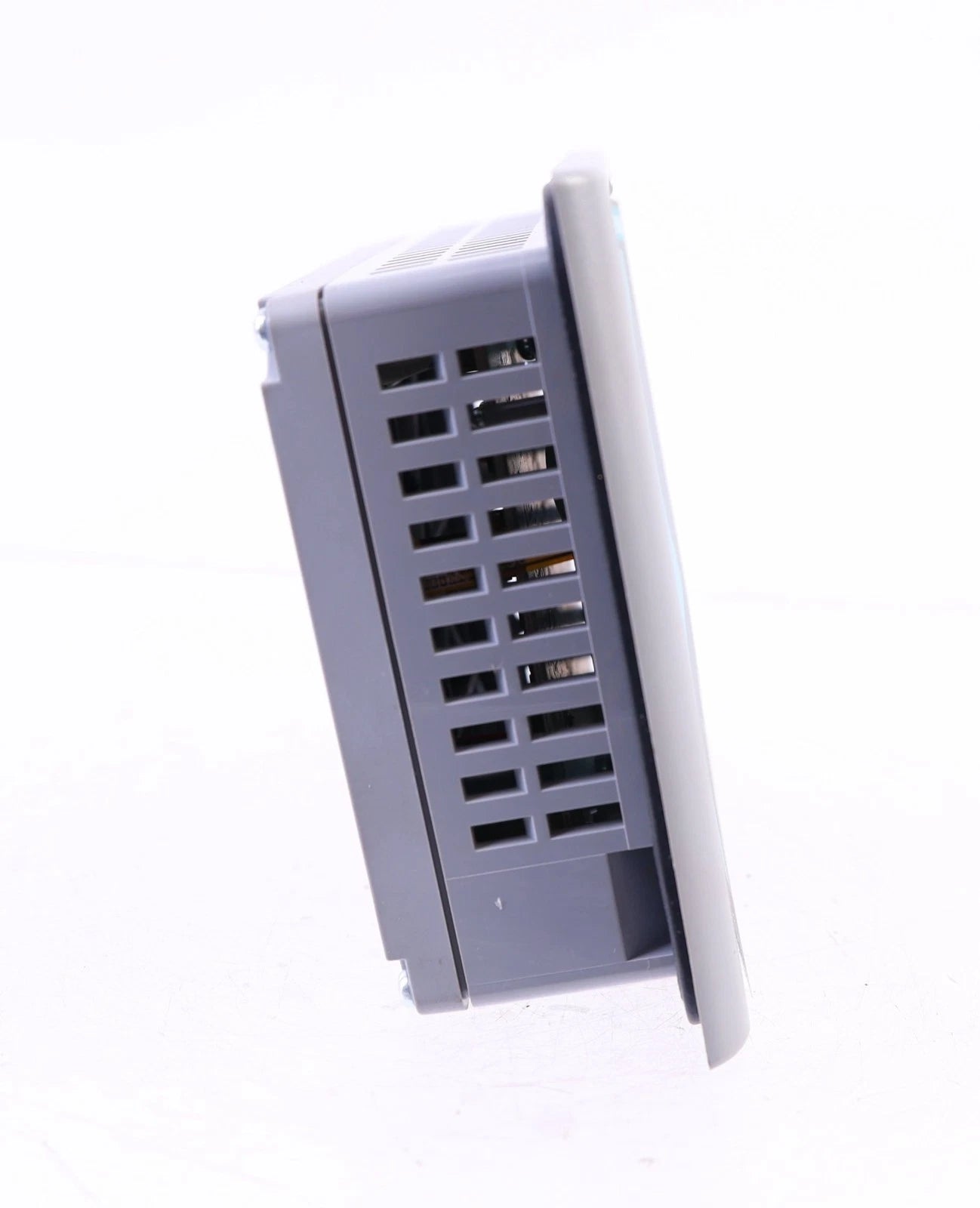

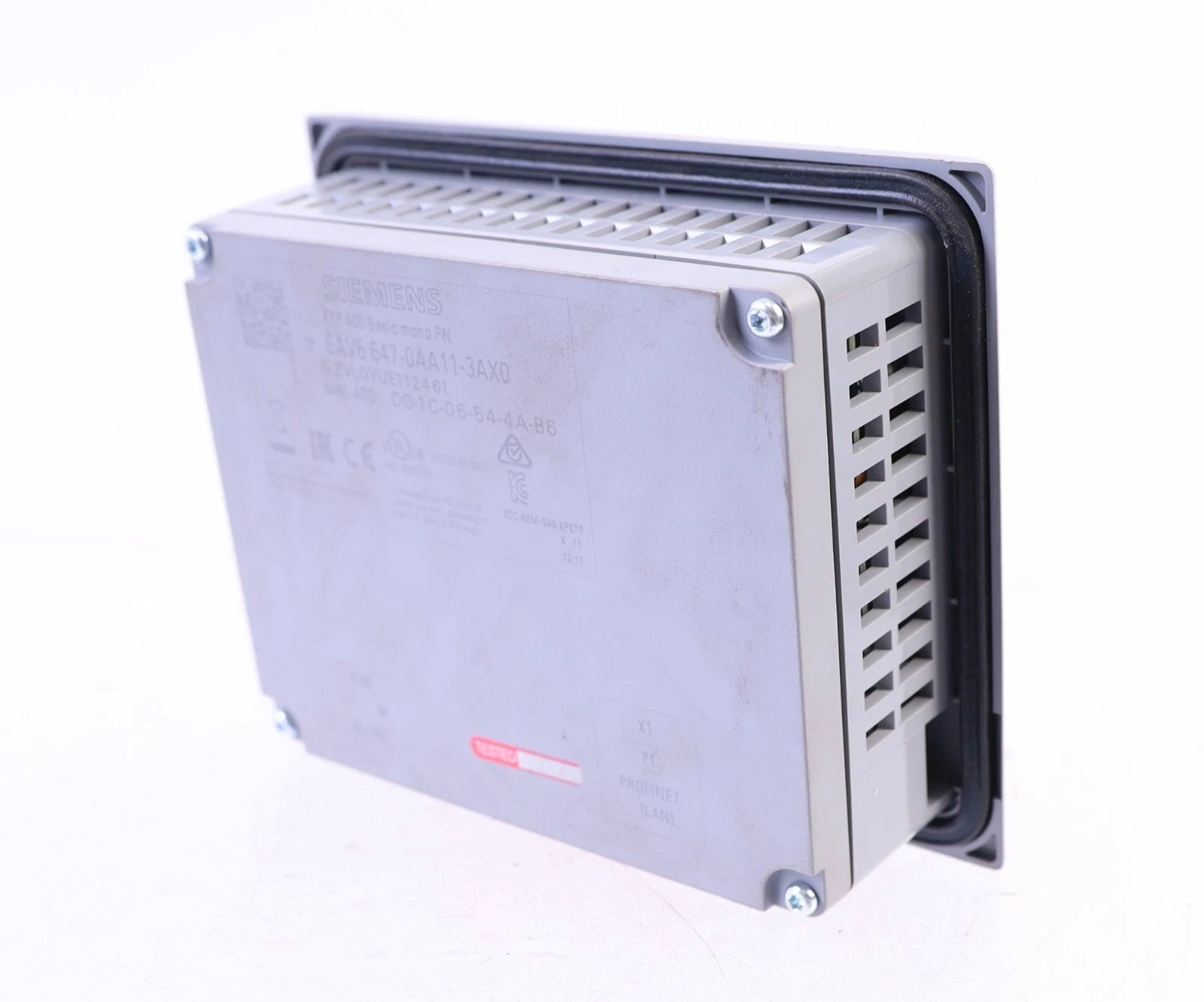

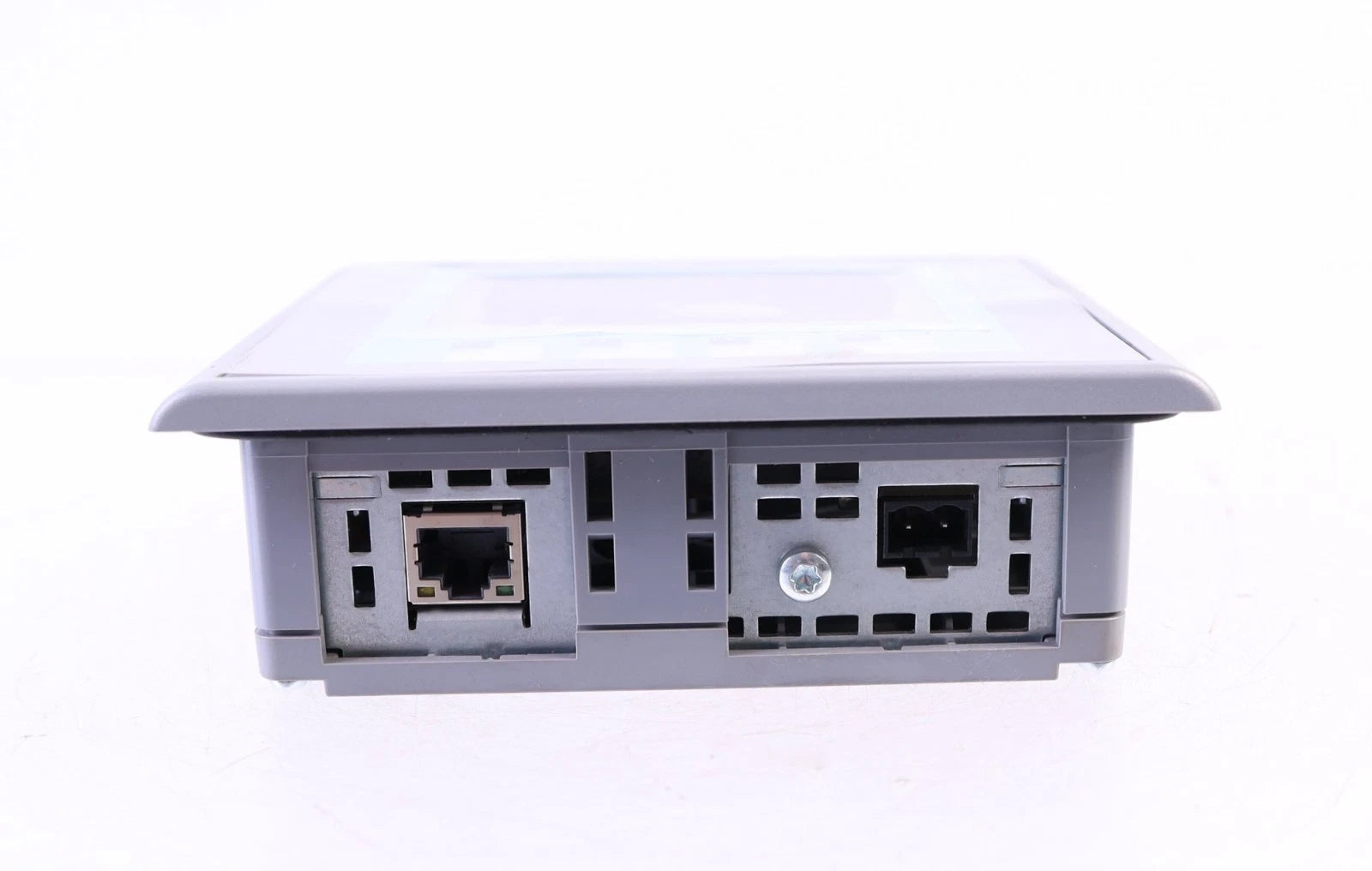

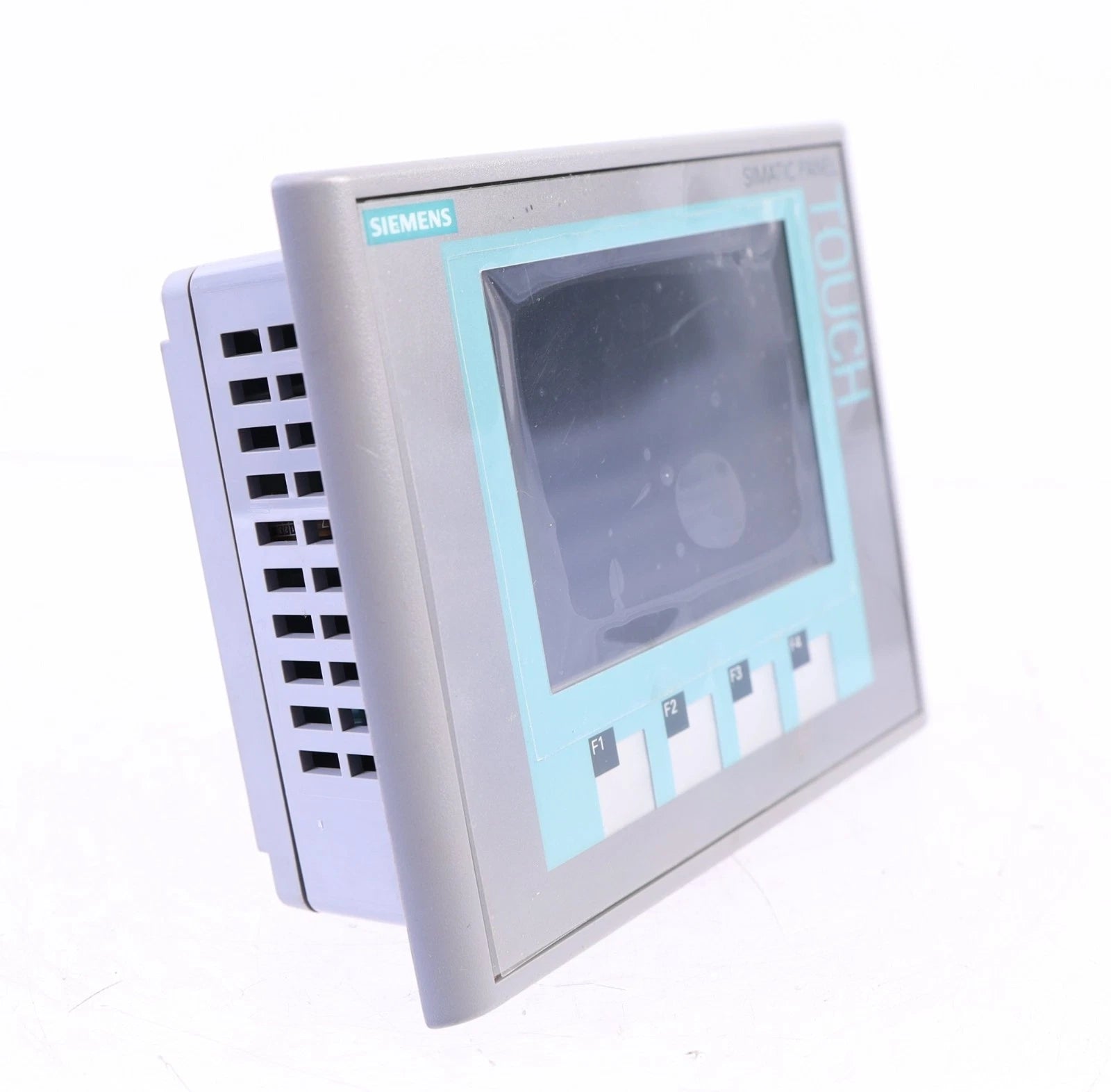

Siemens 6AV6647-0AA11-3AX0 SIMATIC HMI KTP400 Basic Mono PN 3.8" Operator Panel with PROFINET
- Regular price
- $707.00
- Sale price
- $707.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6AV6647-0AA11-3AX0
Description
The Siemens 6AV6647-0AA11-3AX0 is a SIMATIC HMI KTP400 Basic Mono operator panel designed for machine-level visualization and control in industrial automation systems. It features a 3.8-inch STN monochrome display with 4 gray scales and supports both key and touch operation for intuitive interaction. Equipped with a PROFINET interface, the panel integrates seamlessly with Siemens PLC systems and can be configured using WinCC Flexible or WinCC Basic engineering software.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Industrial Automation |
| Part Number | 6AV6647-0AA11-3AX0 |
| Subcategory | HMI Operator Panels |
| Series | SIMATIC HMI KTP400 Basic Mono PN |
| Display Type | STN Monochrome Display |
| Screen Size | 3.8 in |
| Resolution | 320 × 240 pixels |
| Display Colors | 4 gray scales |
| Control Type | Key and Touch operation |
| Function Keys | 4 |
| Communication Interface | PROFINET |
| Processor Type | 32-bit RISC |
| User Memory | 1 MB |
| Power Supply | 24 V DC |
| Permissible Voltage Range | 19.2 – 28.8 V DC |
| Typical Power Consumption | 3 W |
| Current Consumption (Rated) | 0.1 A |
| Mounting Orientation | Vertical / Portrait / Landscape supported |
| Backlight Life (MTBF at 25°C) | 30,000 hours |
| Alarm Indicator | Integrated buzzer |
| Configuration Software | WinCC Flexible 2008 SP2 Compact / WinCC Basic |
| Weight | Approx. 0.6 kg |
Information About 6AV6647-0AA11-3AX0
The 6AV6647-0AA11-3AX0 is a SIMATIC HMI Basic Panel developed by Siemens for efficient operator interaction with automation equipment. As part of the KTP400 Basic series, it combines compact design with both tactile keys and touch functionality for flexible machine control. The unit uses a 3.8-inch STN monochrome display with a resolution of 320 × 240 pixels, enabling clear visualization of process data, alarms, and control parameters. With integrated PROFINET connectivity and compatibility with Siemens engineering tools such as WinCC Flexible 2008 SP2 Compact and WinCC Basic, the panel provides reliable integration into SIMATIC automation environments.
Key Features:
- SIMATIC KTP400 Basic Panel: Designed for operator interface and machine visualization in Siemens automation systems.
- 3.8-Inch STN Display: Monochrome screen with clear process visualization for industrial applications.
- 320 × 240 Resolution: Provides clear graphical display of machine data, alarms, and operating parameters.
- 4 Gray Scale Levels: Improves readability of graphical elements on the monochrome display.
- Key and Touch Operation: Combines tactile function keys with touch interface for flexible operator control.
- PROFINET Interface: Enables communication with Siemens PLCs and automation networks.
- WinCC Configuration Support: Compatible with WinCC Flexible 2008 SP2 Compact and WinCC Basic engineering software.
- Compact Industrial Design: Suitable for installation in machine panels and operator stations.
- 24 V DC Operation: Standard industrial power input for automation environments.
- Integrated Buzzer: Provides audible notifications for alarms and system events.
The 6AV6647-0AA11-3AX0 delivers the reliability and precision required for operator interface control, machine monitoring, and industrial automation visualization.
