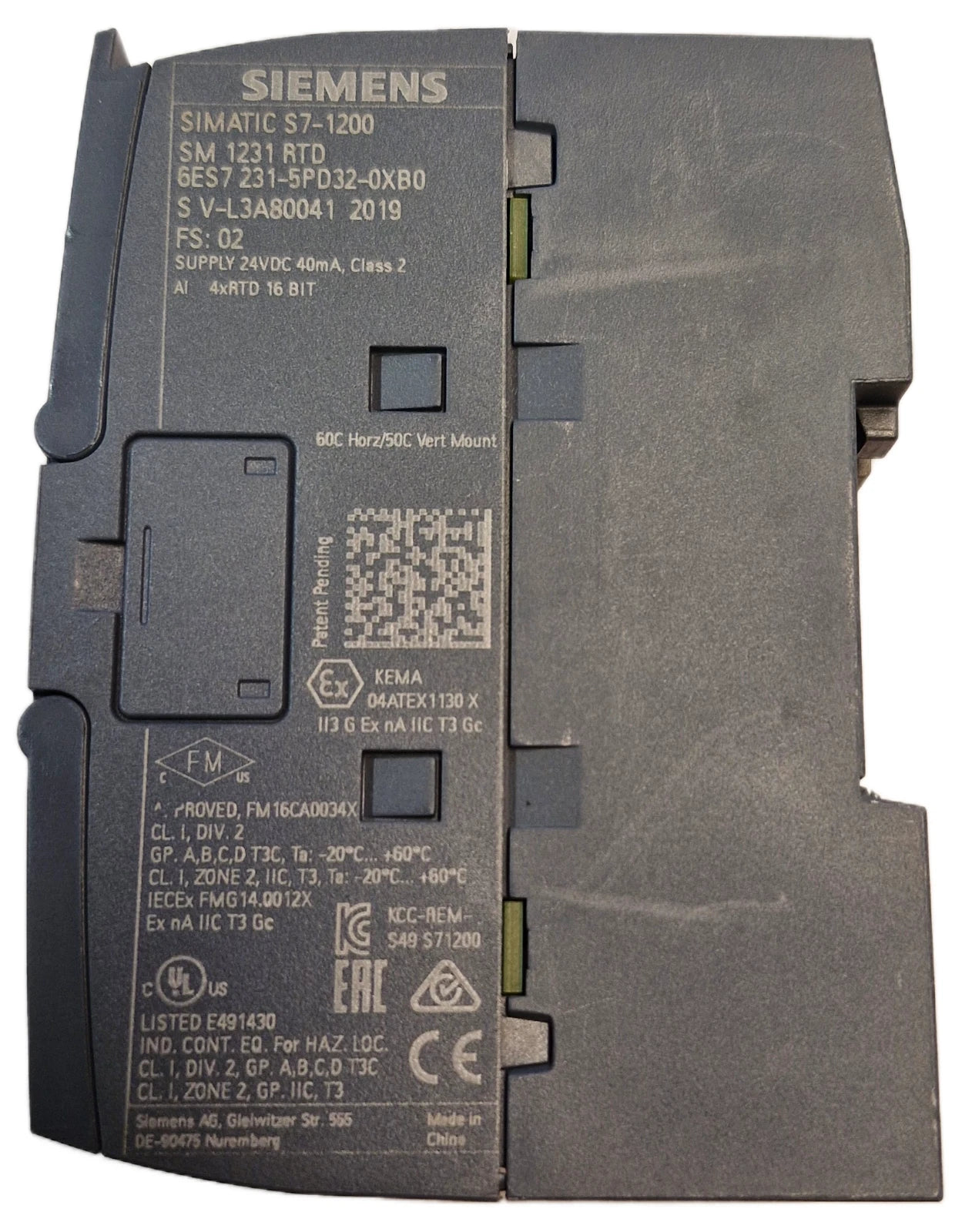

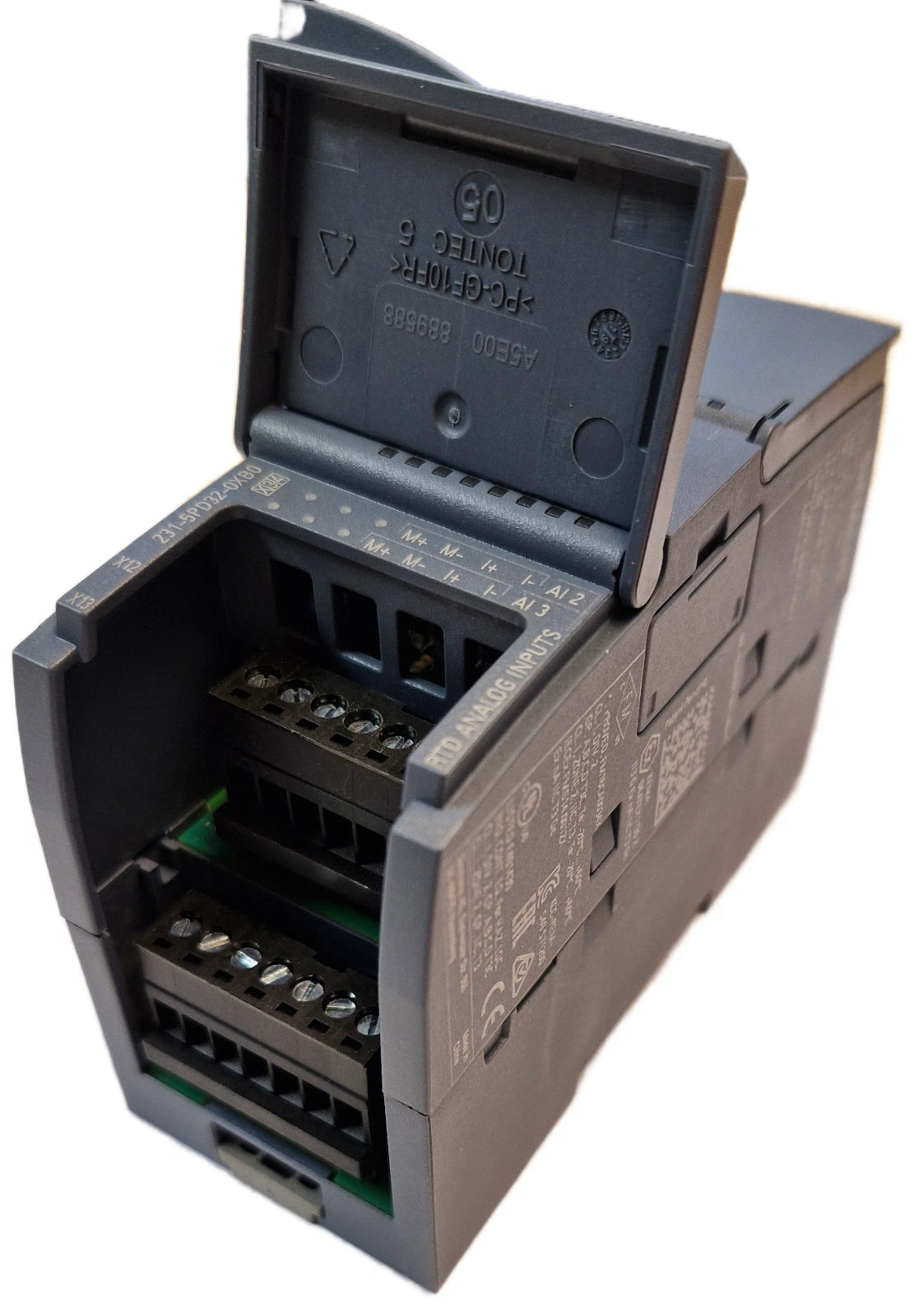

Siemens 6ES7231-5PD32-0XB0 SIMATIC S7-1200 RTD Analog Input Module 4 Channel
- Regular price
- $337.00
- Sale price
- $337.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6ES7231-5PD32-0XB0
Description
The Siemens 6ES7231-5PD32-0XB0 is a SIMATIC S7 analog input module designed for precise temperature measurement using RTD sensors in industrial automation systems. It provides four analog input channels with 15-bit resolution and 24 VDC operation for reliable data acquisition in PLC applications. The module is used for integrating temperature sensors and analog signals into Siemens S7-1200 control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | PLC Modules |
| Part Number | 6ES7231-5PD32-0XB0 |
| Subcategory | Analog Input Modules |
| Product Series | SIMATIC S7-1200 |
| Module Type | Analog Input Module |
| Input Type | RTD |
| Number of Inputs | 4 |
| Resolution | 15 bit |
| Voltage Rating | 24 VDC |
| Power Consumption | 1.5 W |
| Current Consumption | 40 to 80 mA |
| Operating Temperature | -40 to 60 °C |
| Material | Plastic |
| Dimensions | 100 mm H x 45 mm W x 75 mm D |
| Mounting Type | S7-1200 Expansion Module Mounting |
| Standards & Approvals | CSA Certified, CE Certified, FM Approval, RCM |
| Application | Temperature measurement and industrial process monitoring |
| Weight | 0.15 kg |
Information About 6ES7231-5PD32-0XB0
The 6ES7231-5PD32-0XB0 is part of the Siemens SIMATIC S7-1200 signal module family, developed to expand PLC systems with accurate analog measurement capabilities. The module supports RTD input signals for temperature monitoring applications commonly found in process automation, machinery, and industrial control systems. It features four input channels with high-resolution conversion for improved measurement accuracy and stable signal processing. The compact design allows direct integration with SIMATIC controllers while supporting installation in space-limited control cabinets.
Key Features:
- SIMATIC S7-1200 Compatibility: Designed for expansion of Siemens S7-1200 PLC automation systems.
- RTD Input Support: Provides direct connection for resistance temperature detectors used in temperature measurement.
- Four Analog Inputs: Includes four RTD input channels for multi-point temperature monitoring.
- 15-Bit Resolution: Provides detailed signal conversion for accurate analog measurements.
- 24 VDC Operation: Uses standard industrial control voltage for PLC installations.
- Compact Module Design: Measures 100 mm high, 45 mm wide, and 75 mm deep for efficient cabinet mounting.
- Wide Temperature Range: Operates reliably from -40 to 60 °C in industrial environments.
- Low Power Consumption: Requires approximately 1.5 W during operation.
- Industrial Certifications: Certified with CE, CSA, FM Approval, and RCM compliance standards.
- Flexible Automation Integration: Expands PLC measurement capabilities for process and machine applications.
The 6ES7231-5PD32-0XB0 delivers the reliability and precision required for industrial temperature monitoring and PLC analog input applications.
