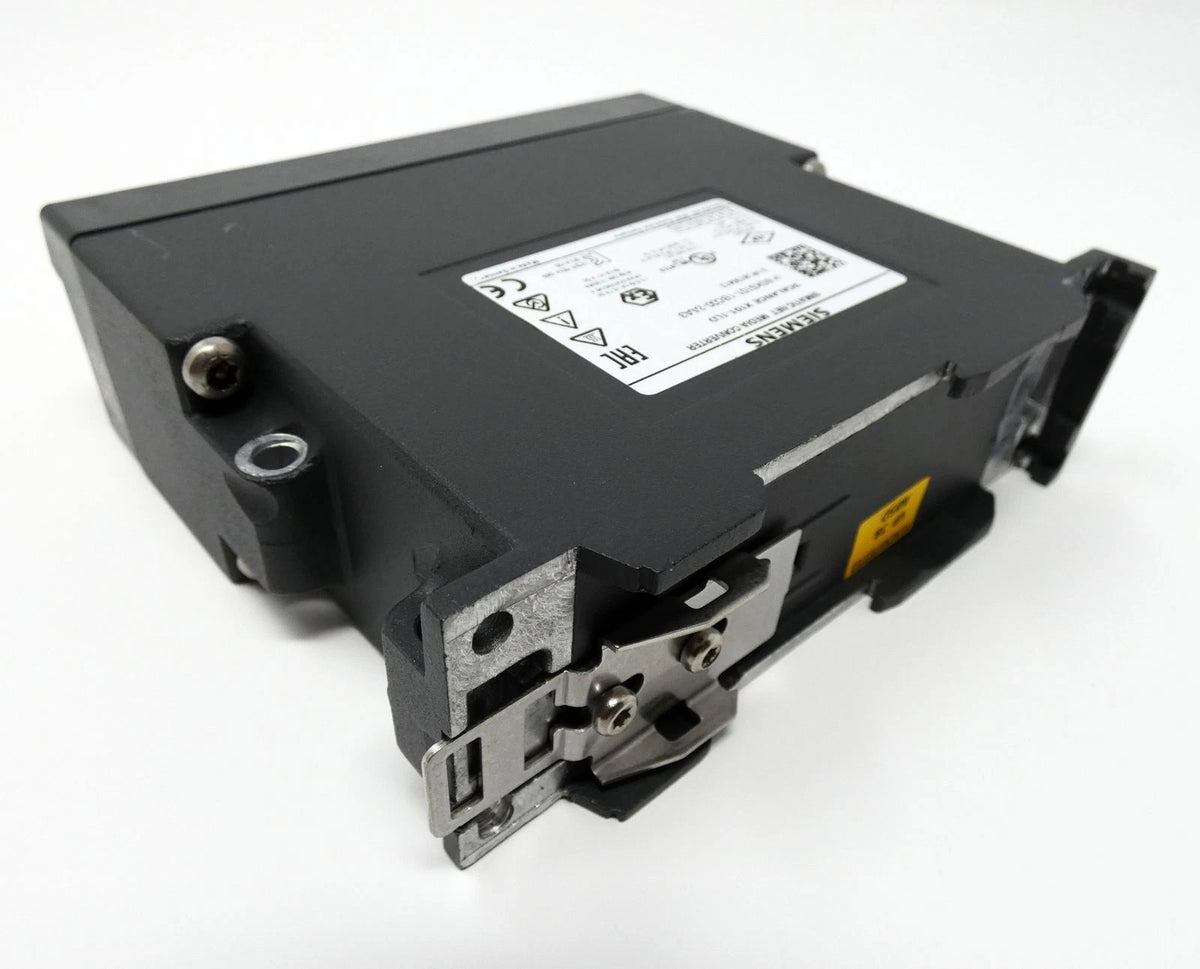

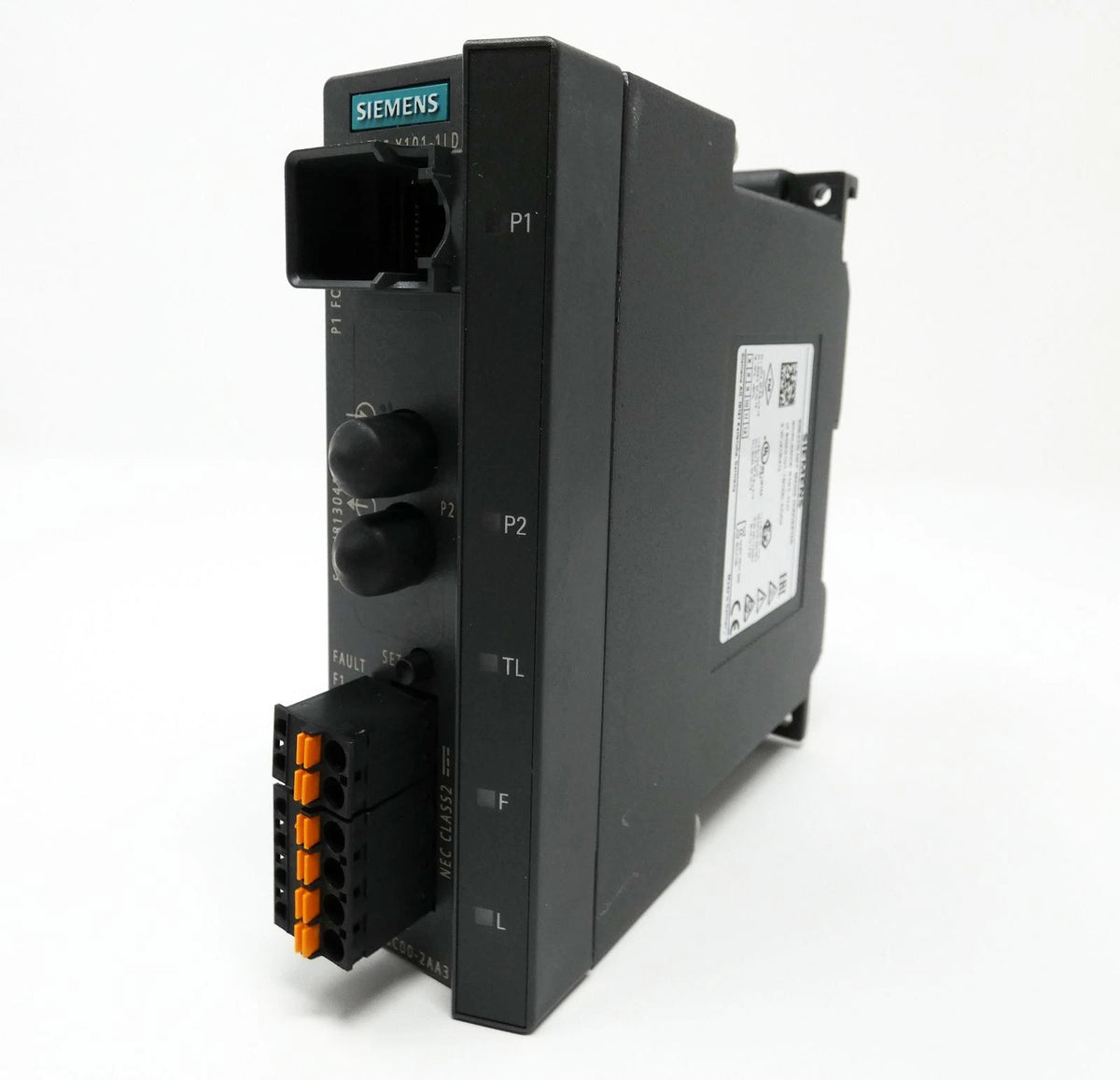

Siemens 6GK5101-1BC00-2AA3 SCALANCE X101-1LD Industrial Ethernet Media Converter
- Regular price
- $1,235.00
- Sale price
- $1,235.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6GK5101-1BC00-2AA3
Description
The Siemens 6GK5101-1BC00-2AA3 is a SCALANCE X101-1LD IE unmanaged industrial Ethernet media converter designed to connect copper Ethernet networks to single-mode fiber-optic networks. It features one 10/100 Mbps RJ45 port and one 100 Mbps ST/BFOC optical interface, supporting industrial communication over fiber links of up to 26 km under suitable conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Industrial Networking Equipment |
| Part Number | 6GK5101-1BC00-2AA3 |
| Subcategory | Industrial Ethernet Media Converters |
| Product Family | SCALANCE X-100 |
| Model | X101-1LD IE |
| Product Type | Unmanaged Ethernet Media Converter |
| Copper Interface | 1 × RJ45, 10/100 Mbps |
| Fiber Interface | 1 × 100 Mbps single-mode, ST/BFOC |
| Maximum Optical Range | Up to 26 km, depending on fiber |
| Nominal Supply Voltage | 24 V DC |
| Supply Voltage Range | 18–32 V DC |
| Maximum Current Consumption | 0.12 A |
| Power Dissipation | 3 W |
| Protection Rating | IP30 |
| Operating Temperature | −10°C to +60°C |
| Dimensions (W × H × D) | 40 × 125 × 124 mm |
| Mounting | DIN rail, wall, S7-300 rail |
| Weight | 1.21 lb |
Information About 6GK5101-1BC00-2AA3
The 6GK5101-1BC00-2AA3 belongs to the Siemens SCALANCE X-100 family of unmanaged industrial networking devices. It operates from a 24 V DC nominal supply, with an allowable range of 18–32 V DC. LED diagnostics and a configurable signaling contact support network status monitoring. The compact unit supports DIN-rail, wall, and S7-300 rail mounting for integration into compatible industrial installations.
Key Features:
-
Media Conversion: Connects copper Ethernet to single-mode fiber-optic networks.
-
RJ45 Interface: One 10/100 Mbps Ethernet port.
-
Fiber Interface: One 100 Mbps single-mode optical port with ST/BFOC connection.
-
Optical Link Range: Supports distances up to 26 km, depending on fiber and link conditions.
-
Power Supply: Operates on 24 V DC nominal, with an 18–32 V DC range.
-
Diagnostics: Includes LED status indicators and a signaling contact.
-
Industrial Mounting: Supports 35 mm DIN rail, wall, and S7-300 rail installation.
-
Protection Rating: IP30 enclosure protection.
The 6GK5101-1BC00-2AA3 delivers the network connectivity and fiber conversion required for compatible industrial Ethernet installations.
