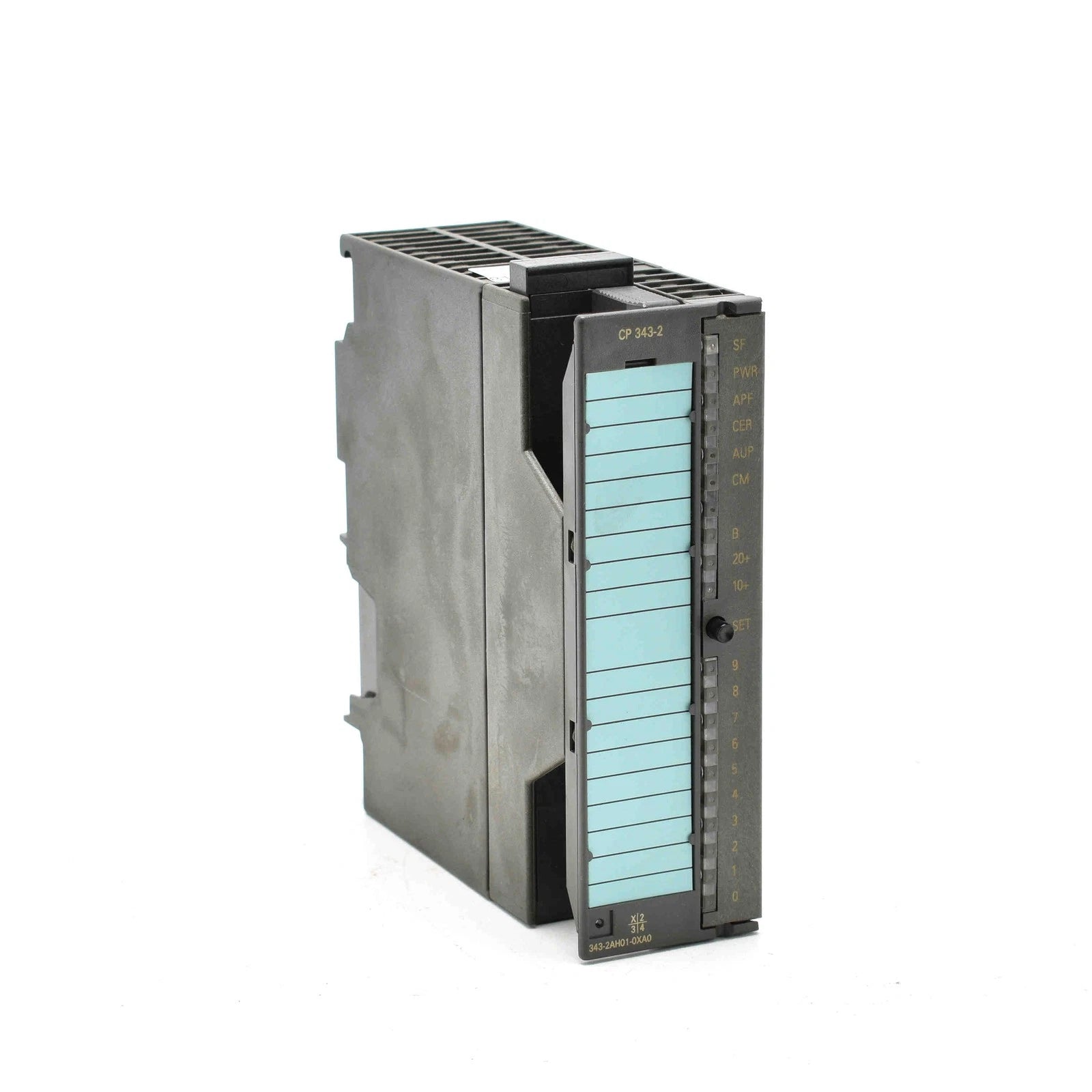

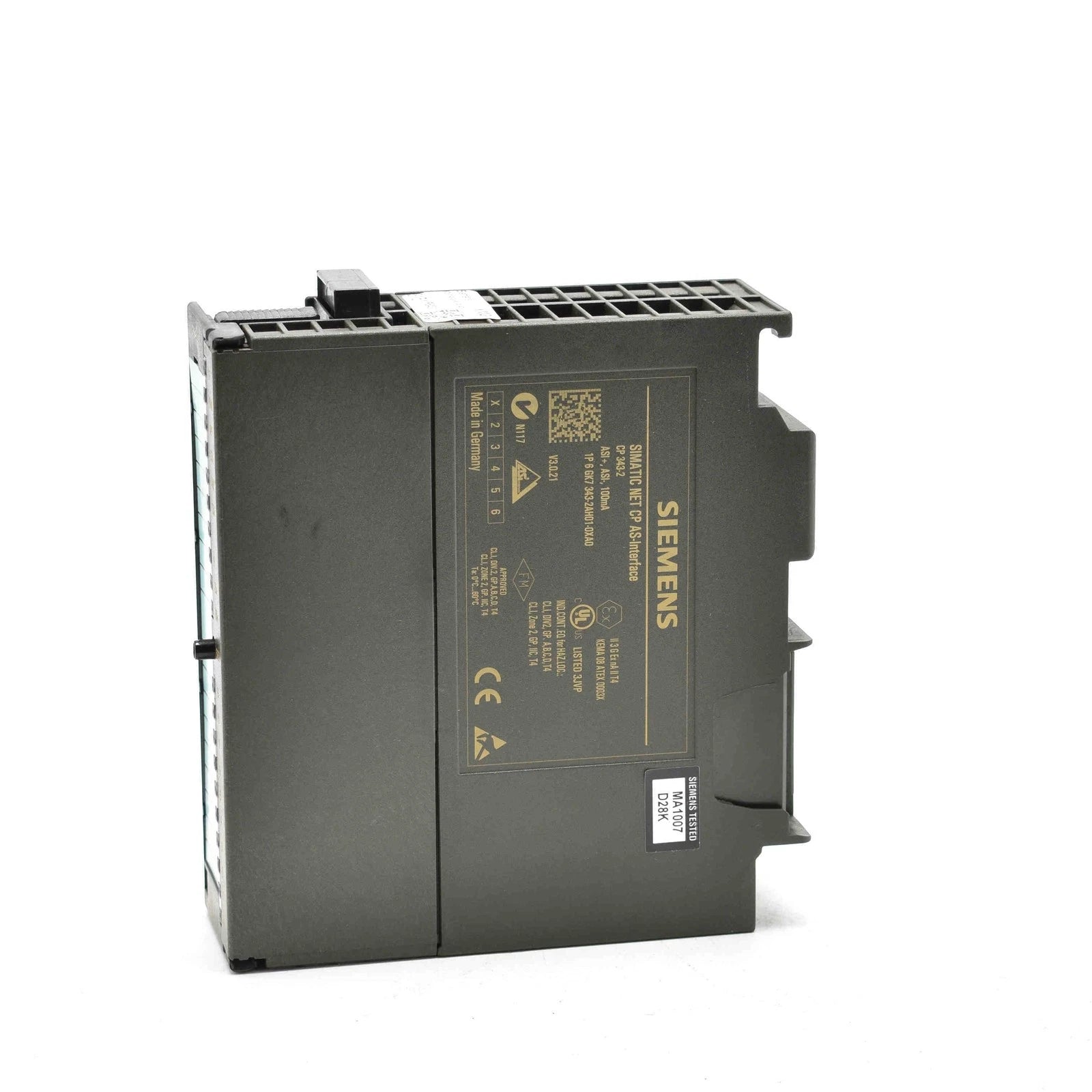

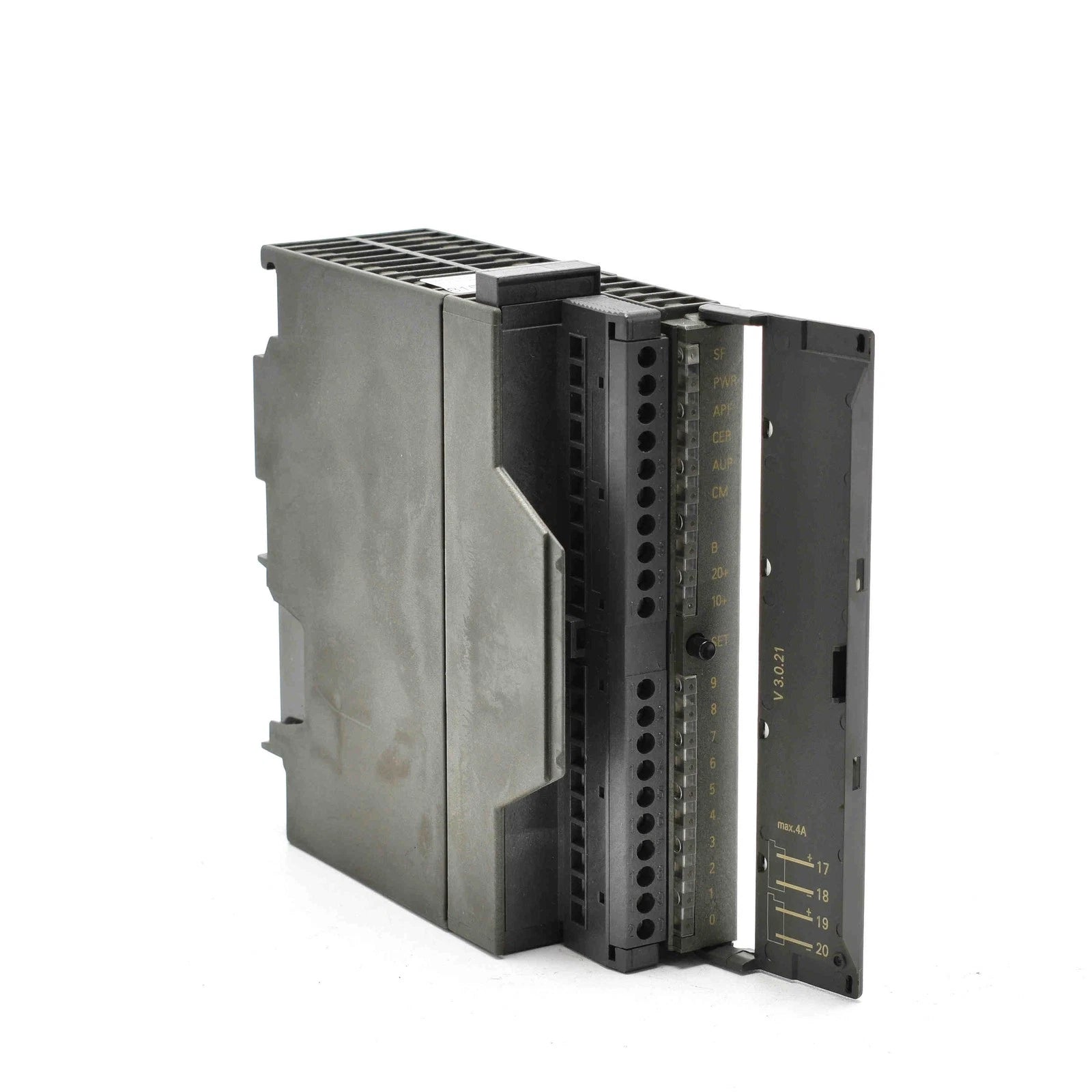

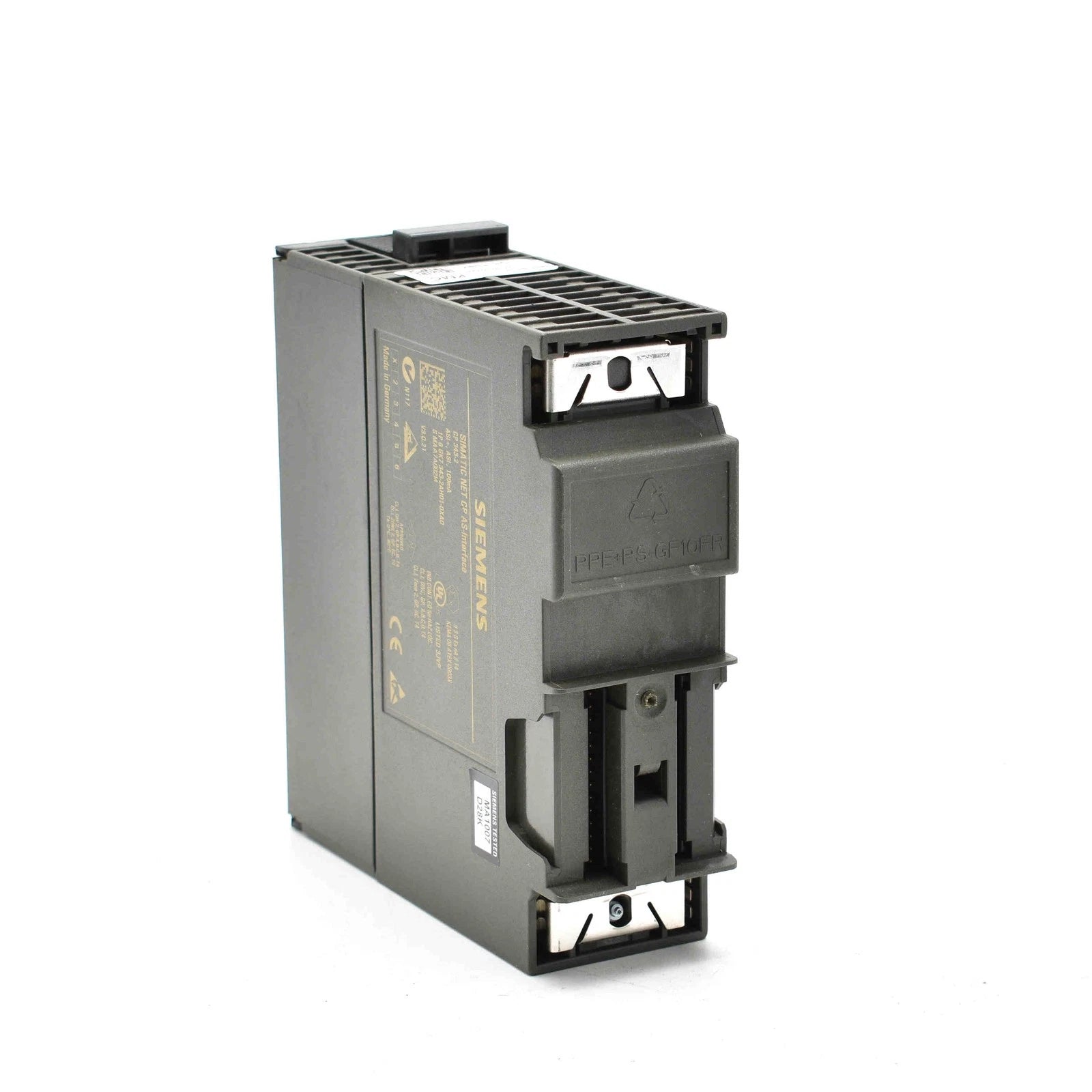

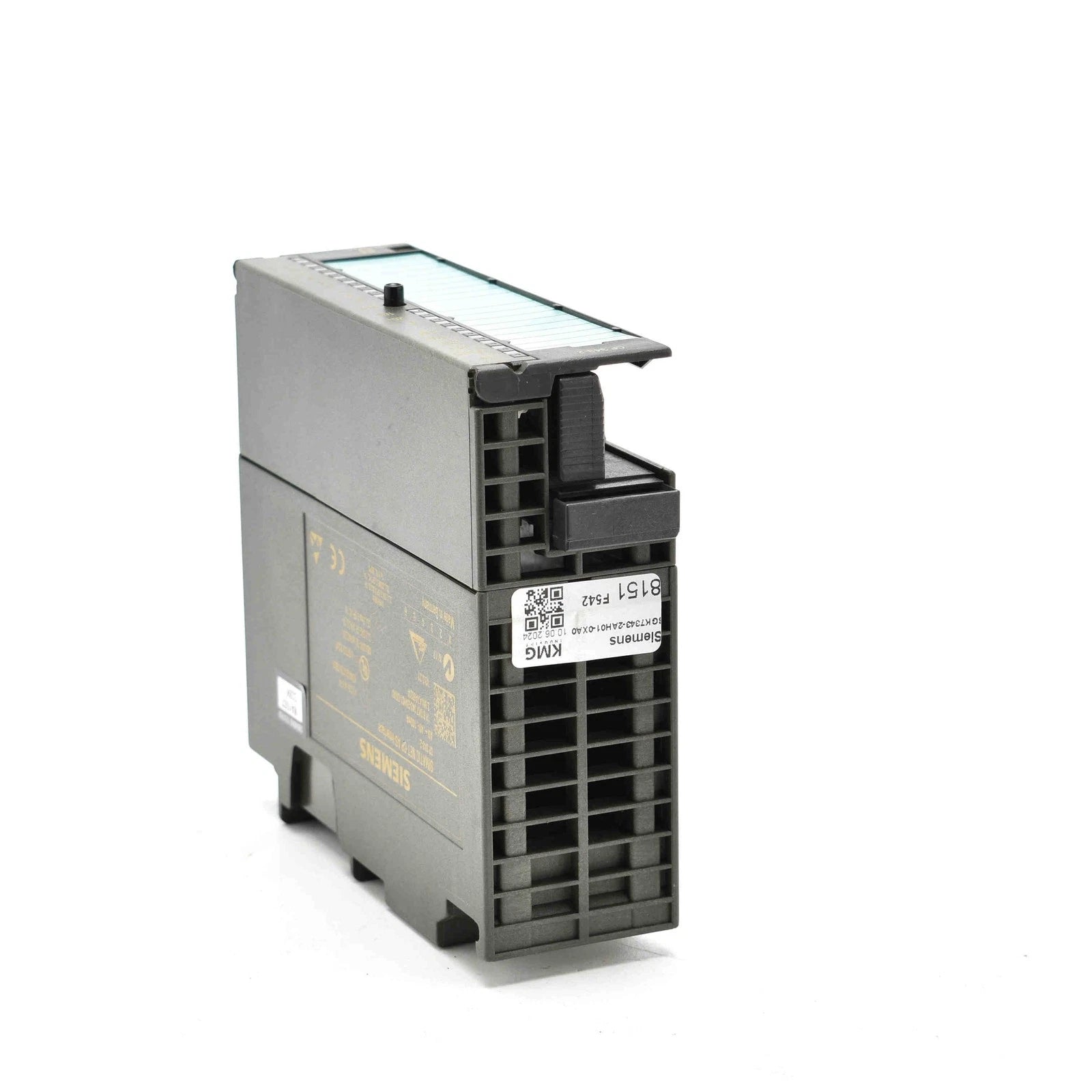

Siemens 6GK7343-2AH01-0XA0 CP 343-2 AS-i V3.0 Communication Processor S7-300
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6GK7343-2AH01-0XA0
Description
The Siemens 6GK7343-2AH01-0XA0 is a SIMATIC NET CP 343-2 communications processor designed for connecting S7-300 and ET 200M systems to AS-Interface networks. It enables efficient data exchange and control of AS-i devices using AS-i specification V3.0. This module ensures reliable integration of field-level sensors and actuators into industrial automation systems.
ย
ย
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Industrial Automation |
| Part Number | 6GK7343-2AH01-0XA0 |
| Subcategory | Communication Processors |
| Series | SIMATIC NET CP 343-2 |
| Interface Type | AS-Interface Master |
| AS-i Specification | V3.0 |
| Master Profile | M4 |
| Number of AS-i Interfaces | 1 |
| Max AS-i Slaves | 62 |
| Max Inputs | 496 |
| Max Outputs | 496 |
| Cycle Time | 5 ms (31 slaves), 10 ms (62 slaves) |
| Data Transmission | S7-300 backplane bus |
| Electrical Connection | 20-pin front connector |
| Power Supply | Via backplane bus |
| Current Consumption | 100 mA (AS-i), 200 mA (backplane max) |
| Power Loss | 4 W |
| Insulation Voltage | 500 V |
| Protection Rating | IP20 |
| Mounting Type | S7-300 Rail Mount |
| Operating Temperature | 0 ยฐC to +60 ยฐC (horizontal), 0 ยฐC to +40 ยฐC (vertical) |
| Storage Temperature | -40 ยฐC to +70 ยฐC |
| Relative Humidity | Up to 95% |
| Dimensions (W x H x D) | 40 x 125 x 120 mm |
| Weight | Approx. 0.35 kg |
ย
ย
Information About 6GK7343-2AH01-0XA0
The 6GK7343-2AH01-0XA0 is part of the SIMATIC NET CP 343-2 series, developed for seamless communication between Siemens PLC systems and AS-Interface networks. It installs directly into the S7-300 rack and communicates via the backplane bus, providing efficient data handling and control. The module supports AS-i master profile M4 according to AS-i V3.0, allowing connection of up to 62 slaves and enabling extensive I/O expansion. With integrated diagnostics, galvanic isolation, and redundancy capability when used with IM153, it is well-suited for industrial automation, material handling, and process control applications.
Key Features:
- AS-Interface Master Module: Enables communication between S7-300/ET 200M and AS-i networks
- AS-i Specification V3.0: Supports modern AS-Interface communication standards
- High Slave Capacity: Connects up to 62 AS-i slaves for distributed I/O control
- Integrated with S7-300: Direct installation via backplane bus for seamless operation
- AS-i Master Profile M4: Supports advanced master functionality and diagnostics
- Fast Cycle Time: 5 ms (31 slaves) and 10 ms (62 slaves) for responsive control
- Redundancy Capability: Supports redundant configurations with IM153 modules
- Galvanic Isolation: Ensures electrical protection and signal integrity
- LED Status Indicators: Provides clear diagnostics for RUN, error, and communication states
- Efficient Power Consumption: Low power loss of approximately 4 W
- Flexible Configuration: Configurable via STEP 7 and command interface
- Robust Industrial Design: Built for continuous operation in automation environments
The 6GK7343-2AH01-0XA0 delivers the reliability and precision required for AS-Interface communication and distributed control in industrial automation systems.
