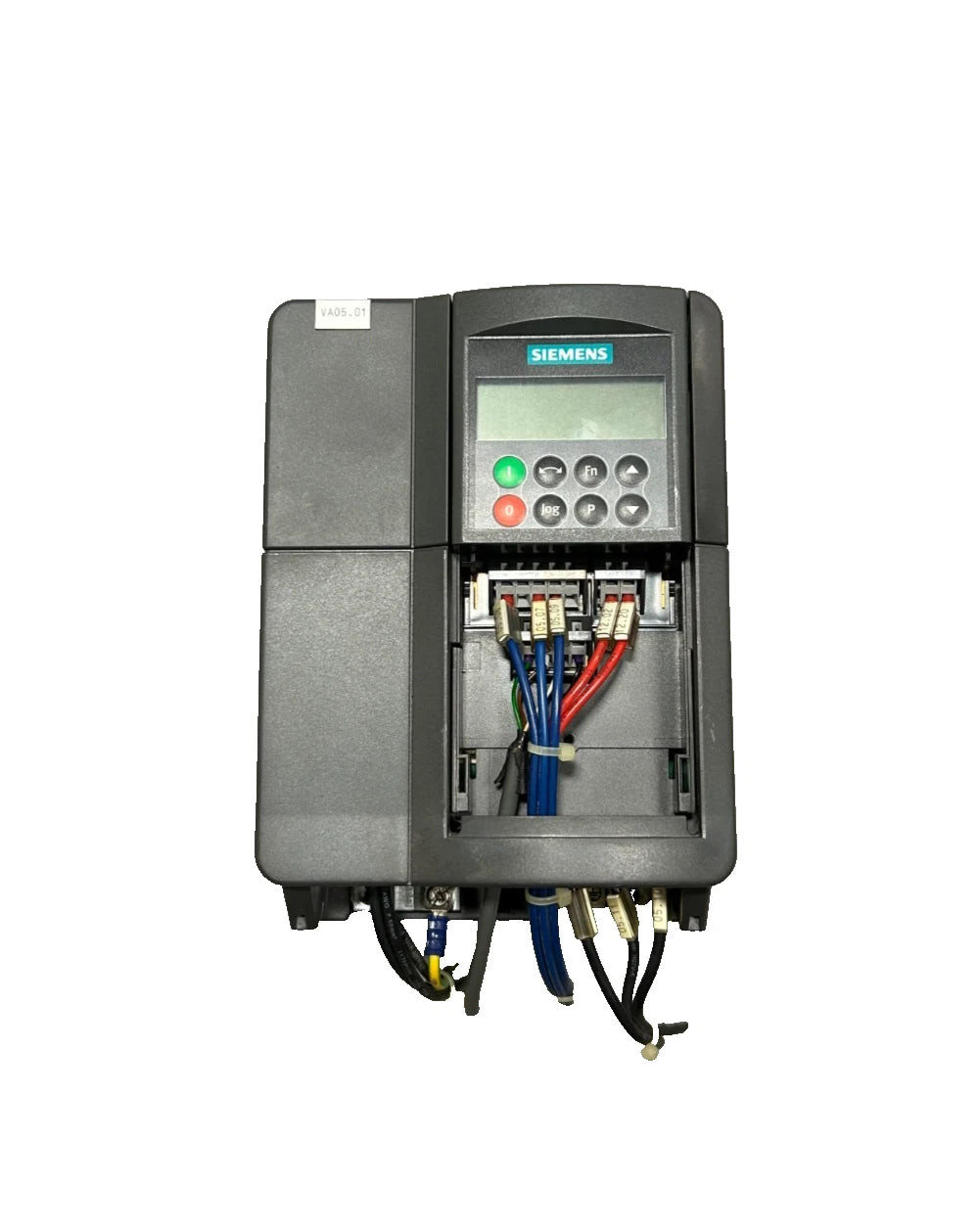

Siemens 6SE6420-2AD24-0BA1 MICROMASTER 420 4 Kilowatt Frequency Converter with Class A Filter
- Regular price
- $845.00
- Sale price
- $845.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6SE6420-2AD24-0BA1
Description
The Siemens 6SE6420-2AD24-0BA1 is a MICROMASTER 420 frequency converter designed for variable-speed control of three-phase alternating-current motors in industrial machinery and equipment. It provides 4 kilowatts of output power, a rated output current of 10.2 amperes, and an adjustable output frequency up to 650 hertz from a 380–480 volt three-phase supply.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Drives |
| Part Number | 6SE6420-2AD24-0BA1 |
| Subcategory | Drive |
| Product Family | MICROMASTER 420 |
| Product Type | Frequency Converter |
| Rated Output Power | 4 kilowatts |
| Input Voltage | 380–480 volts alternating current, three phase, ±10 percent |
| Input Frequency | 47–63 hertz |
| Rated Input Current | 12.8 amperes |
| Rated Output Current | 10.2 amperes |
| Maximum Output Frequency | 650 hertz |
| Overload Capacity | 150 percent for 60 seconds |
| Integrated Filter | Class A Electromagnetic Compatibility Filter |
| Control Inputs and Outputs | 3 Digital Inputs, 1 Analog Input, 1 Analog Output, 1 Relay Output |
| Frame Size | Frame Size B |
| Degree of Protection | IP20 / UL Open Type |
| Dimensions | 202 × 149 × 172 millimeters |
| Operating Temperature | -10 to +50 degrees Celsius without Operator Panel |
| Production Status | Discontinued by Manufacturer October 1, 2019 |
| Weight | 7.30 lbs |
Information About 6SE6420-2AD24-0BA1
The 6SE6420-2AD24-0BA1 is a Siemens MICROMASTER 420 frequency converter developed for general industrial motor-speed and process-control applications. Its compact Frame Size B construction incorporates a Class A electromagnetic compatibility filter and an IP20 enclosure for installation in protected electrical cabinets and similar environments. The drive operates from a three-phase 380–480 volt alternating-current supply at 47–63 hertz and provides a 4-kilowatt output with 150 percent overload capability for 60 seconds. It also provides three digital inputs, one analog input, one analog output, and one relay output for connection to external automation and control equipment.
Key Features:
- 4-Kilowatt Motor Control: Provides a rated output power of 4 kilowatts for compatible three-phase alternating-current motors.
- Three-Phase Power Input: Operates from a 380–480 volt alternating-current three-phase supply with a permitted voltage tolerance of ±10 percent.
- Wide Frequency Range: Provides an adjustable motor output frequency from 0 to 650 hertz for variable-speed applications.
- 10.2-Ampere Output: Supplies a nominal output current of 10.2 amperes at the rated operating point.
- Overload Capability: Supports 150 percent of rated load for 60 seconds for applications requiring temporary increased motor torque.
- Integrated Class A Filter: Incorporates a Class A electromagnetic compatibility filter as part of the drive configuration.
- Control Connections: Provides three digital inputs, one analog input, one analog output, and one relay output for external control and status functions.
- IP20 Construction: Uses an IP20 enclosure with a specified operating ambient temperature range of -10 to +50 degrees Celsius.
The 6SE6420-2AD24-0BA1 delivers the reliability and precision required for variable-speed motor operation and controlled power conversion in industrial machinery and process equipment.
