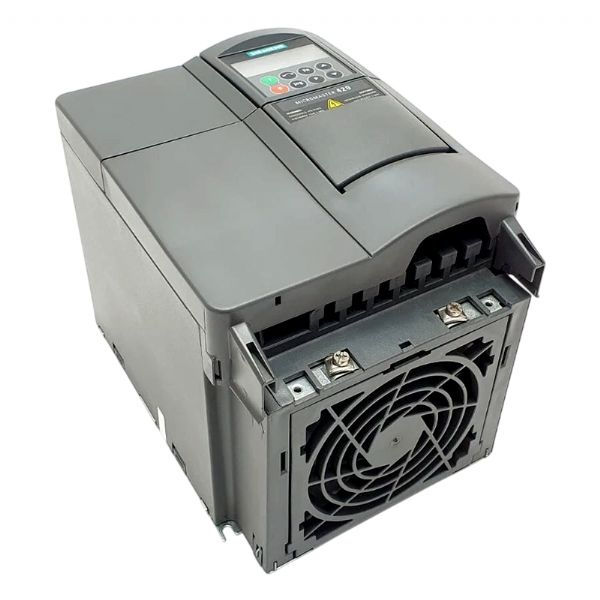

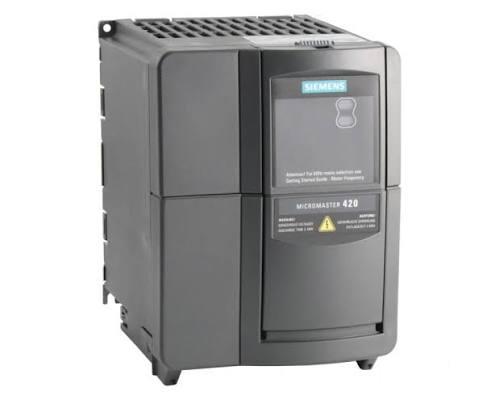

Siemens 6SE6420-2UD27-5CA1 MICROMASTER 420 7.5kW AC Drive
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6SE6420-2UD27-5CA1
Description
The Siemens 6SE6420-2UD27-5CA1 is a MICROMASTER 420 variable-frequency drive for three-phase 380–480 V AC motor applications. It provides 7.5 kW output power with constant- or square-law torque operation and IP20 protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Variable Frequency Drives |
| Part Number | 6SE6420-2UD27-5CA1 |
| Subcategory | AC Drives |
| Series | MICROMASTER 420 |
| Input Voltage | 380–480 V AC ±10% |
| Input Phase | 3 AC |
| Input Frequency | 47–63 Hz |
| Rated Power | 7.5 kW |
| Constant Torque Overload | 150% for 60 seconds |
| Protection Rating | IP20 |
| Digital Inputs | 3 |
| Analog Inputs | 1 |
| Analog Outputs | 1 |
| Relay Outputs | 1 |
| Dimensions | 245 × 185 × 195 mm |
| Weight | 5.00 kg |
Information About 6SE6420-2UD27-5CA1BCM-MS/TP
The 6SE6420-2UD27-5CA1 belongs to the Siemens MICROMASTER 420 drive family and is supplied without an integrated filter. It accepts a three-phase input between 380 and 480 V AC over a 47–63 Hz frequency range. The drive supports 150% overload for 60 seconds under constant-torque operation and provides one analog input, one analog output, three digital inputs, and one relay output. The unit has an IP20 enclosure and is intended for industrial motor-speed and torque control applications.
Key Features:
- MICROMASTER 420 Series: Part of Siemens' MICROMASTER 420 variable-frequency drive family.
- 7.5 kW Output: Provides a rated motor power of 7.5 kW for the specified application.
- Three-Phase Input: Designed for 380–480 V AC three-phase supply.
- Constant Torque: Supports 150% overload for 60 seconds under constant-torque operation.
- Variable Torque: Provides 7.5 kW capability for square-law torque applications.
- I/O Interface: Includes three digital inputs, one analog input, one analog output, and one relay output.
- IP20 Enclosure: Uses an IP20-rated enclosure for protected industrial installation.
- Compact Frame: Measures approximately 245 × 185 × 195 mm in height, width, and depth.
The 6SE6420-2UD27-5CA1 delivers the reliability and precision required for variable-speed industrial motor control.
