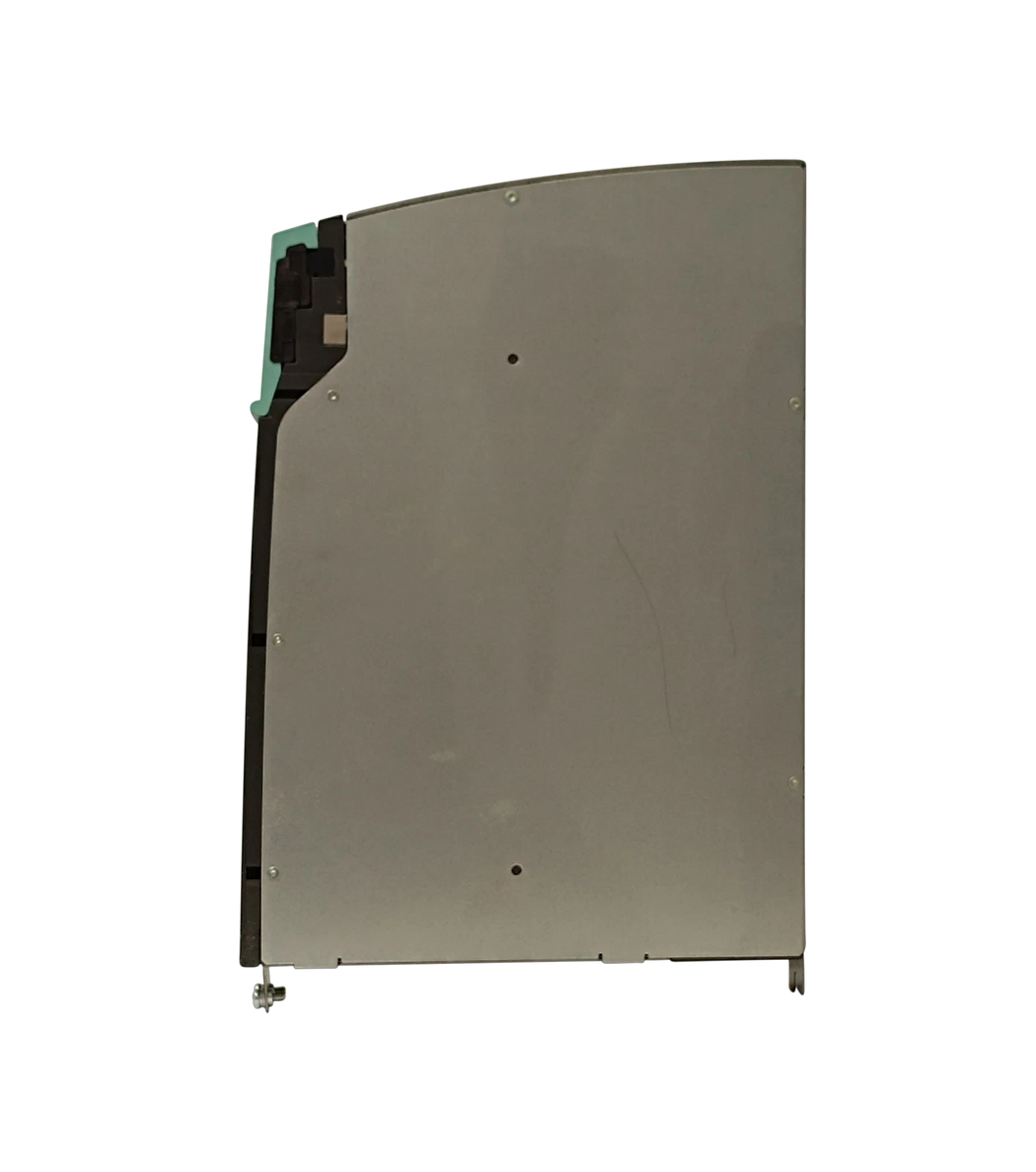

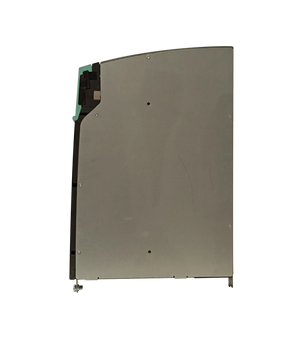

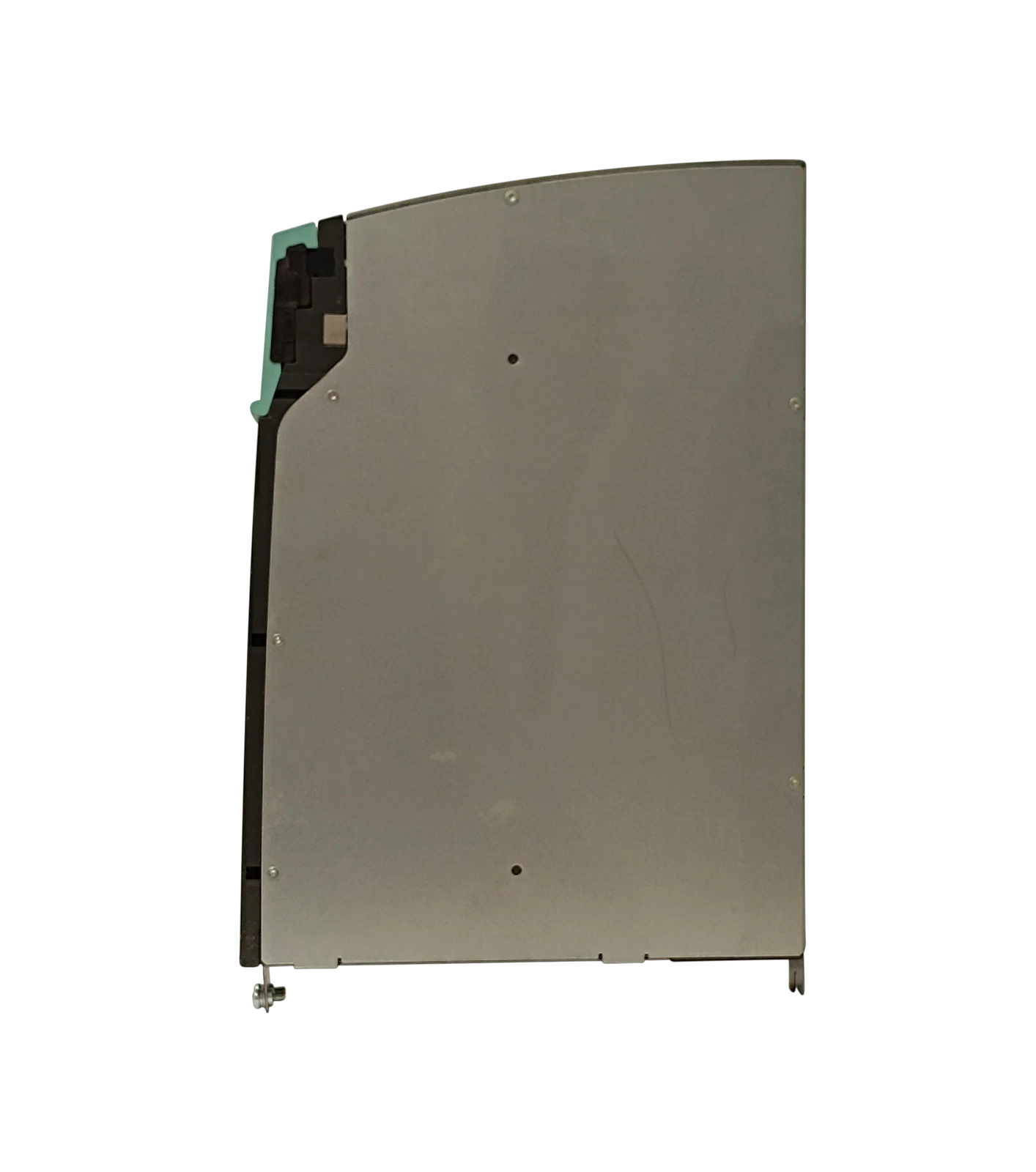

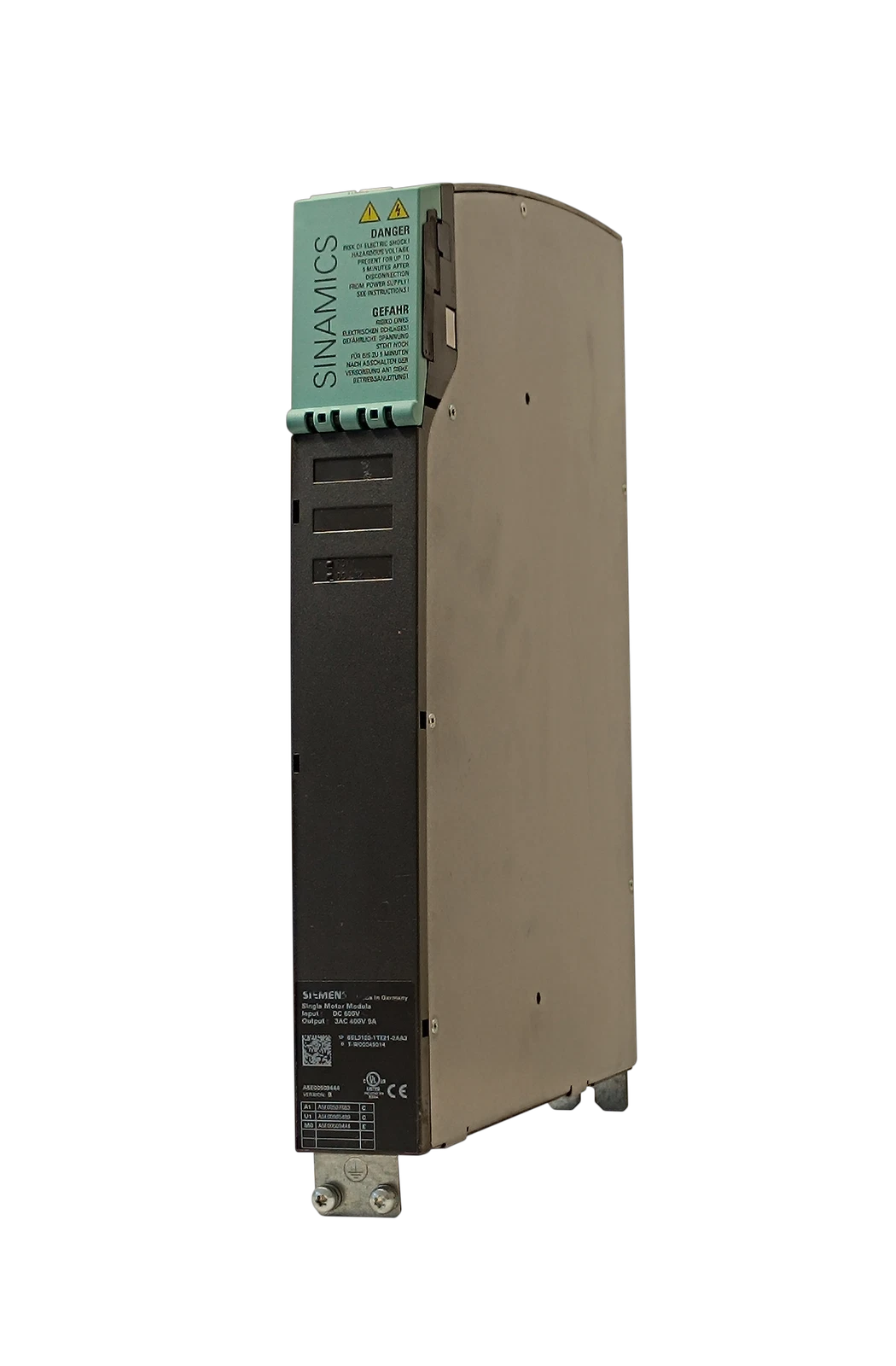

Siemens 6SL3120-1TE21-0AA3 SINAMICS S120 4.8kW Single Motor Module 9A Booksize Drive

Description

The Siemens 6SL3120-1TE21-0AA3 is a SINAMICS S120 single motor module designed for high-performance industrial drive systems requiring precise motor control. This unit delivers 4.8 kW (5 HP) of power with a rated current of 9 A, making it suitable for demanding automation and motion control applications. Built in a compact booksize format, it ensures efficient operation with integrated cooling and advanced pulse control technology.

Technical Specifications

Information About 6SL3120-1TE21-0AA3

The 6SL3120-1TE21-0AA3 is part of the Siemens SINAMICS S120 series, engineered for modular and scalable drive solutions in industrial environments. It features a robust design with internal air cooling and supports DC link voltages from 510 to 720 V, ensuring reliable operation in high-power systems. The module integrates seamlessly with Siemens automation platforms via DRIVE-CLiQ communication, enabling precise coordination and diagnostics. Designed for use in machine tools, automation systems, and material handling equipment, it incorporates optimized pulse patterns and safety-integrated functions for enhanced control and protection.

Key Features:

• Single Motor Module Design: Supports precise control of one motor in modular drive systems
• High Power Output: Delivers 4.8 kW (5 HP) for demanding industrial applications
• Rated Current Capacity: Operates at 9 A with a base load current of 7.7 A
• Wide DC Link Voltage Range: Accepts 510–720 V DC input for flexible system integration
• Three-Phase Output: Provides 400 VAC output suitable for industrial motors
• Booksize Compact Format: Space-saving design for cabinet installation
• Internal Air Cooling: Efficient heat dissipation without external cooling requirements
• DRIVE-CLiQ Interface: Enables fast communication and diagnostics within SINAMICS systems
• Optimized Pulse Patterns: Improves motor performance, precision, and efficiency
• Integrated Safety Functions: Supports extended Safety Integrated features for system protection
• Low Noise Operation: Sound pressure level below 60 dB for quieter operation
• Integrated Motor Brake Control: 24 V DC, 2 A brake connection via motor connector
• Robust Industrial Construction: Designed for continuous operation in demanding environments

The 6SL3120-1TE21-0AA3 delivers the reliability and precision required for advanced motion control and industrial automation systems.
