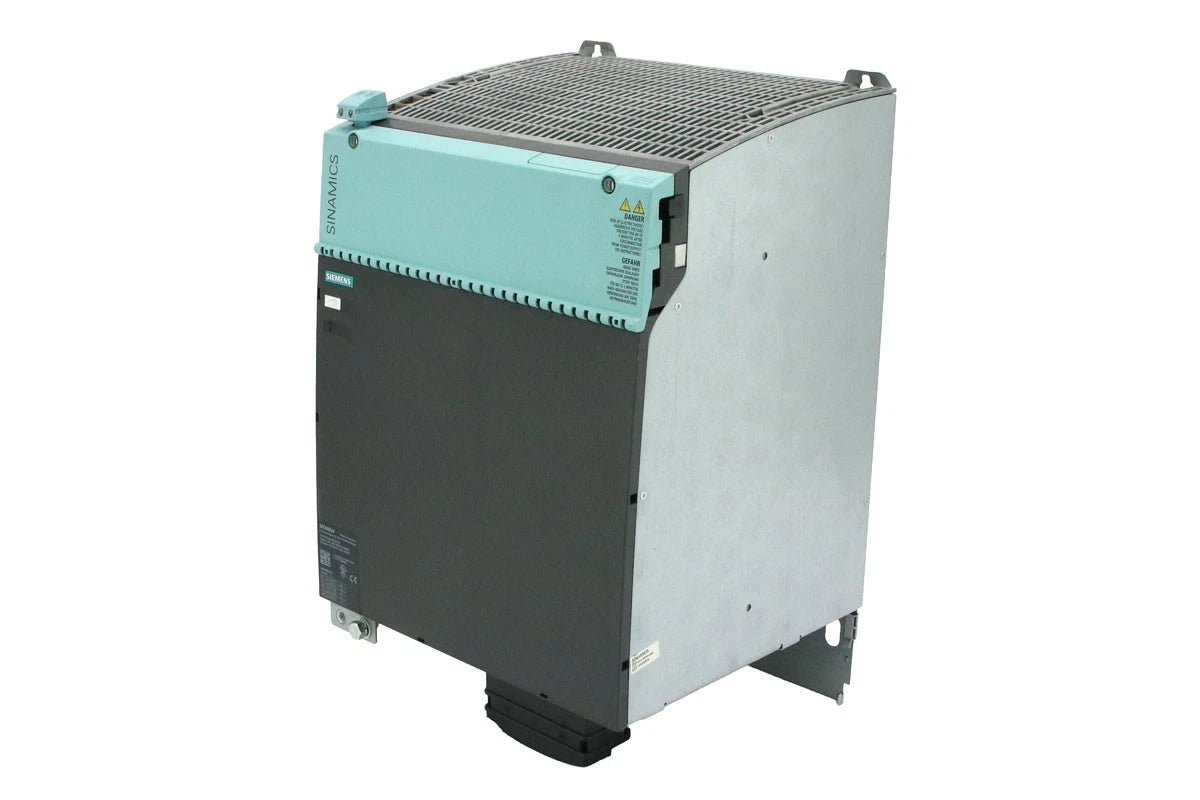

Siemens 6SL3130-7TE28-0AA3 SINAMICS S120 Active Line Module 133A 380–480V AC

The Siemens 6SL3130-7TE28-0AA3 is an Active Line Module from the SINAMICS S120 series designed to provide regulated DC-link power for industrial drive systems. It operates from a 3-phase 380–480 V AC, 50/60 Hz input and provides a nominal 600 V DC output with a rated current of 133 A and a power rating of 80 kW. The module converts incoming AC power into a controlled DC supply for connected SINAMICS S120 motor modules and other drive components. It uses internal air cooling to support reliable operation under demanding industrial load conditions and integrates into modular SINAMICS S120 configurations for machinery, production equipment, multi-axis motion systems, and industrial automation applications. Its high-power capacity, regulated power conversion, and robust industrial construction make the 6SL3130-7TE28-0AA3 a reliable solution for applications requiring stable and efficient DC-link power.

• Active Line Module: Provides regulated DC-link power for Siemens SINAMICS S120 modular drive systems.
• Power Rating: Delivers an 80 kW power rating for demanding industrial drive applications.
• Three-Phase Input: Operates from a 3-phase 380–480 V AC power supply at 50/60 Hz.
• DC Output: Provides a nominal 600 V DC output for supplying connected SINAMICS S120 drive components.
• Rated Current: Supports a rated DC output current of 133 A.
• DC-Link Voltage Range: Designed for operation within a DC-link range of approximately 510–720 V DC.
• Auxiliary Power Supply: Uses a 24 V DC auxiliary supply with a tolerance of -15% to +20%.
• Internal Air Cooling: Incorporates internal air cooling for thermal management during continuous industrial operation.
• SINAMICS S120 Compatibility: Designed specifically for integration into Siemens SINAMICS S120 modular drive systems.
• Industrial Construction: Built for continuous operation in industrial machinery and automation environments.
• Compliance: Designed in accordance with CE and cULus requirements.

The 6SL3130-7TE28-0AA3 delivers the reliability and power conversion performance required for high-power SINAMICS S120 drive systems and industrial automation applications.
