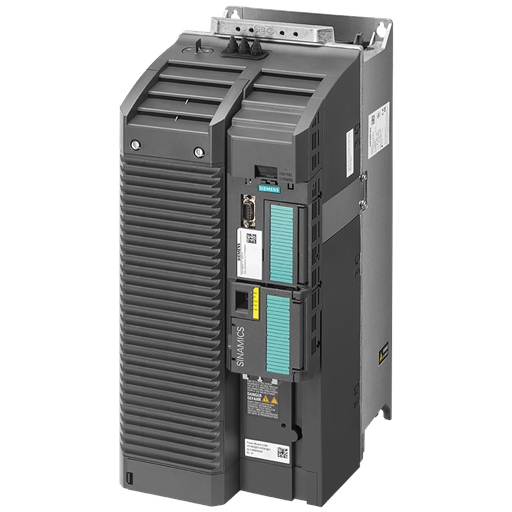

Siemens 6SL3210-1KE24-4UF1 SINAMICS G120C PROFINET Frequency Converter
- Regular price
- $1,852.00
- Sale price
- $1,852.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6SL3210-1KE24-4UF1
Description
The Siemens 6SL3210-1KE24-4UF1 is a SINAMICS G120C compact frequency converter rated at 22 kW for three-phase motor control. It combines PROFINET communication, integrated Safe Torque Off, and configurable control connections in an unfiltered, frame-size FSD unit.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Controls & Indicators |
| Part Number | 6SL3210-1KE24-4UF1 |
| Subcategory | Power Converter |
| Product Family | SINAMICS G120C |
| Converter Type | Compact AC frequency converter |
| Rated Power | 22 kW |
| Overload Capability | 150% for 3 seconds |
| Input Supply | Three-phase, 380–480 V AC |
| Input Voltage Tolerance | +10%/−20% |
| Input Frequency | 47–63 Hz |
| Line Filter Configuration | Unfiltered |
| Integrated Fieldbus | PROFINET |
| Digital I/O | 6 digital inputs; 2 digital outputs |
| Analog I/O | 1 analog input; 1 analog output |
| Integrated Safety Function | Safe Torque Off (STO) |
| Protection Rating | IP20 / UL Open Type |
| Frame Size and Dimensions | FSD; 472 × 200 × 237 mm (H × W × D) |
| External Control Supply | 24 V DC |
| Weight | 46.00 lbs |
Information About 6SL3210-1KE24-4UF1
The 6SL3210-1KE24-4UF1 is part of Siemens’ SINAMICS G120C drive family for industrial motor applications. It accepts a three-phase 380–480 V AC supply with a specified voltage tolerance of +10%/−20%. Six digital inputs, two digital outputs, one analog input, and one analog output provide connections for machine control signals. Its IP20, UL Open Type construction requires installation within a suitable enclosure, with external 24 V power provided as specified.
Key Features:
- Motor Power Rating: Provides a rated output power of 22 kW for appropriately selected motor applications.
- Short-Term Overload: Supports 150% overload for three seconds under the specified operating conditions.
- PROFINET Communication: Includes an integrated PROFINET interface for connection to compatible automation networks.
- Integrated Safe Torque Off: Provides an STO function for preventing torque generation when correctly implemented.
- Digital Control Connections: Includes six digital inputs and two digital outputs.
- Analog Signal Connections: Provides one analog input and one analog output for reference and monitoring signals.
- Unfiltered Configuration: Supplied without an integrated line interference filter.
- Defined Installation Size: Uses frame size FSD with dimensions of 472 × 200 × 237 mm.
The 6SL3210-1KE24-4UF1 delivers the reliability and precision required for networked motor control in industrial machinery and automated production systems.
