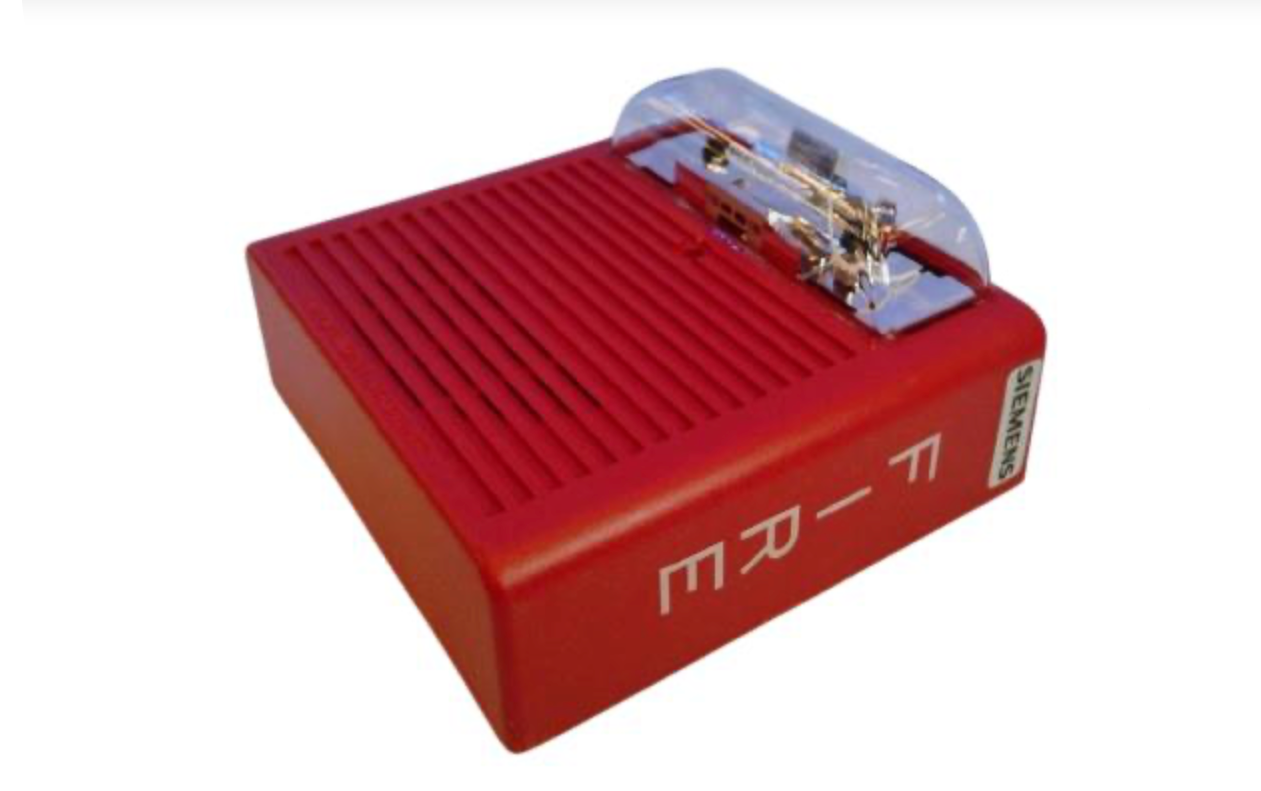

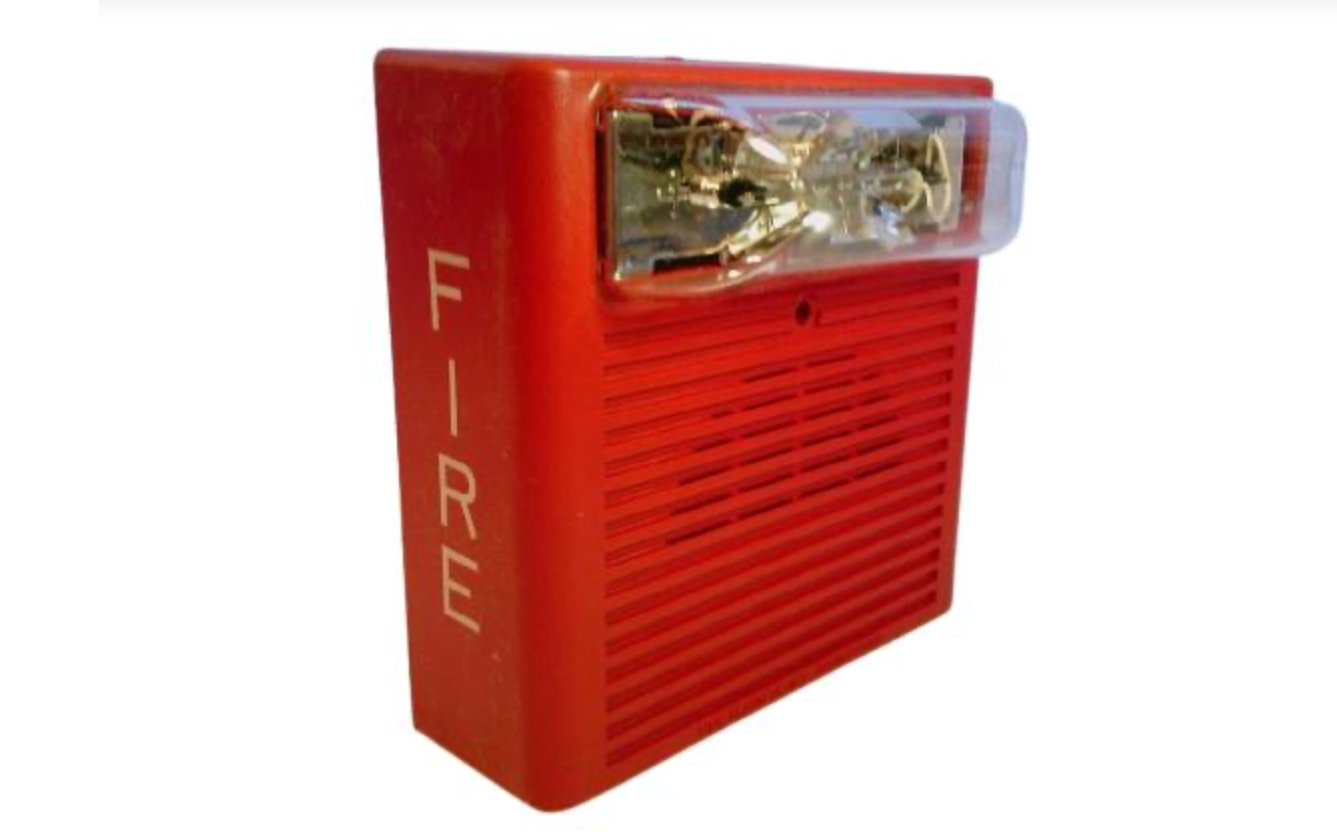

Siemens AS-HMC-R-WP Weatherproof 135 cd Horn Strobe for Fire Alarm Systems
- Regular price
- $269.00
- Sale price
- $269.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AS-HMC-R-WP
Description
The Siemens AS-HMC-R-WP is a weatherproof wall-mount horn/strobe designed to provide audible and visual emergency notification in outdoor and indoor fire alarm applications. It operates from a supervised NAC circuit and combines selectable horn output with a 135 cd visual strobe for synchronized signaling.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Fire Safety |
| Part Number | AS-HMC-R-WP |
| Subcategory | Fire Alarm |
| Product Series | AS Series |
| Product Type | Weatherproof Horn/Strobe |
| Mounting | Wall Mount |
| Installation Location | Indoor, Outdoor |
| Input Voltage | 16–33 VDC |
| Notification Circuit | Reverse-Polarity Supervised NAC |
| Candela Rating | 135 cd |
| Flash Rate | 1 Flash per Second |
| Horn Operation | Continuous or Temporal Code 3 |
| Sound Level Settings | 90 dBA, 95 dBA, 99 dBA |
| Color | Red |
| Strobe Synchronization | Compatible with Siemens Notification Systems |
| Listings | UL Listed, ULC Listed |
| Additional Approval | CSFM |
| Dimensions | 1.68 × 4.80 × 4.80 in |
| Weight | 0.50 lbs |
Information About AS-HMC-R-WP
The AS-HMC-R-WP is a Siemens AS Series weatherproof notification appliance designed for wall-mounted installation in indoor and outdoor environments. It operates over a 16–33 VDC input range and is compatible with standard reverse-polarity supervised notification appliance circuits. The integrated horn provides selectable continuous or temporal Code 3 operation with multiple sound output settings. Its strobe operates at one flash per second and is designed for use with compatible Siemens notification and fire alarm systems.
Key Features:
- Weatherproof Construction: Designed to withstand outdoor environmental exposure in suitable notification applications.
- Combined Horn/Strobe: Provides audible and visual emergency signaling from one wall-mounted appliance.
- 135 Candela Strobe: Delivers a high-intensity visual notification output.
- Selectable Audible Output: Supports 90 dBA, 95 dBA, and 99 dBA sound level settings.
- Code 3 Signaling: Supports temporal Code 3 or continuous horn operation.
- Regulated DC Operation: Operates within a 16–33 VDC input voltage range.
- One Flash Per Second: Provides a consistent visual flash rate for emergency notification.
- Supervised NAC Compatibility: Designed for use with standard reverse-polarity supervised notification appliance circuits.
The AS-HMC-R-WP delivers the reliability and precision required for audible and visual emergency notification in indoor and outdoor fire alarm systems.
