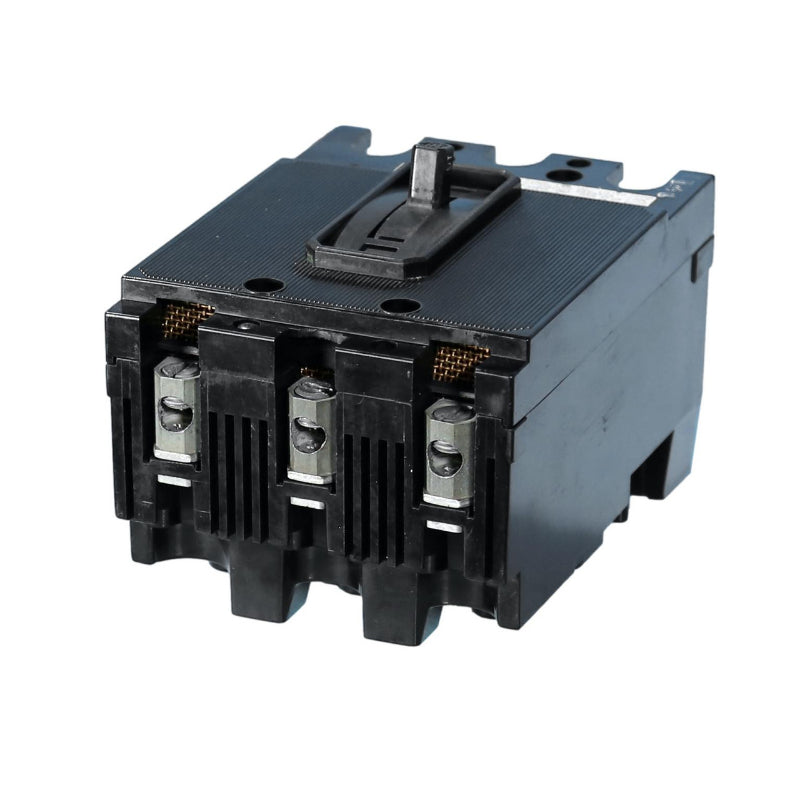

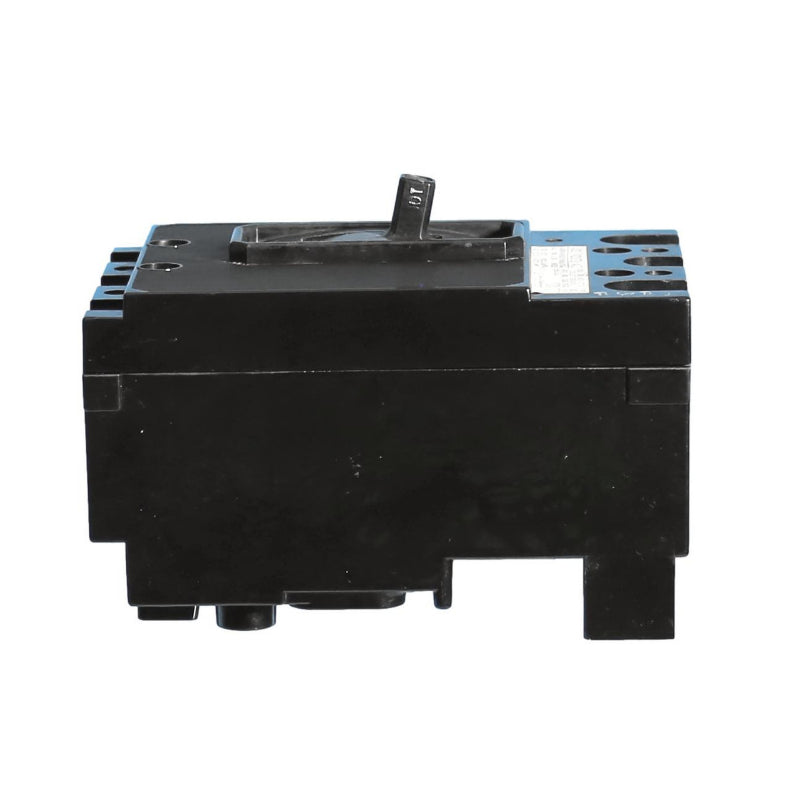

Siemens EH3-B050 50A 480V Molded Case Circuit Breaker
- Regular price
- $1,899.00
- Sale price
- $1,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EH3-B050
Description
The Siemens EH3-B050 is a three-pole molded case circuit breaker designed to protect electrical circuits against overloads and short circuits in industrial and commercial power distribution systems. It has a 50 A current rating and a 480 V AC voltage rating, with bolt-on mounting for compatible electrical panels. Its thermal-magnetic trip mechanism provides long-time and instantaneous protection for suitable three-phase electrical installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens / ITE |
| Category | Electrical Power Distribution |
| Part Number | EH3-B050 |
| Subcategory | Molded Case Circuit Breakers |
| Breaker Type | Molded Case Circuit Breaker (MCCB) |
| Rated Current | 50 A |
| Rated Voltage | 480 V AC |
| Number of Poles | 3 |
| Phase | 3-phase |
| Mounting Type | Bolt-on |
| Trip Mechanism | Thermal-magnetic |
| Trip Functions | Long-time and instantaneous |
| Frequency | 50/60 Hz |
| Shipping Dimensions | Approx. 6 × 4.5 × 3.75 in |
| Weight | 1.47 kg |
Information About EH3-B050
The Siemens EH3-B050 is an ITE/Siemens EH-frame molded case circuit breaker intended for low-voltage power distribution applications. It uses thermal-magnetic protection to respond to sustained overloads and short-circuit conditions. The three-pole design supports compatible three-phase systems, while the bolt-on connection allows installation in compatible panelboards and switchgear. This model is discontinued, so replacement applications should be checked against the existing equipment and breaker specifications.
Key Features:
- 50 A Current Rating: Designed for electrical circuits with a rated current of 50 amperes.
- 480 V AC Rating: Suitable for compatible 480 V three-phase power distribution systems.
- Three-Pole Configuration: Provides simultaneous switching and protection across three circuit poles.
- Thermal-Magnetic Trip Mechanism: Combines overload protection with instantaneous short-circuit response.
- Bolt-On Mounting: Supports installation in compatible electrical panelboards and switchgear.
- Long-Time Trip Function: Responds to sustained overload conditions according to the breaker trip characteristics.
- Instantaneous Trip Function: Responds to high-current fault conditions to help protect connected circuits.
- Legacy Equipment Compatibility: Intended for suitable ITE/Siemens EH-frame installations, subject to panel compatibility.
The Siemens EH3-B050 provides 50 A thermal-magnetic circuit protection for compatible three-phase industrial and commercial electrical distribution systems.
