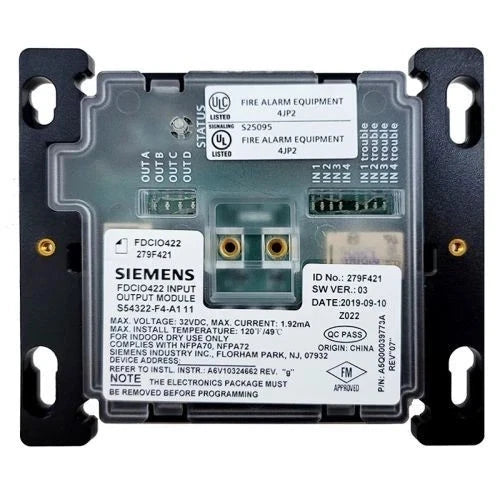

Siemens FDCIO422 4-Input 4-Output Addressable Interface Module
- Regular price
- $385.00
- Sale price
- $385.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FDCIO422
Description
The Siemens FDCIO422 is a four-input/four-output addressable interface module designed to connect dry-contact devices and external control equipment to compatible Siemens fire alarm control panels. It provides four programmable inputs and four relay outputs through one address, with supervised input circuits, polarity-insensitive SureWire™ technology, and integrated status indication.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Fire Detection |
| Part Number | FDCIO422 |
| Subcategory | Input/Output Interface Modules |
| Module Type | 4-Input / 4-Output Addressable Interface Module |
| Input Type | Normally Open or Normally Closed dry contacts |
| Input Configuration | Class A or Class B |
| Input Supervision | Open, short, and ground-fault supervision |
| Relay Type | Potential-free Form A latching relay contacts |
| Relay Rating | Up to 4 × 5 A at 30 VDC / 125 VAC, subject to load and temperature conditions |
| Operating Voltage | 12–32 VDC |
| Quiescent Current | 1 mA |
| Communication Protocol | FDnet |
| Loop Wiring | Two-wire addressable loop |
| Technology | SureWire™ polarity-insensitive technology |
| Addressing | Individual electronic addressing |
| Operating Temperature | 32–120°F (0–49°C) |
| Storage Temperature | -22–140°F (-30–60°C) |
| Operating Humidity | 5–85% RH, non-condensing |
| Maximum Input Cable Length | 200 ft |
| Maximum Line Size | 14 AWG |
| Minimum Line Size | 18 AWG |
| Mounting | One electrical back box |
| Approvals | UL, ULC, FM |
| Standards | UL 864, ULC-S527, FM 3010, UL 2572 |
| Stock Number | S54322-F4-A1 |
| Weight | 1 lb |
Information About FDCIO422
The FDCIO422 is an intelligent peripheral module used with Siemens Cerberus PRO, FireFinder XLS, and compatible Desigo Fire Safety systems. Its four inputs can monitor normally open or normally closed dry contacts and can be configured for Alarm, Trouble, Supervisory, or Status functions through the fire alarm control panel. The four programmable outputs use potential-free Form A relay contacts for controlling or shunting external equipment. The module uses two-wire addressable-loop communication with individual electronic addressing and microprocessor-controlled signal evaluation.
Key Features:
- Four Input Channels: Provides four independently configurable inputs for monitoring dry-contact devices.
- Four Relay Outputs: Provides four programmable potential-free Form A relay contacts for external control functions.
- Class A/B Support: Supports Class A and Class B input-circuit wiring configurations.
- Input Supervision: Monitors input lines for open, short, and ground-fault conditions.
- SureWire™ Technology: Provides polarity-insensitive operation on compatible addressable loop wiring.
- Individual Addressing: Uses one address for the four-input/four-output module with separate input and relay functions.
- LED Indication: Provides individual LED status indication for inputs and outputs plus a general device-status LED.
- Flexible Installation: Mounts in a single electrical back box with front-accessible programming and wiring terminals.
The FDCIO422 delivers the reliability and precision required for addressable fire alarm monitoring, control, and external equipment interfacing.
