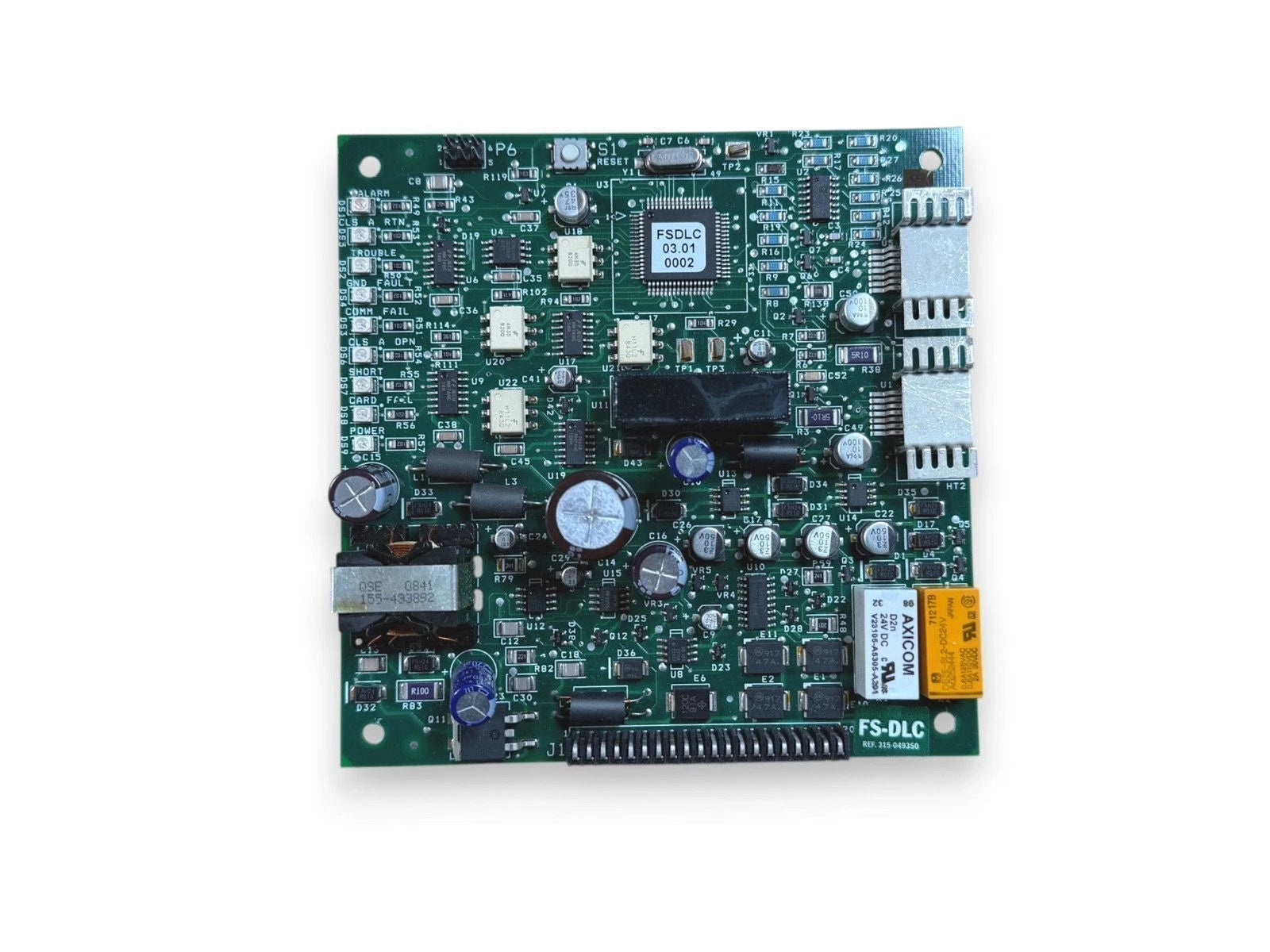

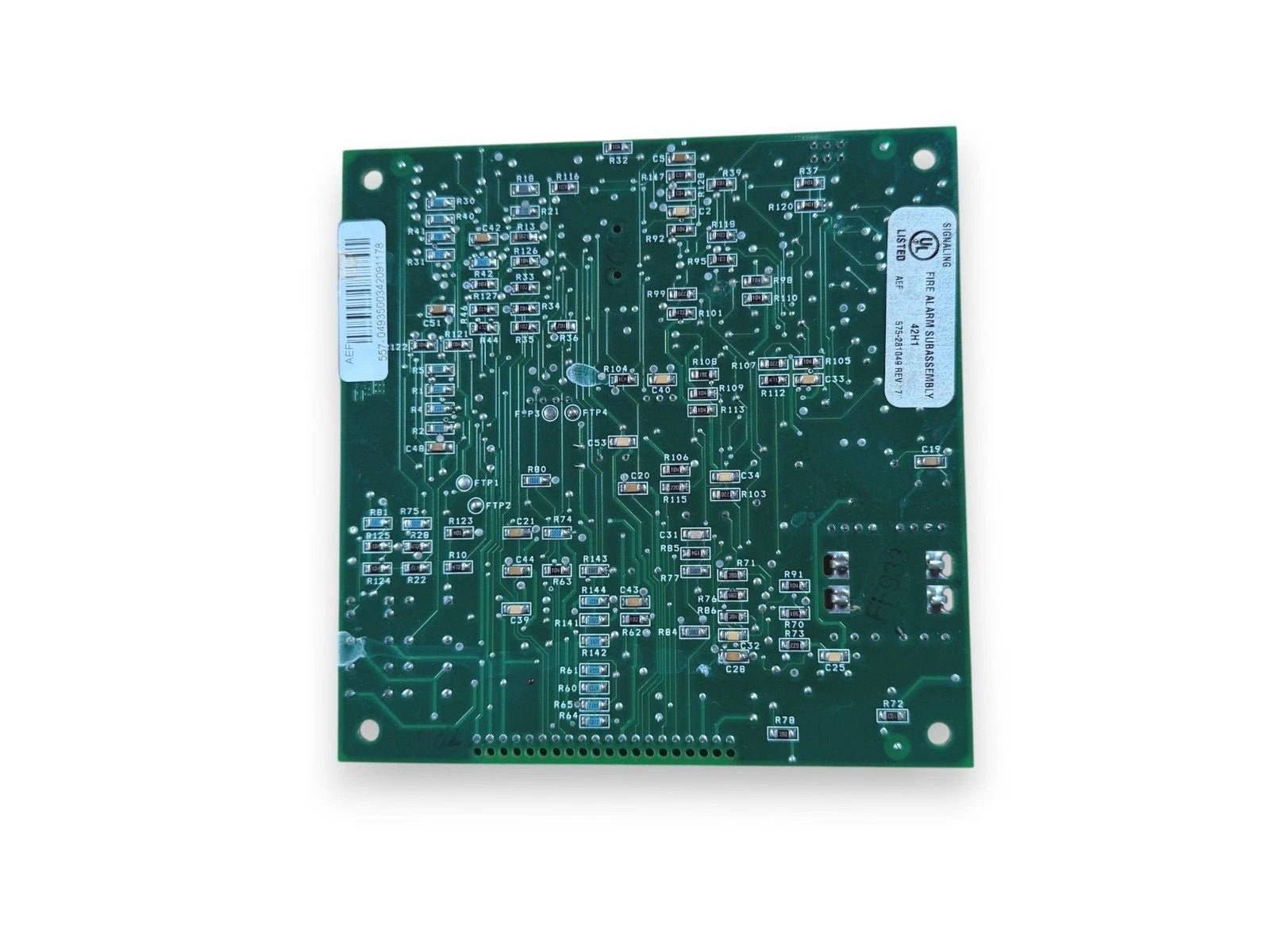

Siemens FS-DLC FS-250 Fire Alarm Control Panel Device Loop Card
- Regular price
- $1,877.00
- Sale price
- $1,877.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FS-DLC
Description
The Siemens FS-DLC is a Device Loop Card designed to control and supervise Siemens P2 addressable field devices on the FS-250 Fire Alarm System. It manages communication between connected detectors, manual stations, monitor devices, control devices, and the panel's Main System Board while providing onboard diagnostic indication.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Fire Alarm Systems |
| Part Number | FS-DLC |
| Subcategory | Device Loop Cards |
| Product Type | Device Loop Card / Board |
| Compatible Control Panel | Siemens FS-250 |
| Device Protocol | Siemens P2 Addressable |
| Loop Capacity | 1 Device Loop |
| Address Capacity | Up to 252 Addresses |
| Compatible Devices | Addressable Smoke Detectors, Manual Stations, Monitor Devices, Control Devices |
| Circuit Configuration | Class A / Style 6 or Class B / Style 4 |
| Diagnostic Indicators | 9 LEDs |
| Local Control | Reset Switch |
| Processing | Onboard Microprocessor |
| Loop Resistance | 50 Ohms Maximum with 252 Devices |
| Field Wiring | 12–18 AWG |
| Circuit Type | Supervised, Power Limited |
| Weight | 0.3 lb (0.14 kg) |
Information About FS-DLC
The FS-DLC is a Siemens fire safety device loop board developed specifically for the FS-250 fire alarm control platform. The card supports one addressable loop with as many as 252 Siemens P2 intelligent field-device addresses, including compatible smoke detectors, manual stations, monitor devices, and control devices. Its onboard microprocessor initializes and maintains loop devices while communicating alarm, trouble, and other relevant device information to the Main System Board. Nine diagnostic LEDs and an onboard reset switch provide local status and service functions, while the architecture allows the card to initiate alarm conditions even if the main-board microprocessor fails.
Key Features:
- 252-Address Capacity: Supports one loop containing up to 252 Siemens P2 intelligent field-device addresses.
- FS-250 Compatibility: Designed as the device loop driver for Siemens FS-250 Fire Alarm System Control Units.
- P2 Device Support: Interfaces with compatible addressable smoke detectors, manual stations, monitor devices, and control devices.
- Intelligent Loop Management: Initializes, operates, and maintains devices residing on the addressable loop.
- Diagnostic Indicators: Incorporates nine LEDs for identifying communication and operating conditions during troubleshooting.
- Onboard Microprocessor: Provides independent processing that allows alarm initiation even if the main-board microprocessor fails.
- Class A or Class B Wiring: Compatible FS-250 device loops can be configured as Class A/Style 6 or Class B/Style 4 circuits.
- Polarity-Insensitive Device Support: Allows compatible polarity-insensitive devices to be connected without generating polarity errors.
The FS-DLC delivers the reliability and precision required for addressable device communication, supervision, and alarm processing within Siemens FS-250 fire alarm systems.
