Siemens FSD901-U3 50-Point Cerberus PRO Remote LCD Annunciator
- Regular price
- $819.00
- Sale price
- $819.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FSD901-U3
Description

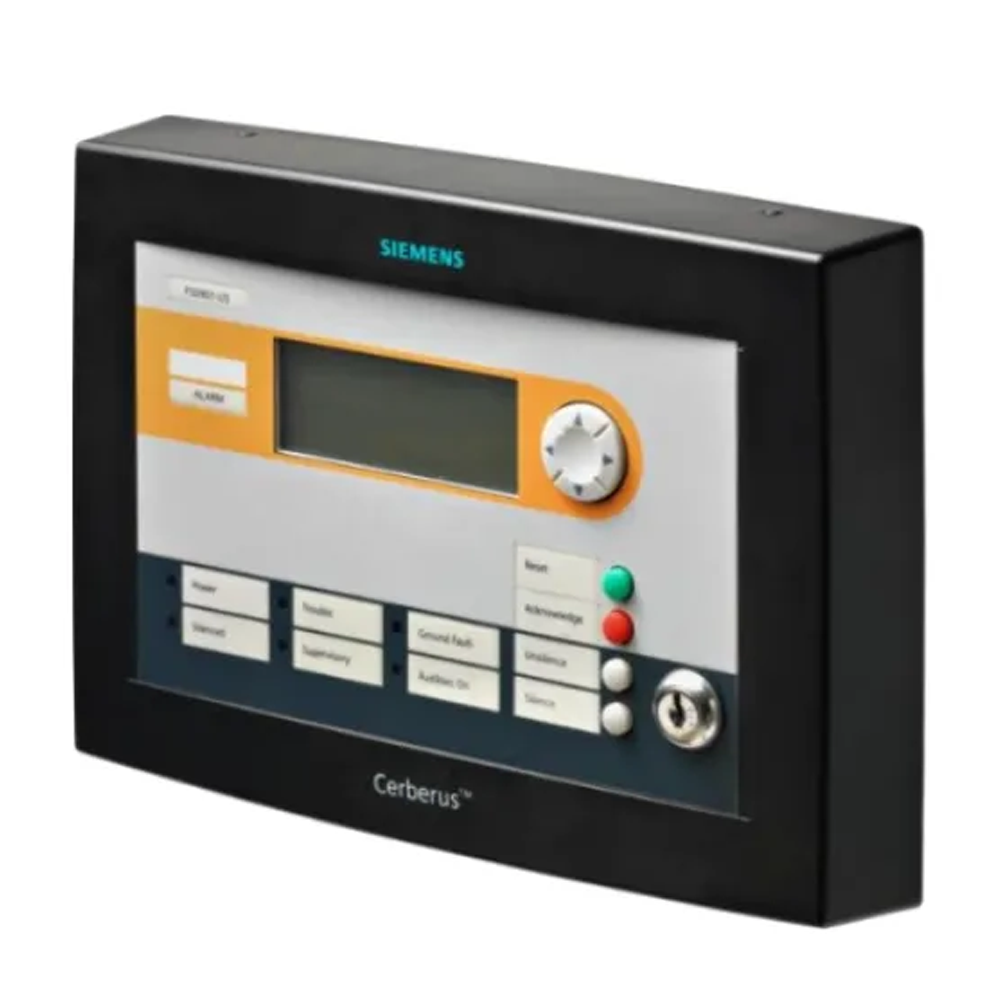

The Siemens FSD901-U3 is a black remote annunciator designed to display system status and event information from a Siemens Cerberus PRO FC901 50-point addressable fire alarm control panel. It provides an alphanumeric LCD, system-status LEDs, navigation controls, and optional remote control functions through an RS-485 connection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Fire Detection |
| Part Number | FSD901-U3 |
| Subcategory | Remote Annunciators |
| Product Type | Remote LED/LCD Annunciator |
| System Compatibility | Siemens Cerberus PRO FC901 50-Point FACP |
| Display | 3.5 × 1.5 in. LCD |
| Display Format | 7 lines × 26 characters |
| Communication | RS-485 |
| System Controls | Acknowledge, Alarm Silence, Unsilence, Reset |
| Status Indicators | Power, Alarm, Trouble, Supervisory, Ground-Fault, Audible Active/Silenced |
| Mounting | Two-gang electrical box |
| Maximum Annunciators | 8 per FC901 FACP |
| Operating Temperature | 32 ± 3°F to 120 ± 3°F (0 ± 2°C to 49 ± 2°C) |
| Humidity | 93 ± 2% RH at 90 ± 3°F (32 ± 2°C) |
| Dimensions | Approximately 8.5 × 11.25 × 2.5 in. |
| Approvals | UL 864, FM, CSFM, NYC Fire Department |
| Weight | Approximately 4 lb |
Information About FSD901-U3
The FSD901-U3 is part of the Cerberus PRO remote annunciator series and is specifically designed for the 50-point FC901 fire alarm control panel. Its 3.5 × 1.5-inch LCD displays alphanumeric event information across seven lines with up to 26 characters per line. The annunciator provides Power, Alarm, Trouble, Supervisory, Ground-Fault, and audible circuit status indications, along with Acknowledge, Alarm Silence, Unsilence, and Reset controls. It connects to the FC901 through an integrated RS-485 interface and supports up to eight remote annunciators per 50-point fire alarm control panel.
Key Features:
- Remote Annunciation: Displays event and system-status information from a compatible Siemens FC901 FACP.
- LCD Display: Provides a 3.5 × 1.5-inch backlit alphanumeric display with seven lines of information.
- Status LEDs: Indicates Power, Alarm, Trouble, Supervisory, Ground-Fault, and audible circuit conditions.
- System Controls: Provides Acknowledge, Alarm Silence, Unsilence, and Reset functions.
- RS-485 Communication: Connects directly to the FC901 through an integrated RS-485 interface.
- Event Navigation: Navigation keys allow users to scroll through active FACP events.
- Key Switch: Helps prevent unauthorized access to system control functions.
- Multi-Annunciator Support: Up to eight FSD901-U3/R3 remote annunciators can be connected to one FC901 system.
The FSD901-U3 delivers the reliability and precision required for remote fire alarm event monitoring and system control.
