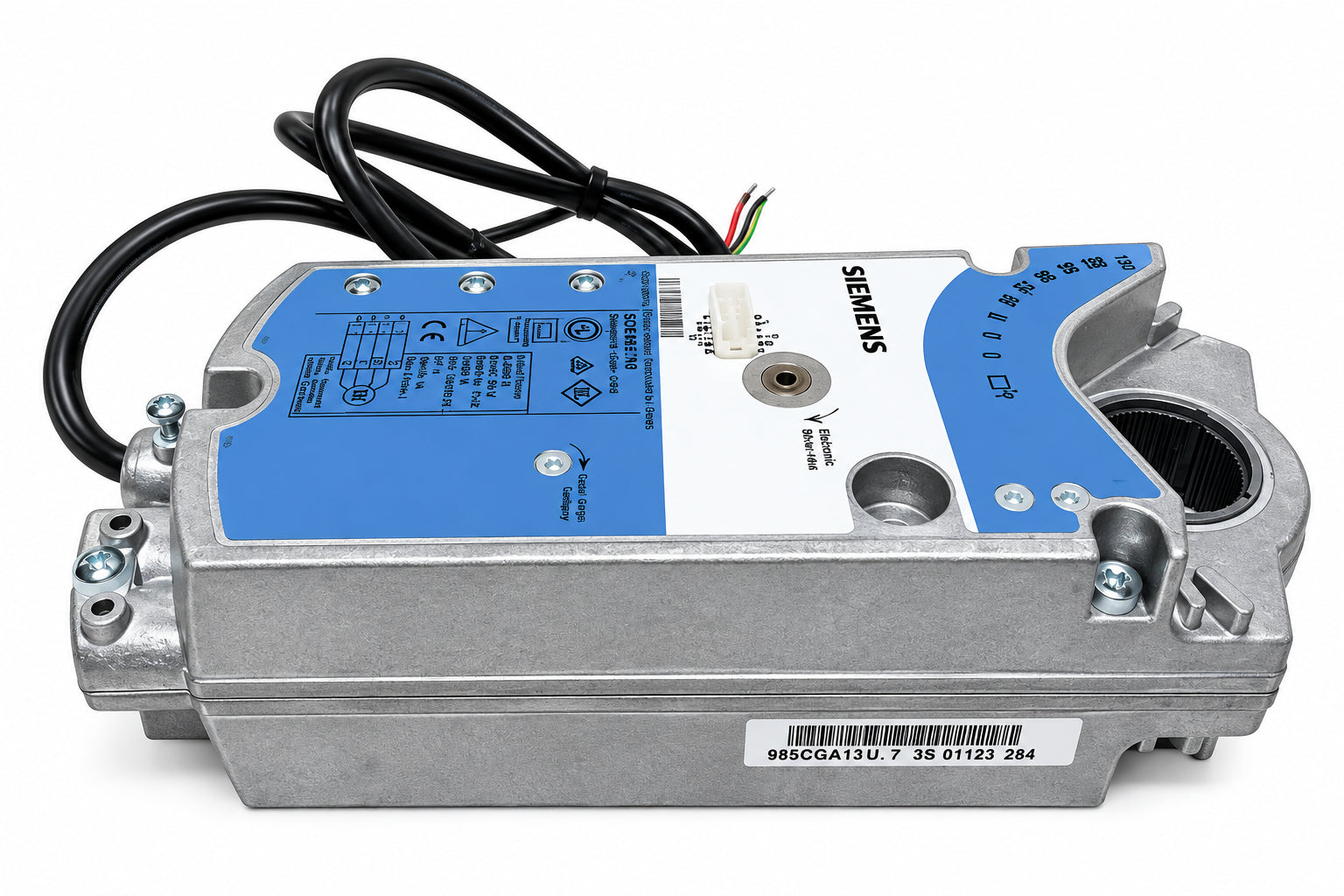

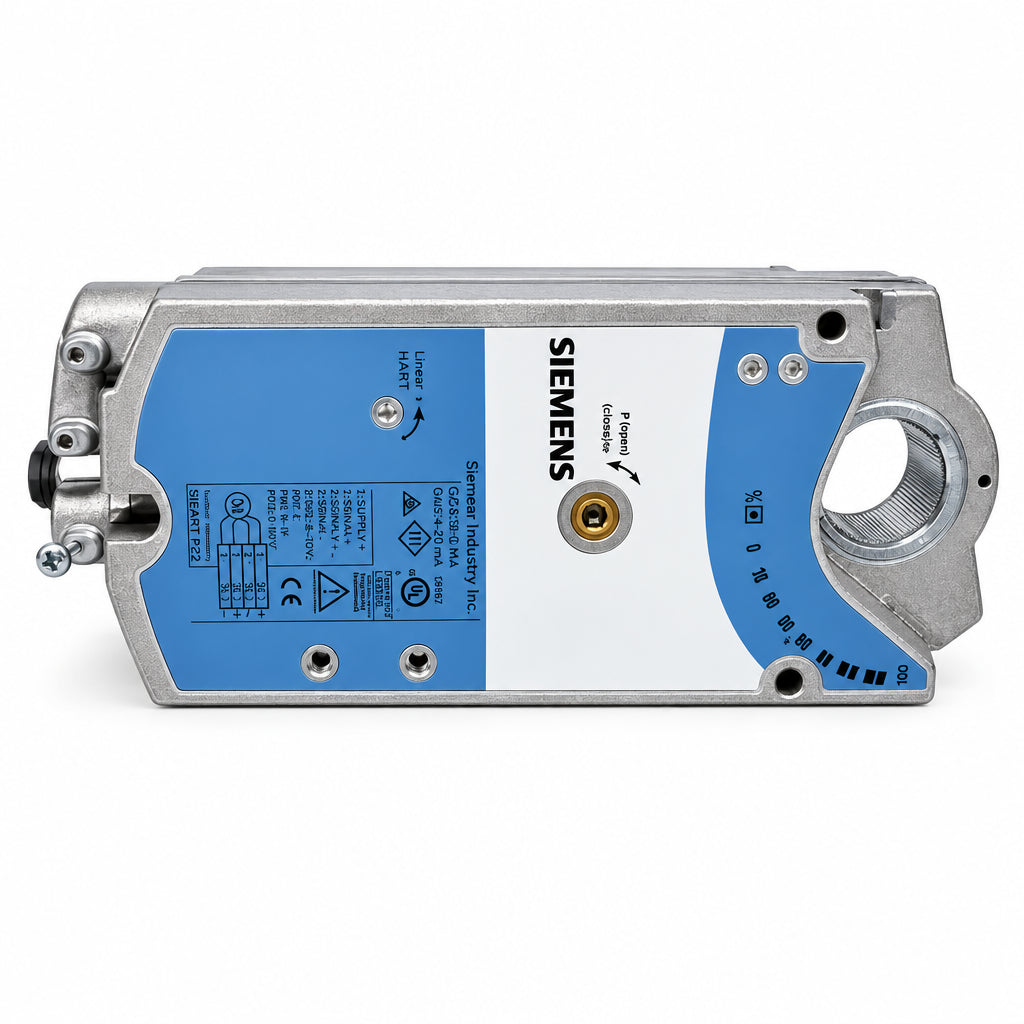

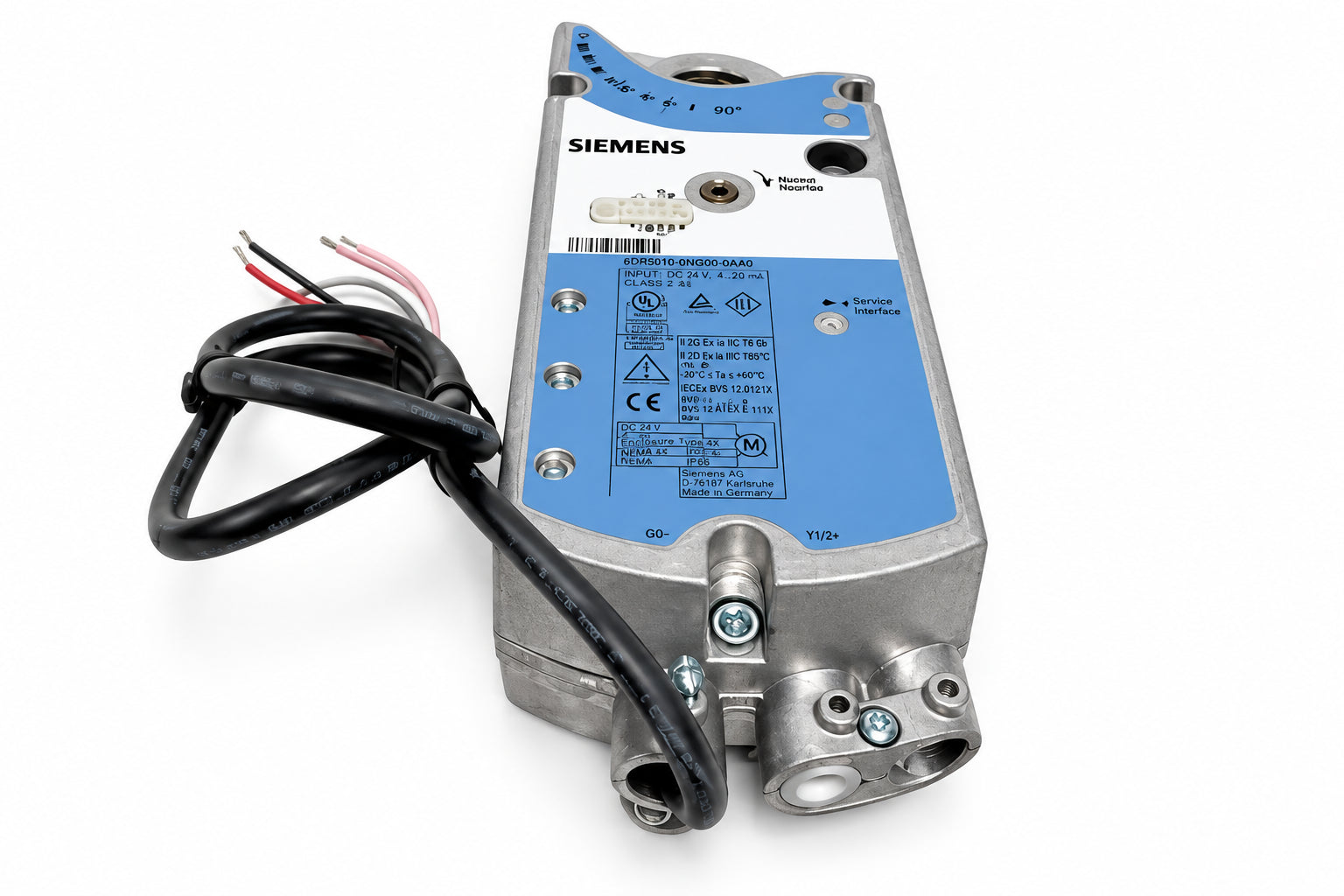

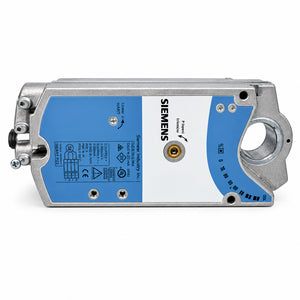

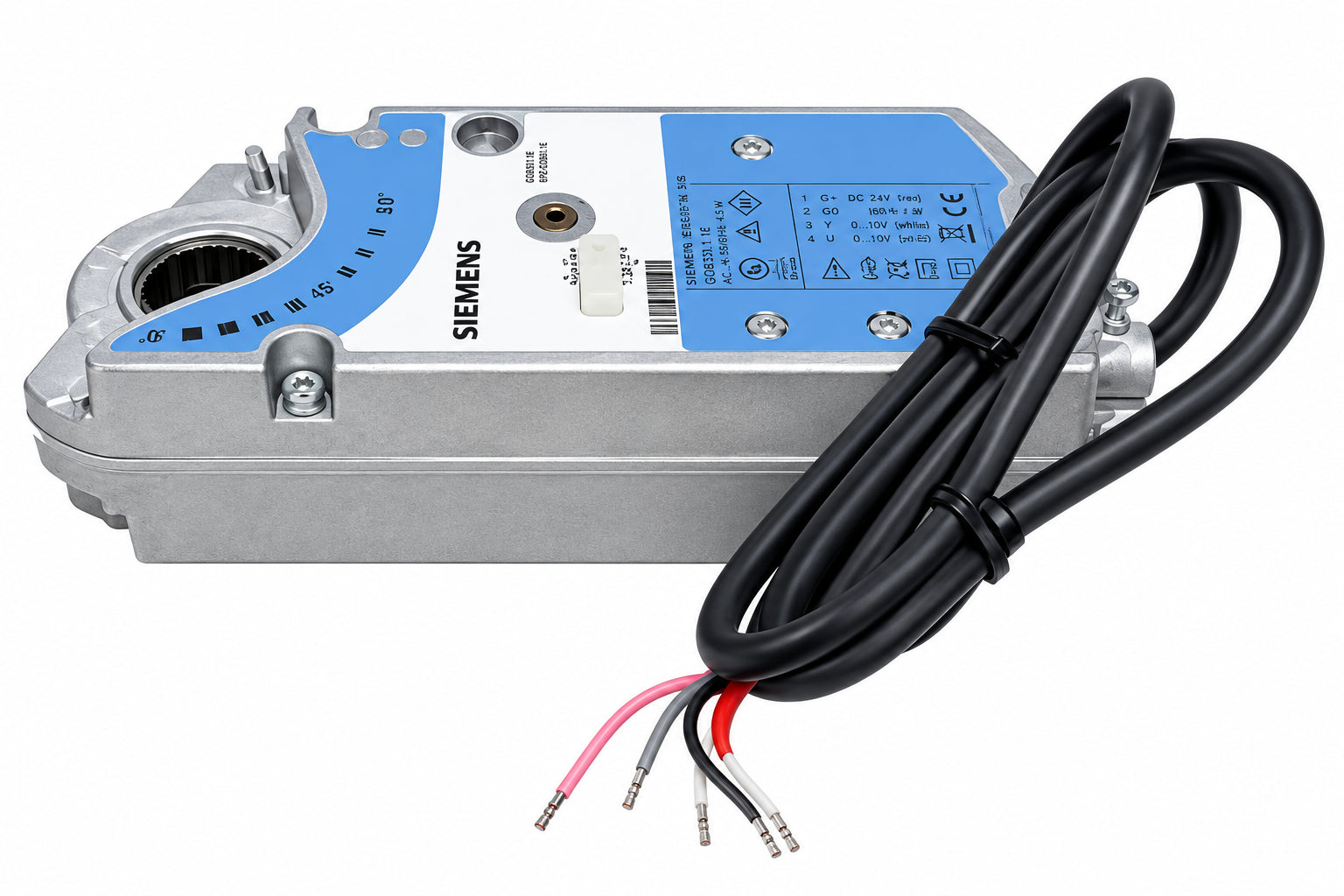

Siemens GCA151.1U Proportional Spring Return Damper Actuator 160 in-lb 24V AC/DC
- Regular price
- $255.00
- Sale price
- $255.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GCA151.1U
Description
Siemens GCA151.1U is a spring-return damper actuator designed for proportional control of HVAC dampers in building automation systems. It provides 160 in-lb of torque, operates from 24 VAC/DC power, and supports a 0–10 VDC control signal with position feedback.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | HVAC Controls |
| Part Number | GCA151.1U |
| Subcategory | Damper Actuators |
| Product Type | Spring Return Damper Actuator |
| Application | HVAC Control Dampers |
| Control Type | Proportional |
| Rated Torque | 160 in-lb |
| Input Voltage | 24 VAC/DC |
| Frequency | 50/60 Hz |
| Output Signal | 0–10 VDC |
| Position Feedback | Yes |
| Angular Rotation | 90° |
| Shaft Rotation | CW/CCW |
| Opening Time | 90 sec |
| Closing Time | 15 sec |
| Power Consumption | Running: 7 VA / 5 W; Holding: 5 VA / 3 W |
| Enclosure Rating | NEMA 2, IP54 |
| Housing Material | Die-Cast Aluminum Alloy |
| Dimensions | 4.75 × 11.81 × 2.88 in |
| Weight | 4.85 lb |
Information About GCA151.1U
The GCA151.1U is a Siemens damper actuator built for control damper applications requiring automatic spring-return operation. Its die-cast aluminum alloy housing provides NEMA 2 protection and an IP54 degree of protection for installation in compatible HVAC environments. A self-centering shaft coupling supports direct connection to damper shafts, while bidirectional CW/CCW rotation and 90° angular travel provide flexible installation. The actuator integrates with building automation systems using proportional control and position feedback for accurate damper positioning.
Key Features:
- 160 in-lb Torque: Provides rated torque for positioning compatible HVAC control dampers.
- Spring Return Operation: Automatically returns the connected damper to its fail-safe position when power is removed.
- Proportional Control: Supports modulating damper positioning through a 0–10 VDC control signal.
- Position Feedback: Provides actuator position feedback for integration with building automation systems.
- 24 VAC/DC Power: Operates from compatible 24 VAC or DC control power supplies.
- Self-Centering Coupling: Supports direct mounting to compatible damper shafts for secure positioning.
- 90° Rotation: Supports clockwise or counterclockwise operation across a 90-degree angular range.
- IP54 Protection: Die-cast aluminum housing provides protection against dust and splashing water.
The GCA151.1U delivers the reliability and precision required for proportional HVAC damper positioning and building automation control.
