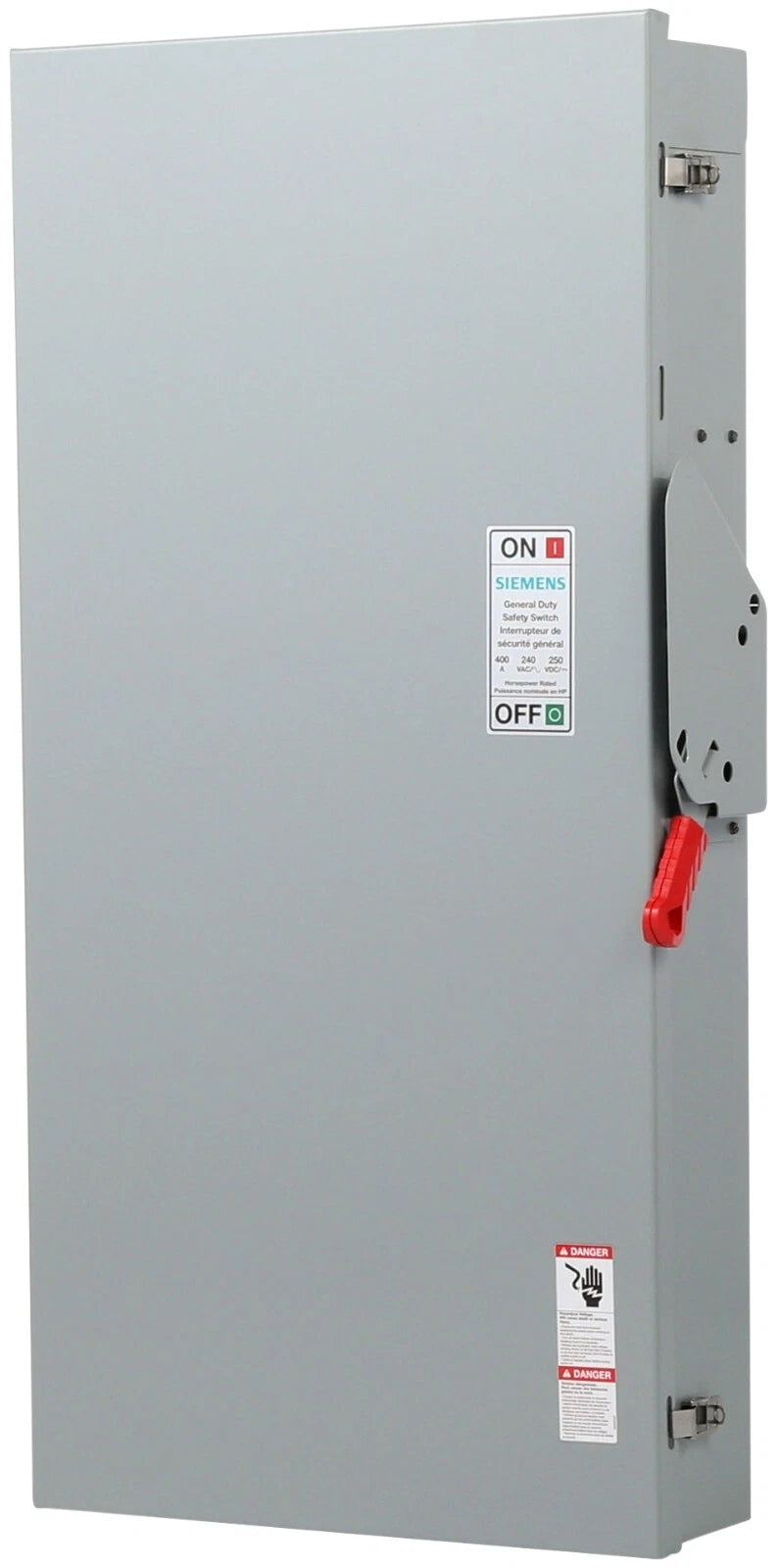

Siemens GF325NRA 400A 3-Pole Fusible Safety Switch NEMA 3R 240VAC Service Entrance Disconnect
- Regular price
- $2,599.00
- Sale price
- $2,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GF325NRA
Description
The Siemens GF325NRA is a heavy-duty fusible safety switch designed for reliable circuit isolation and protection in industrial and commercial power distribution systems. Rated at 400 A and 240 VAC, it features a 3-pole configuration with a solid neutral and is housed in a NEMA 3R enclosure for outdoor applications. The switch incorporates a quick-make, quick-break mechanism and visible blade design to ensure safe and dependable disconnection of electrical loads.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Protection |
| Part Number | GF325NRA |
| Subcategory | Safety Switches |
| Switch Type | Fusible General Duty Safety Switch |
| Series / Type | Type VBII |
| Rated Current | 400 A |
| Rated Voltage | 240 VAC / 250 VDC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Contact Configuration | TPST |
| Frequency Rating | 60 Hz |
| Short Circuit Rating | 100 kA |
| Enclosure Type | NEMA 3R (Outdoor) |
| Material | Steel |
| Mounting Type | Surface |
| Terminal Type | Lug |
| Operating Temperature Range | -29 °C to 85 °C |
| Operating Cycles | 6000 |
| Dimensions | 56 in (H) × 26 in (W) × 9.23 in (D) |
| Weight | Approx. 36 kg |
Information About GF325NRA
The GF325NRA is a Siemens Type VBII fusible general-duty safety switch engineered for service entrance and load disconnect applications. Designed for outdoor installations, it uses a NEMA 3R steel enclosure that provides protection against rain, sleet, and external environmental conditions. The switch supports three-phase, four-wire systems and includes provisions for fuses to provide additional circuit protection for connected equipment. Its robust construction, visible blade switching action, and safety interlock features make it suitable for power distribution systems in industrial plants, commercial buildings, and outdoor electrical installations.
Key Features:
- 400 Amp Current Rating: Designed to handle high-current applications in industrial and commercial power systems.
- 3-Pole 4-Wire Configuration: Supports three-phase electrical distribution with a solid neutral connection.
- Fusible Safety Switch Design: Allows installation of fuses for enhanced circuit protection.
- NEMA 3R Enclosure: Weather-resistant outdoor enclosure suitable for external installations.
- Quick Make / Quick Break Mechanism: Ensures reliable switching action and safe circuit interruption.
- Visible Blade Construction: Provides clear confirmation of circuit isolation for maintenance safety.
- Service Entrance Rated: Approved for use as a service entrance disconnect device.
- Heavy-Duty Steel Enclosure: Provides structural strength and long-term durability.
- Cover Interlock Safety Feature: Prevents the enclosure door from opening while the switch is energized.
- Padlockable Handle: Allows locking in the OFF position for maintenance safety procedures.
- Generous Wiring Gutters: Designed to meet or exceed NEC wire bending space requirements.
- 180° Hinged Door Access: Side-hinged door allows easier installation and wiring.
The GF325NRA delivers the reliability and precision required for safe power isolation and service entrance disconnect applications in industrial electrical distribution systems.
