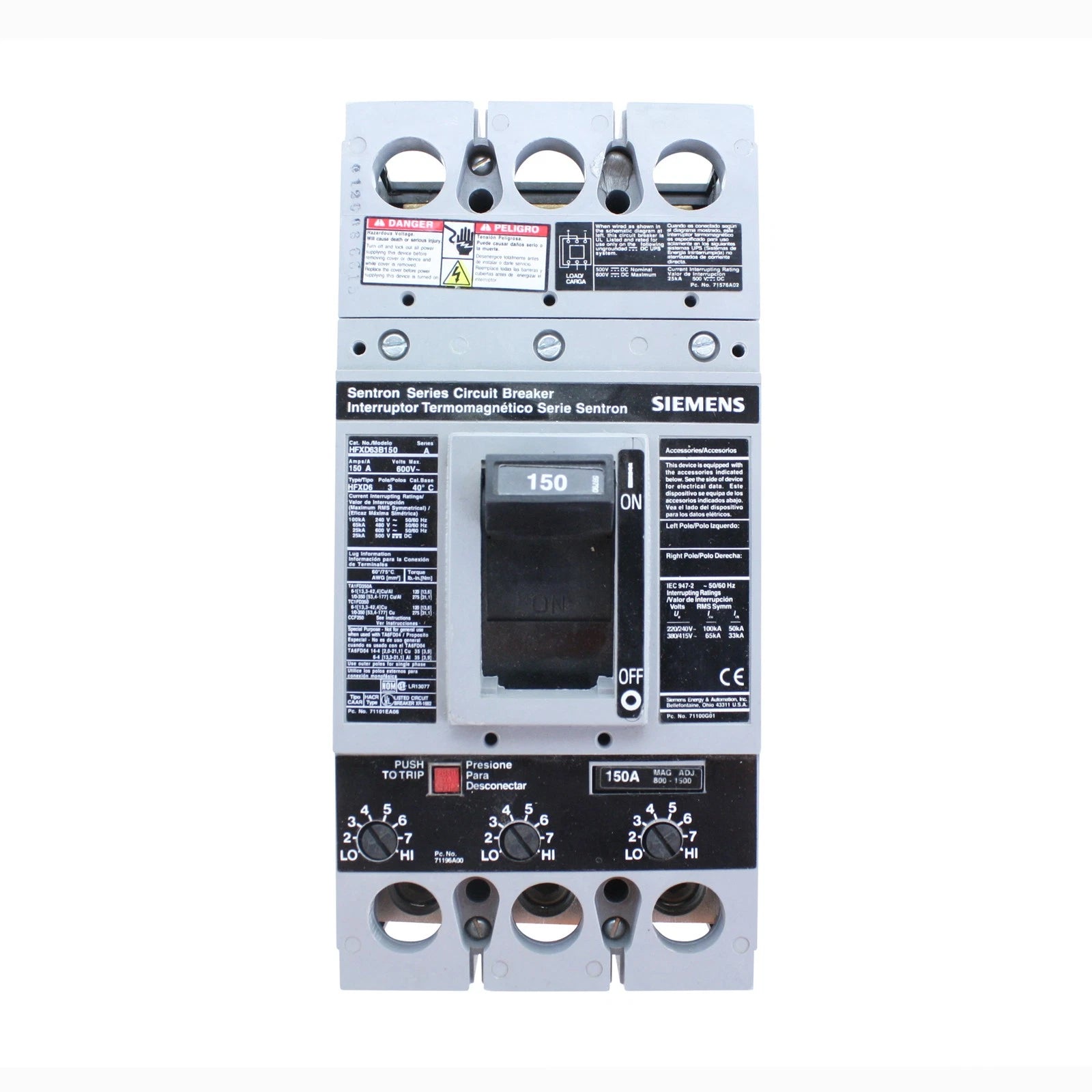

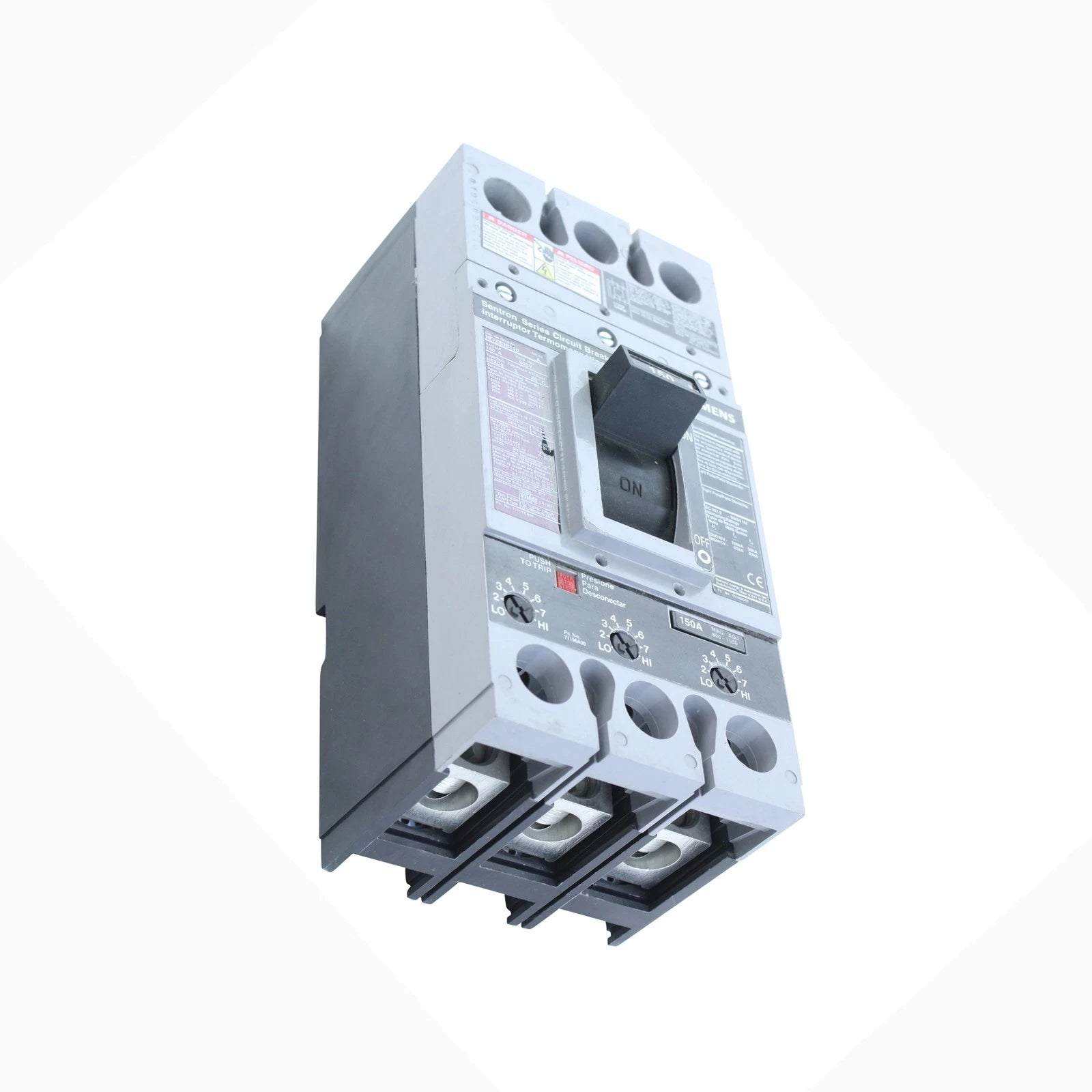

Siemens HFXD63B150 SENTRON HFXD6 Molded Case Circuit Breaker
Part #:
HFXD63B150
Manufactured by:
Siemens
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Siemens HFXD63B150 is a SENTRON HFXD6 molded case circuit breaker featuring thermal-magnetic LI protection and bolt-on...
Read more
We accept:
Couldn't load pickup availability
IQElectro 2-Year Warranty
Warranty for Product #: HFXD63B150
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
Product Description P/N: HFXD63B150
Description / Specifications
Description
Siemens HFXD63B150 is a SENTRON HFXD6 molded case circuit breaker designed for high-capacity commercial and industrial power distribution applications. It features thermal-magnetic LI protection, a 3-pole configuration, and bolt-on mounting for integration into compatible Siemens panelboards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breaker |
| Part Number | HFXD63B150 |
| Subcategory | Molded Case Circuit Breaker |
| Series | SENTRON HFXD6 |
| Type | HFXD |
| Frame | FD |
| Current Rating | 150A |
| Voltage Rating | 240VAC, 480VAC, 600VAC, 500VDC |
| Number of Poles | 3 |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC; 65kA @ 480VAC; 25kA @ 600VAC; 25kA @ 500VDC |
| Mounting Style | Bolt-On |
| Trip Technology | Thermal Magnetic |
| Trip Function | LI – Long-Time and Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Trip Unit | Non-Interchangeable |
| Lugs | Not Included |
| Compatible Equipment | Siemens P2, P3, S4, S5 Panelboards |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approvals | CE, CSA, IEC, UL |
| HACR Rated | Yes |
| Temperature Rating | 40°C |
| UPC | 783643318144 |
| Commodity Code | 8536200020 |
| Country of Origin | Mexico |
| Weight | 8.997 lbs |
Information About HFXD63B150
Key Features:
- SENTRON HFXD6 Series: Designed for demanding commercial and industrial power distribution systems.
- High Interrupting Capacity: Provides substantial fault-current interruption capability for high-capacity applications.
- Thermal-Magnetic Protection: Provides overload and short-circuit protection.
- LI Trip Functions: Incorporates long-time and instantaneous protection characteristics.
- Adjustable Magnetic Trip: Combines fixed thermal protection with adjustable magnetic operation.
- Bolt-On Mounting: Provides secure installation in compatible Siemens panelboards.
- Non-Interchangeable Trip: Uses an integrated trip configuration designed for consistent circuit protection.
- Accessory Support: Compatible with shunt trips, auxiliary switches, undervoltage releases, alarm switches, motor operators, rotary handles, and padlock attachments.
The HFXD63B150 delivers the circuit protection and interrupting performance required for compatible Siemens commercial and industrial power distribution systems.
