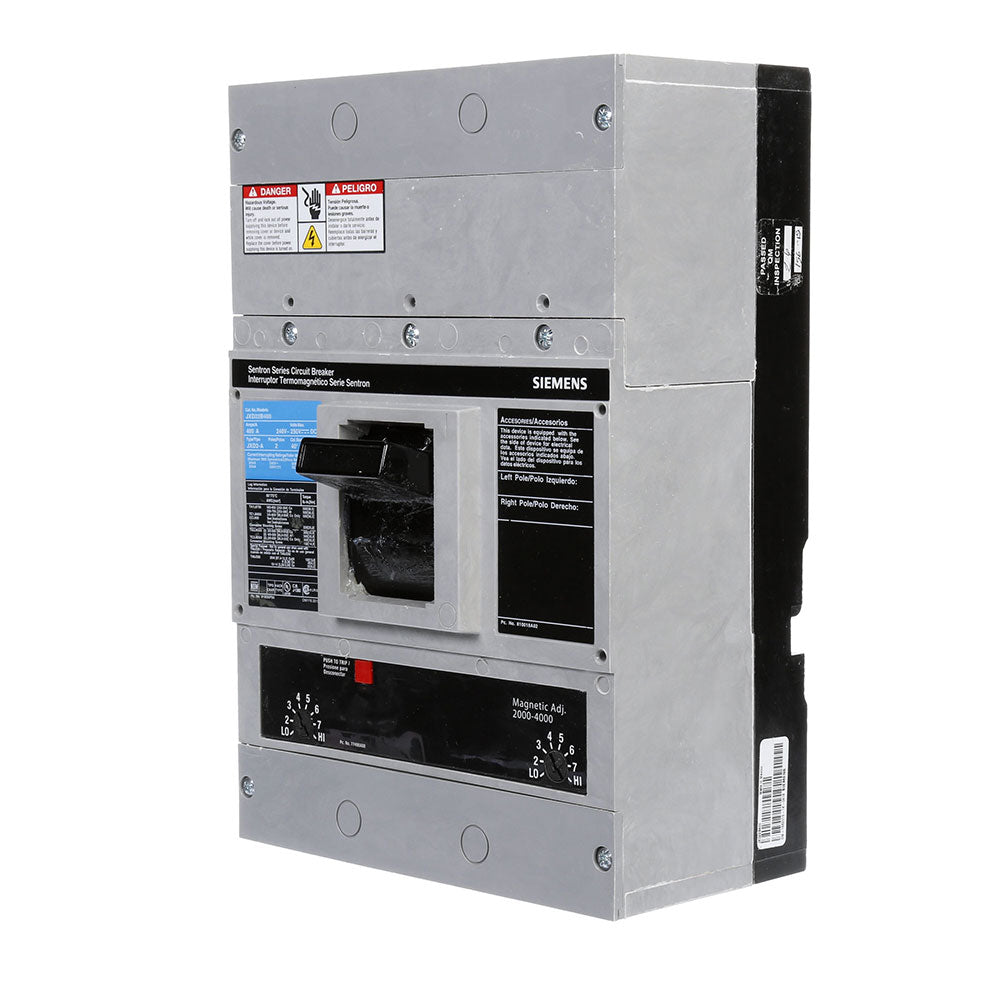

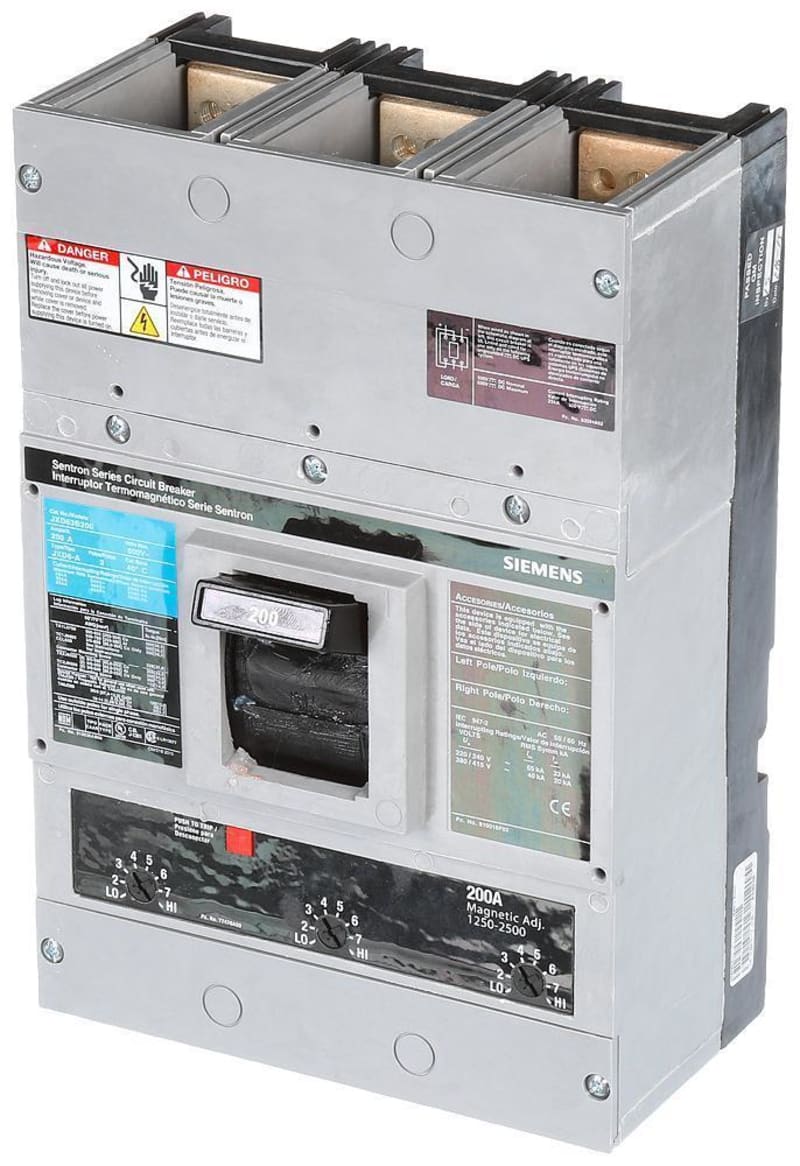

Siemens JXD63B200 SENTRON JXD6 Molded Case Circuit Breaker
Part #:
JXD63B200
Manufactured by:
Siemens
- Regular price
- $3,525.00
- Sale price
- $3,525.00
- Regular price
-
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Siemens JXD63B200 is a SENTRON JXD6 molded case circuit breaker featuring thermal-magnetic LI protection for three-pha...
Read more
We accept:
Couldn't load pickup availability
IQElectro 2-Year Warranty
Warranty for Product #: JXD63B200
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
Product Description P/N: JXD63B200
Description / Specifications
Description
Siemens JXD63B200 is a SENTRON JXD6 molded case circuit breaker designed for overcurrent protection in commercial and industrial three-phase power distribution systems. It uses thermal-magnetic LI protection with fixed thermal and adjustable magnetic trip characteristics.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Protection |
| Part Number | JXD63B200 |
| Subcategory | Molded Case Circuit Breaker |
| Series | SENTRON JXD6 |
| Frame / Family | JD6 |
| Type | JXD |
| Rated Current | 200A |
| Number of Poles | 3 |
| Phase | 3 |
| AC Voltage Rating | Up to 600VAC |
| DC Voltage Rating | Up to 500VDC |
| Trip Technology | Thermal Magnetic |
| Trip Function | LI – Long-Time and Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Interrupting Rating at 240VAC | 65kA |
| Interrupting Rating at 480VAC | 35kA |
| Interrupting Rating at 600VAC | 25kA |
| Interrupting Rating at 500VDC | 25kA |
| Mounting Style | Unit Mount / Chassis Mount |
| Terminal Configuration | Lug Kits Required |
| Compatible Equipment | Siemens SENTRON Panelboards, Switchboards, Motor Control Centers |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
| Standards | UL 489, CSA C22.2 No. 5, IEC 60947-2 |
| Approvals | UL, CSA, IEC, CE |
| Temperature Rating | 40°C |
| Country of Origin | Mexico |
| Weight | 18.301 lbs |
Information About JXD63B200
Key Features:
- Thermal-Magnetic Protection: Provides overload and short-circuit protection for power distribution circuits.
- LI Trip Function: Combines long-time and instantaneous overcurrent protection.
- Adjustable Magnetic Trip: Allows magnetic trip adjustment while maintaining fixed thermal protection.
- Three-Pole Design: Configured for three-phase commercial and industrial electrical systems.
- Unit-Mount Configuration: Designed for chassis installation in compatible distribution equipment.
- High Interrupting Capacity: Provides multiple interrupting ratings based on operating voltage.
- SENTRON Compatibility: Designed for compatible Siemens SENTRON distribution equipment.
- Accessory Support: Supports compatible shunt trips, auxiliary switches, undervoltage releases, alarm switches, and lug kits.
The JXD63B200 delivers the thermal-magnetic circuit protection required for compatible Siemens SENTRON power distribution systems.
