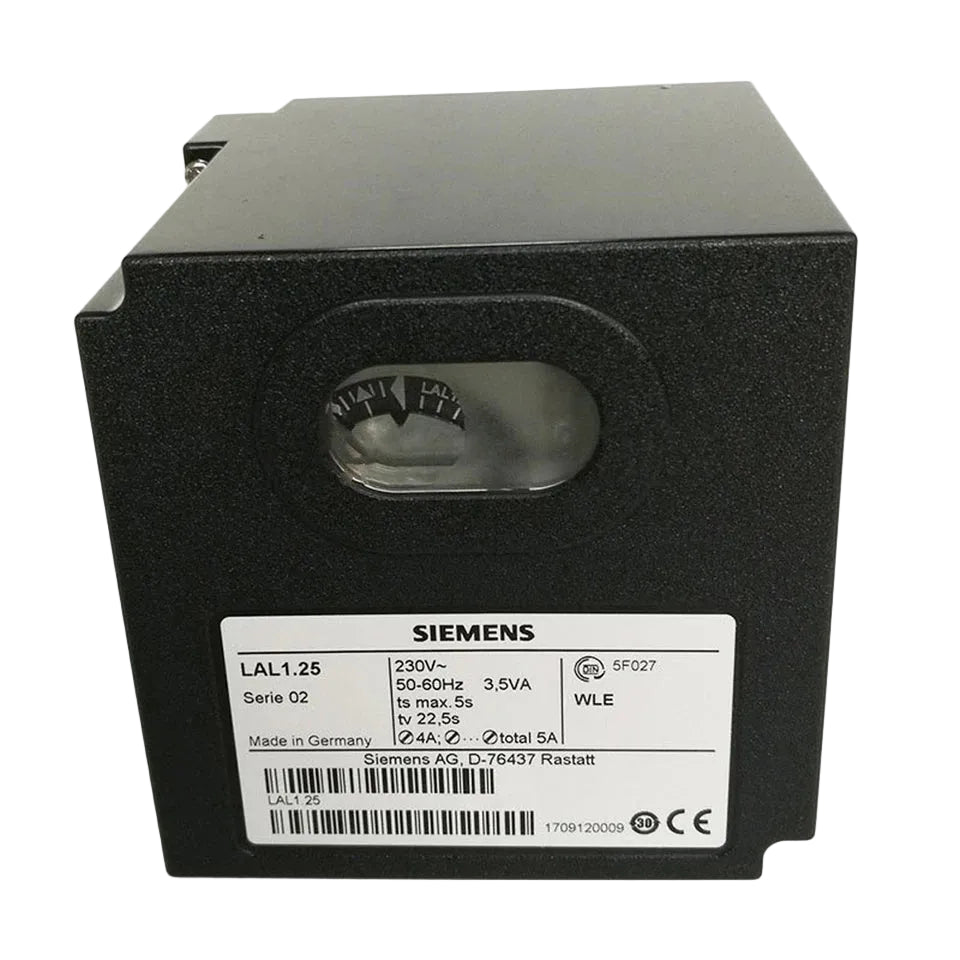

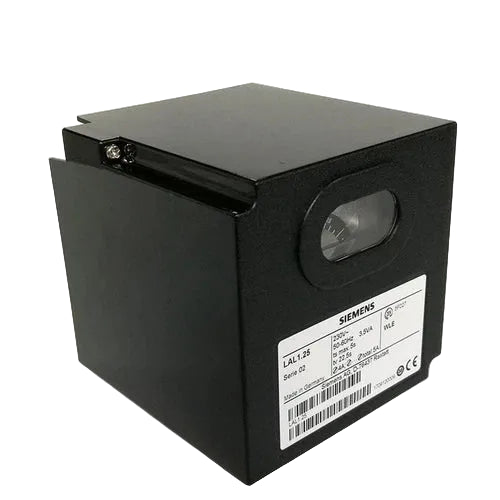

Siemens LAL1.25 Universal 230V Oil Burner Control with QRB/QRC1 Flame Detection
- Regular price
- $685.00
- Sale price
- $685.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LAL1.25
Description
The Siemens LAL1.25 is a universal oil burner control designed for the control and supervision of oil atomization burners. It operates from a 230 VAC supply at 50/60 Hz and supports QRB and QRC1 flame detectors for reliable flame monitoring in medium- to high-capacity burner systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | HVAC |
| Part Number | LAL1.25 |
| Subcategory | Burner Control |
| Product Series | LAL1 |
| Application | Oil Atomization Burners |
| Supply Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Operation | Intermittent |
| Flame Detectors | QRB Series, QRC1 |
| Mounting / Connection | Plug-In Design |
| Fuse | Exchangeable Unit Fuse |
| Protection Rating | IP40 |
| Operating Temperature | -20°C to +60°C |
| Housing Material | Impact- and Heat-Resistant Black Plastic |
| Weight | 1.85 lbs |
Information About LAL1.25
The LAL1.25 belongs to the Siemens LAL1 series of yellow-blue flame oil burner controllers. It is designed for intermittent operation with at least one controlled shutdown every 24 hours and can be used with multistage or modulating burners. The plug-in design includes an exchangeable unit fuse and a transparent lockout reset button with visual fault indication. The controller has an IP40 degree of protection and is designed for operation from -20°C to +60°C.
Key Features:
- LAL1 Series: Part of Siemens' LAL1 family of oil burner controllers.
- Oil Burner Control: Designed for control and supervision of oil atomization burners.
- Universal Application: Suitable for medium- to high-capacity burners and multistage or modulating systems.
- 230 VAC Operation: Operates from a 230 VAC power supply at 50/60 Hz.
- Flame Detection: Compatible with QRB-series and QRC1 flame detectors.
- Plug-In Design: Provides a practical configuration for installation and replacement.
- Lockout Indication: Uses a transparent reset button with visual indication of fault conditions.
- IP40 Protection: Provides protection suitable for compatible indoor burner-control installations.
The LAL1.25 delivers the burner sequencing and flame supervision required for medium- to high-capacity oil-fired combustion systems.
