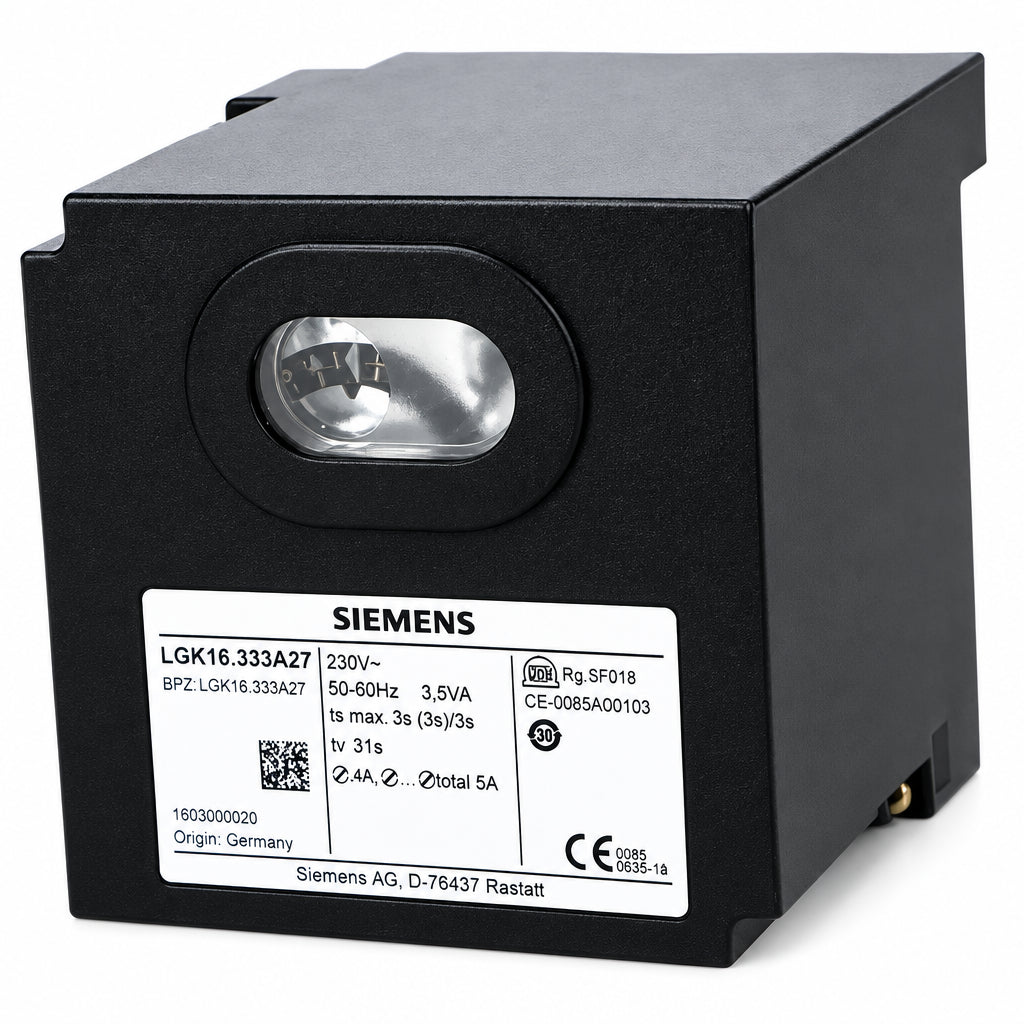

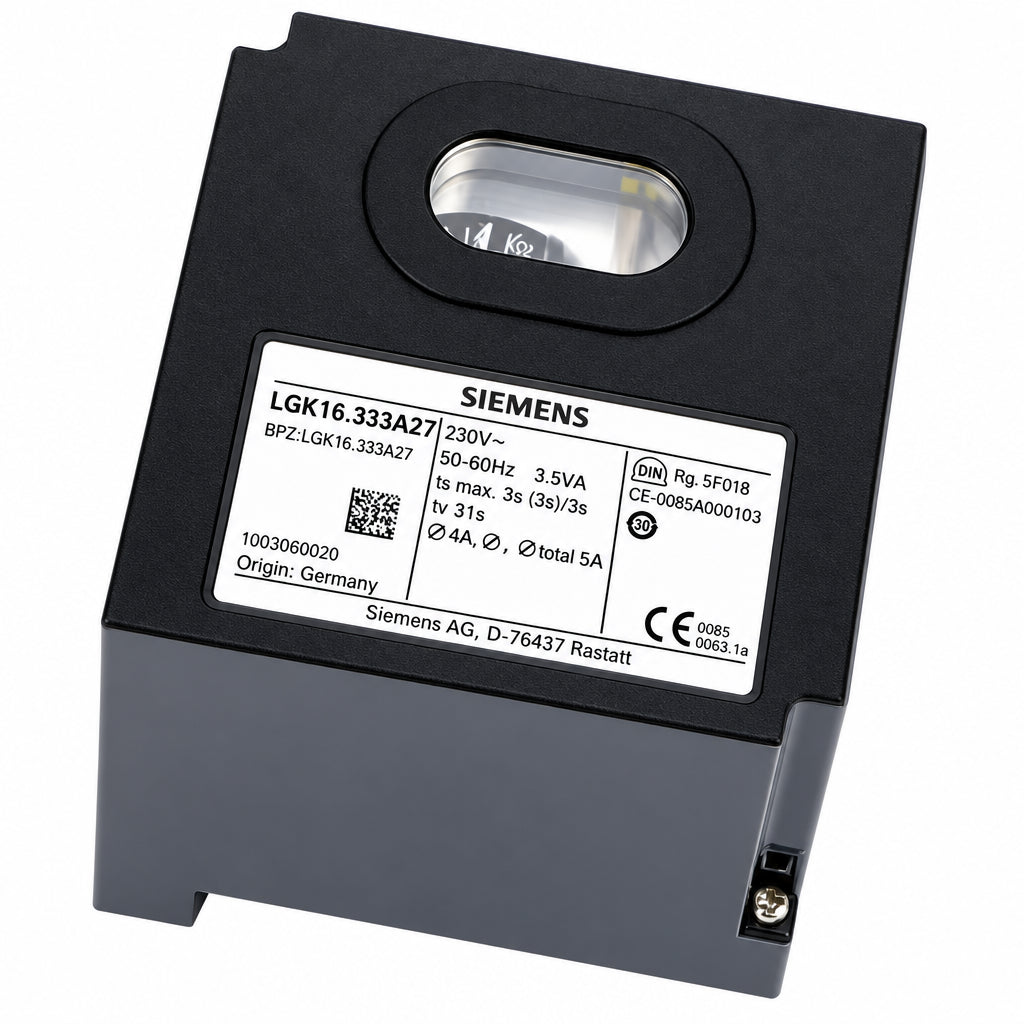

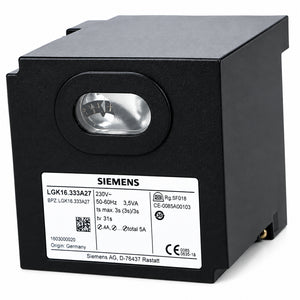

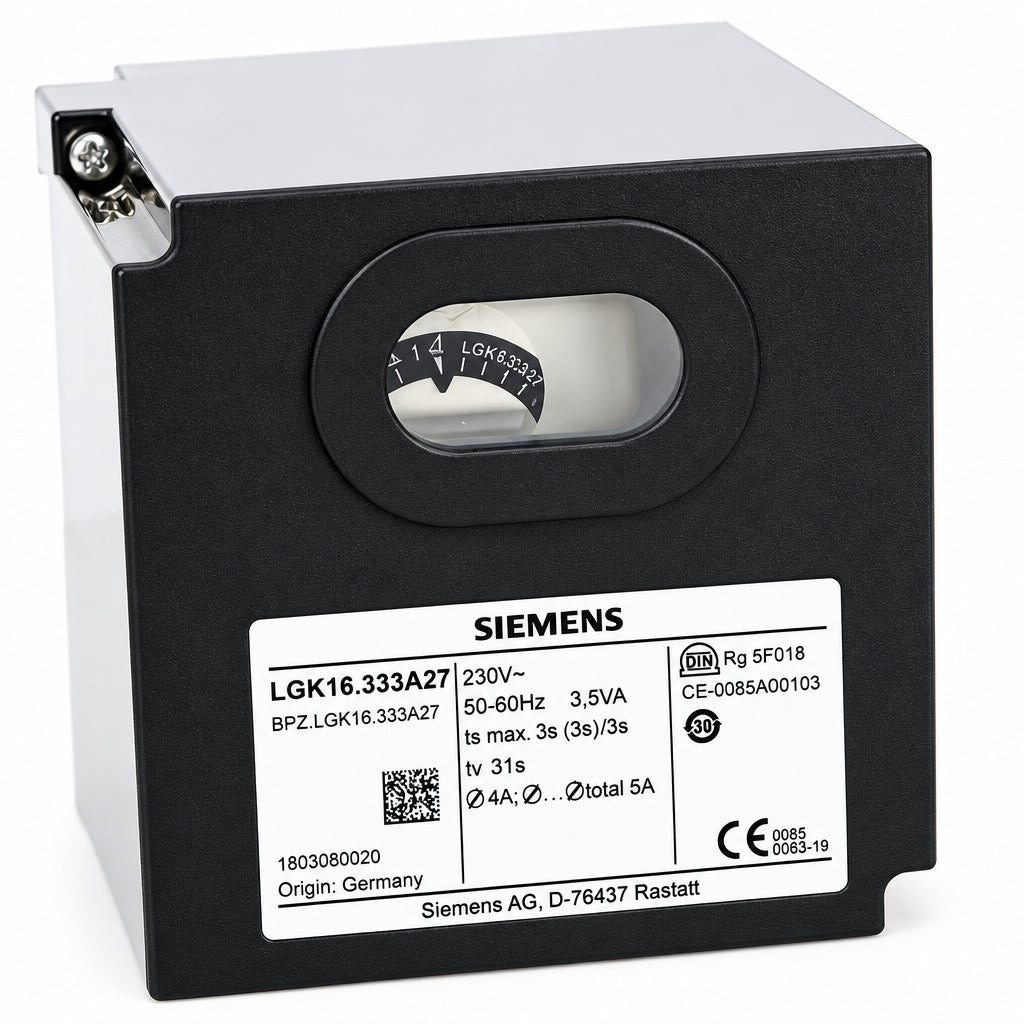

Siemens LGK16.333A27 Gas Burner Control 230VAC 31.5s Prepurge
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LGK16.333A27
Description
The Siemens LGK16.333A27 is a 7800 Series gas burner control designed for forced-draft gas burners and flame supervision applications. It operates at 230 VAC, 50–60 Hz and provides a 31.5-second prepurge time with the air damper open and a 3-second safety time. The controller is designed for flame supervision using compatible QRA53/QRA55 UV flame detectors or an ionization probe.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | HVAC & Burner Controls |
| Part Number | LGK16.333A27 |
| Subcategory | Gas Burner Controls |
| Series | LGK16 |
| Device Type | Gas Burner Control |
| Application | Forced-Draft Gas Burners |
| Supply Voltage | 230 VAC |
| Frequency | 50–60 Hz |
| Prepurge Time (t1) | 31.5 seconds |
| Safety Time (TSA) | 3 seconds |
| Preignition Time (t3) | 6 seconds |
| Post-Purge Time | 17 seconds |
| Flame Supervision | QRA53/QRA55 UV Detector or Ionization Probe |
| Flame Signal Amplifier | Self-Checking |
| Air Pressure Supervision | Yes |
| Primary Fuse | T6.3H250V built-in |
| External Fuse | Max. 16 A slow |
| Protection Rating | IP40 |
| Plug-In Base | Ordered Separately |
| Flame Detector | Ordered Separately |
| Maximum Total Connected Load | 2000 VA |
| Dimensions | Approx. 5 × 5 × 5 in. |
| Weight | 2.26 lb |
Information About LGK16.333A27
The LGK16.333A27 is a Siemens gas burner control for medium- to high-capacity forced-draft burners, including multistage or modulating burner systems. It provides automatic burner sequencing, air-pressure supervision, ignition control, and flame monitoring. The unit operates from 230 VAC and is intended to be used with a suitable plug-in base and compatible flame detector, which are ordered separately. Siemens specifies a 31.5-second prepurge time and a 3-second safety time for this particular model.
Key Features:
- Gas Burner Control: Provides automatic sequencing and safety control for industrial gas burners.
- 230 VAC Operation: Designed for 230 VAC, 50–60 Hz power systems.
- 31.5-Second Prepurge: Provides a 31.5-second prepurge period with the air damper open.
- 3-Second Safety Time: Provides a 3-second ignition safety period.
- Flame Supervision: Supports QRA53/QRA55 UV flame detectors or an ionization probe.
- Air Pressure Supervision: Supports monitoring of the combustion air supply during burner operation.
- Modulating Applications: Suitable for multistage or modulating forced-draft burners.
- Self-Checking Amplifier: Incorporates a self-checking flame-signal amplifier for flame supervision.
The LGK16.333A27 delivers the control and monitoring functions required for industrial burner-management and combustion-control applications.
