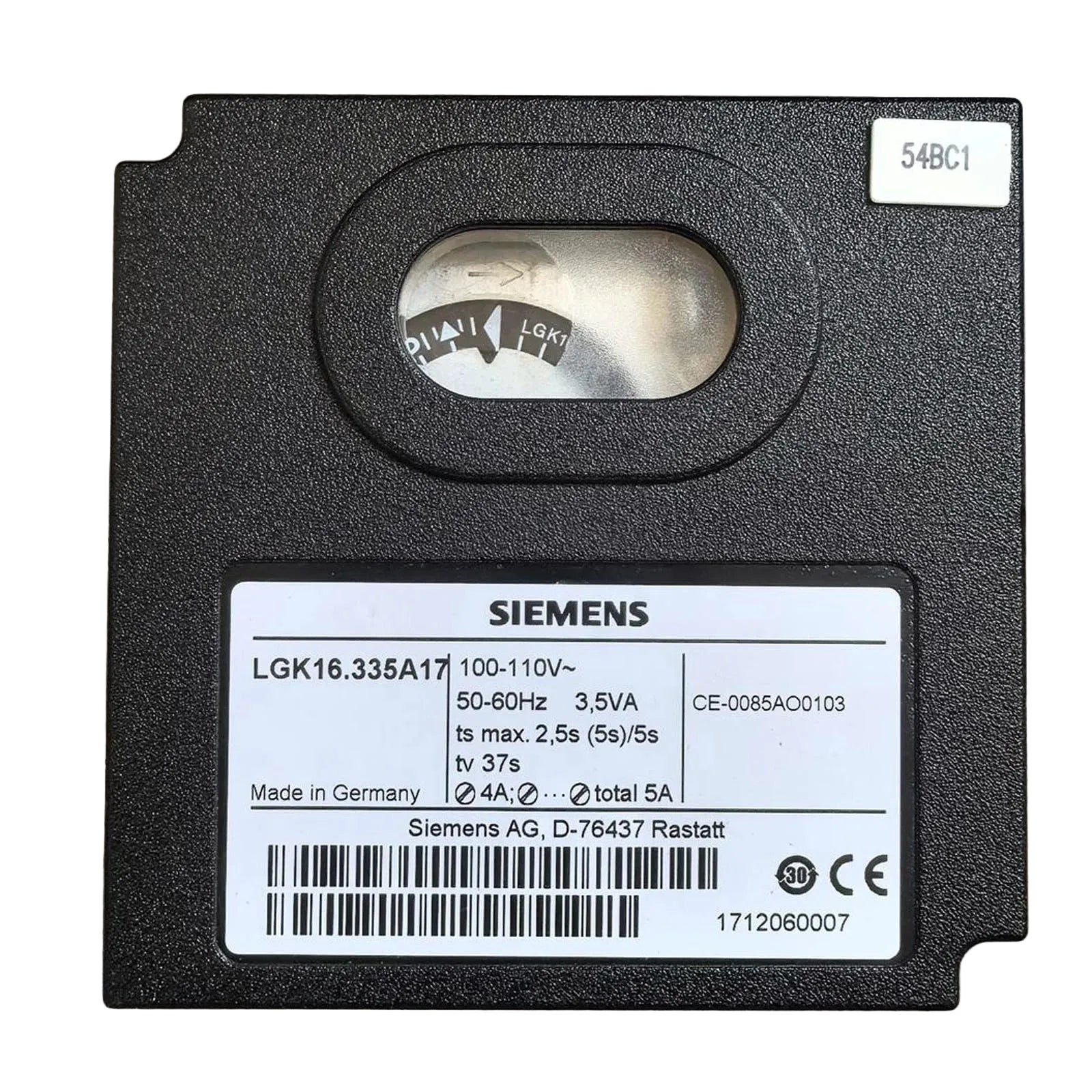

Siemens LGK16.335A17 LGK16 110V Continuous Burner Flame Safeguard
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LGK16.335A17
Description
The Siemens LGK16.335A17 is a flame safeguard and burner control unit designed for continuous-operation, medium- to high-capacity gas, oil, and dual-fuel burners. It provides self-checking flame supervision, burner sequencing, and air-pressure supervision while operating from a 100–110 VAC supply.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | HVAC |
| Part Number | LGK16.335A17 |
| Subcategory | Burner Controls |
| Product Series | LGK16 |
| Application | Gas, Oil, and Dual-Fuel Burners |
| Supply Voltage | 100–110 VAC |
| Frequency | 50/60 Hz |
| Power Consumption | 3.5 VA |
| Pre-Purge Time | 37 seconds |
| Safety Time (TSA) | 2.5 seconds |
| Pre-Ignition Time | 5 seconds |
| Post-Purge Time | 15 seconds |
| Flame Supervision | Self-Checking UV / Ionization |
| Compatible Detector | QRA5 Series UV Detector |
| Mounting | Plug-In Terminal Base |
| Terminal Base | AGM17 |
| Protection Rating | Terminal Base Mounting |
| Standards | EN 298, CE |
| Housing | Heat-Resistant Black Plastic |
| Weight | 2.56 lbs |
Information About LGK16.335A17
The LGK16.335A17 belongs to the Siemens LGK16 series of burner control units for combustion plants requiring continuous flame supervision. It is designed for multi-stage and modulating burners with checked air damper control and integrated air-pressure supervision. The self-checking flame supervision circuit monitors the flame detector, connecting cables, and flame signal amplifier to initiate safety actions when a fault or missing flame signal is detected. The plug-in design uses a heat-resistant black plastic housing and provides a lockout indicator, fault signal lamp, and manual reset button.
Key Features:
- LGK16 Series: Part of Siemens' LGK16 family of flame safeguard and burner control equipment.
- Continuous Operation: Designed for burners operating continuously for extended periods.
- Multi-Stage and Modulating Control: Suitable for multi-stage or modulating burner systems.
- Self-Checking Flame Supervision: Monitors the flame detector circuit and detects faults that could simulate a valid flame signal.
- Gas, Oil, and Dual-Fuel Compatibility: Suitable for a range of forced-draft combustion plants.
- UV Flame Detection: Compatible with Siemens QRA5-series UV flame detectors and ionization probes.
- Air Pressure Supervision: Supports checked air damper control and burner safety monitoring.
- Plug-In Design: Uses a plug-in configuration with compatible terminal base mounting.
The LGK16.335A17 delivers the flame supervision and burner safety control required for continuous and demanding industrial combustion applications.
