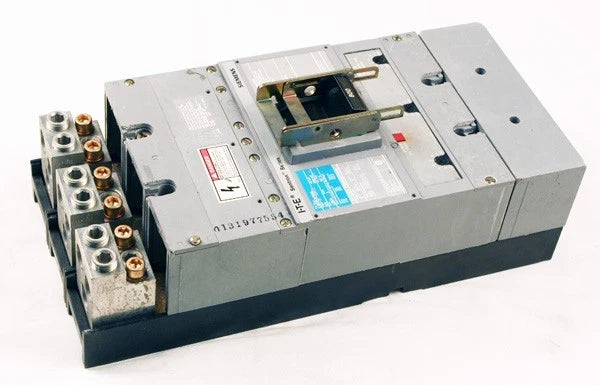

Siemens LMD63F800 SENTRON 800A 3-Pole Molded Case Circuit Breaker 600VAC
- Regular price
- $3,557.00
- Sale price
- $3,557.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LMD63F800
Description
The Siemens LMD63F800 is a SENTRON SpeedFax™ molded case circuit breaker frame designed for high-capacity industrial power distribution systems. It features a 3-pole configuration with an 800A rating and supports up to 600 VAC operation. Engineered with thermal-magnetic protection, it ensures reliable overload and short-circuit protection in demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Electrical Distribution |
| Part Number | LMD63F800 |
| Subcategory | Molded Case Circuit Breakers |
| Series | SENTRON SpeedFax™ |
| Frame Type | LMD |
| Poles | 3 |
| Amperage Rating | 800 A |
| Voltage Rating | 600 VAC / 500 VDC |
| Interrupt Rating | Up to 50 kA @ 480 VAC |
| Trip Type | Thermal-Magnetic |
| Trip Functions | LI (Long-Time, Instantaneous) |
| Frequency | 50/60 Hz |
| Mounting Type | Bolt-On |
| Standards | UL Listed, HACR Rated, RoHS Compliant |
| Dimensions (W x H x D) | 7.5 x 16 x 4.5 in |
| Operating Temperature | Up to 40 °C |
| Weight | Approx. 13.4 kg |
Information About LMD63F800
The LMD63F800 is part of the Siemens SENTRON LMD series, developed for heavy-duty circuit protection in commercial and industrial applications. Built on the LMD frame, it provides robust performance with thermal-magnetic trip functionality offering long-time and instantaneous protection. The breaker supports both AC and DC systems, making it versatile for various distribution setups. Designed for panelboards and switchgear integration, it delivers dependable protection and operational stability in high-current systems.
Key Features:
- Molded Case Circuit Breaker Frame: Designed for high-capacity electrical protection systems
- 800 Amp Rating: Suitable for large-scale industrial power distribution
- 3-Pole Configuration: Supports three-phase electrical systems
- Thermal-Magnetic Trip Unit: Provides overload and short-circuit protection
- LI Protection Functions: Includes long-time and instantaneous trip characteristics
- SENTRON Series Design: Ensures compatibility with Siemens distribution systems
- Wide Voltage Support: Rated for 600 VAC and 500 VDC applications
- High Interrupting Capacity: Up to 50 kA at 480 VAC for fault protection
- SpeedFax™ Design: Engineered for reliability and consistent performance
- Bolt-On Mounting: Secure installation in panelboards and switchgear
- HACR Rated: Suitable for HVAC and refrigeration system protection
- Industrial Durability: Built for continuous operation in demanding environments
The LMD63F800 delivers the reliability and precision required for high-current circuit protection in industrial and commercial electrical distribution systems.
