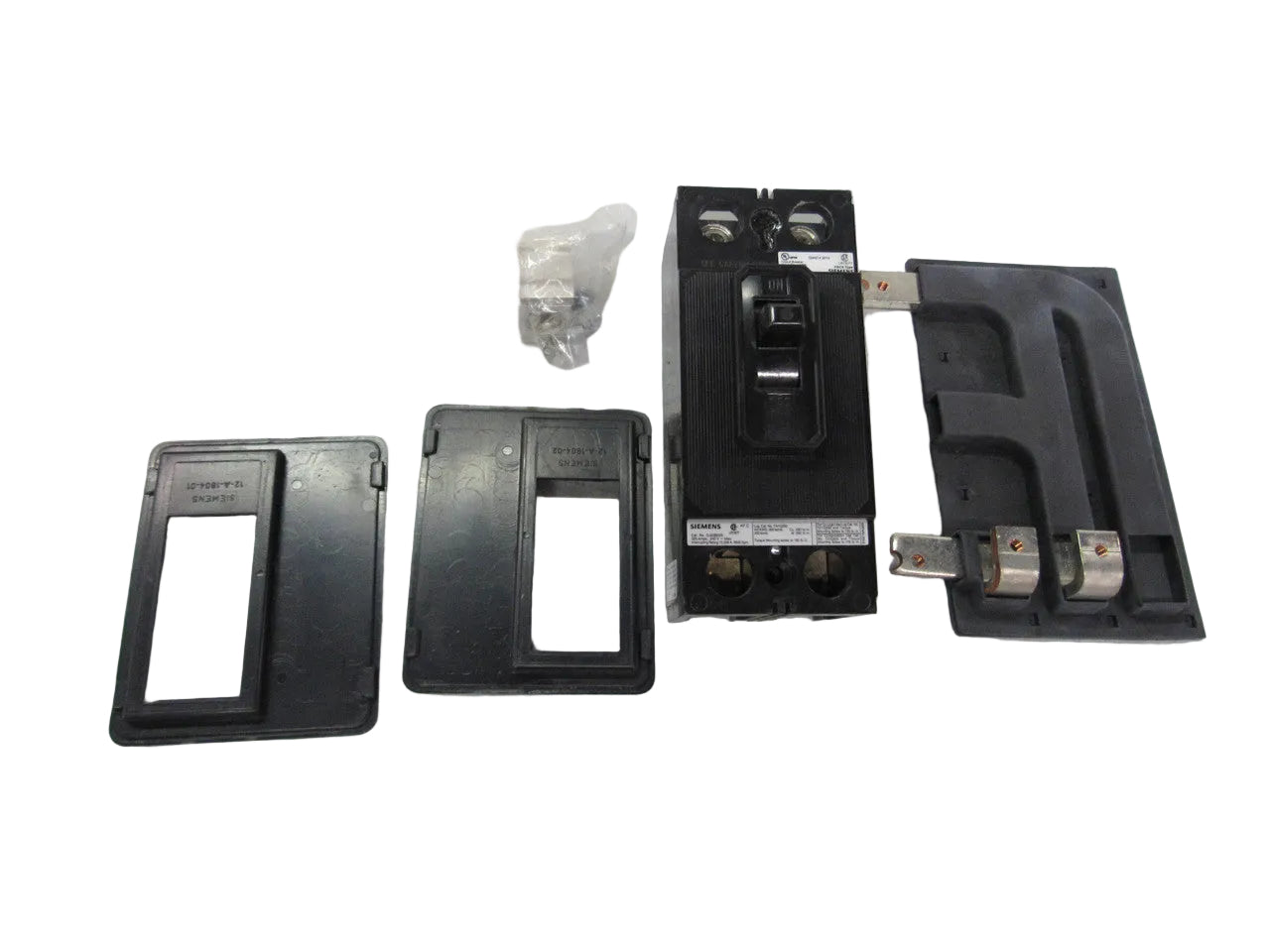

Siemens MBKQJ1225 225A 2-Pole Panelboard Sub-Feed Breaker Kit
- Regular price
- $1,147.00
- Sale price
- $1,147.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MBKQJ1225
Description
The Siemens MBKQJ1225 panelboard kit is a 225A, 2-pole sub-feed circuit breaker assembly designed for Siemens P1 panelboard distribution systems. Engineered with thermal magnetic trip protection and bolt-on mounting, it provides reliable feeder protection and branch power distribution in commercial electrical installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breakers |
| Part Number | MBKQJ1225 |
| Subcategory | Panelboard Breaker Kits |
| Series | MBK |
| Product Type | Panelboard Sub-Feed Breaker Kit |
| Current Rating | 225A |
| Voltage Rating | 240VAC |
| Pole Configuration | 2-Pole |
| Phase Configuration | Single Phase |
| Interrupt Rating | 10kA @ 240VAC |
| Mounting Style | Bolt-On |
| Terminal Type | Lugs |
| Compatible Panelboards | Siemens P1 Panelboards |
| Trip Technology | Thermal Magnetic |
| Trip Function | Long-Time and Instantaneous (LI) |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Wire Range | 6 AWG–300 kcmil (Cu), 4 AWG–300 kcmil (Al) |
| Maximum Wire Size | 300 kcmil |
| Minimum Wire Size | 6 AWG |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
| Included Accessories | Mounting Hardware, Breaker, Lugs |
| Standards | UL 489, CSA C22.2 |
| Approvals | UL, CSA |
| Temperature Rating | 40°C |
| Construction Features | Main Breaker Kit, 10kA Interrupt Rating |
| Weight | 6 lb |
Information About MBKQJ1225
The MBKQJ1225 is a Siemens MBK series main breaker and sub-feed panelboard kit developed for single-phase 240VAC electrical distribution applications. Designed for use with Siemens P1 panelboards, the assembly incorporates a 2-pole thermal magnetic circuit breaker with fixed long-time and instantaneous trip protection characteristics. The breaker supports conductor sizes ranging from 6 AWG to 300 kcmil copper and 4 AWG to 300 kcmil aluminum, providing installation flexibility in commercial and industrial feeder systems. Built to UL 489 and CSA C22.2 standards, the kit supports dependable overcurrent protection and structured panelboard distribution integration.
Key Features:
- 225A Current Rating: Designed for medium-capacity feeder and panelboard distribution applications.
- 2-Pole Breaker Configuration: Supports single-phase 240VAC electrical systems.
- Thermal Magnetic Protection: Combines overload and short-circuit protection functionality.
- Bolt-On Mounting Design: Provides secure breaker installation within Siemens P1 panelboards.
- LI Trip Functionality: Features long-time and instantaneous trip protection characteristics.
- Wide Wire Compatibility: Supports copper and aluminum conductors up to 300 kcmil.
- Included Installation Components: Supplied with mounting hardware, breaker, and lugs.
- UL and CSA Approved: Manufactured to UL 489 and CSA C22.2 certification standards.
The MBKQJ1225 delivers the reliability and precision required for panelboard feeder protection and commercial electrical distribution applications.
