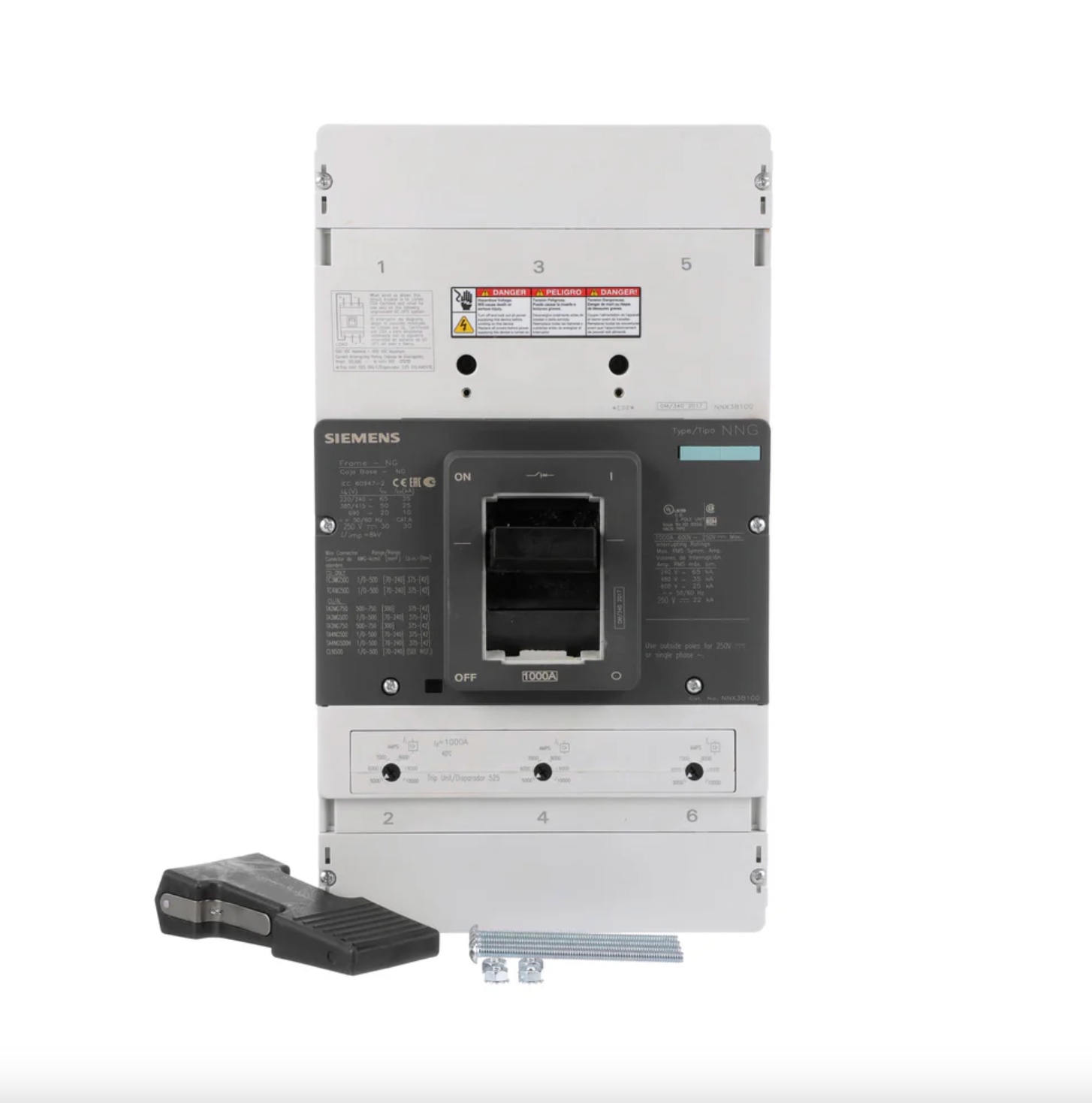

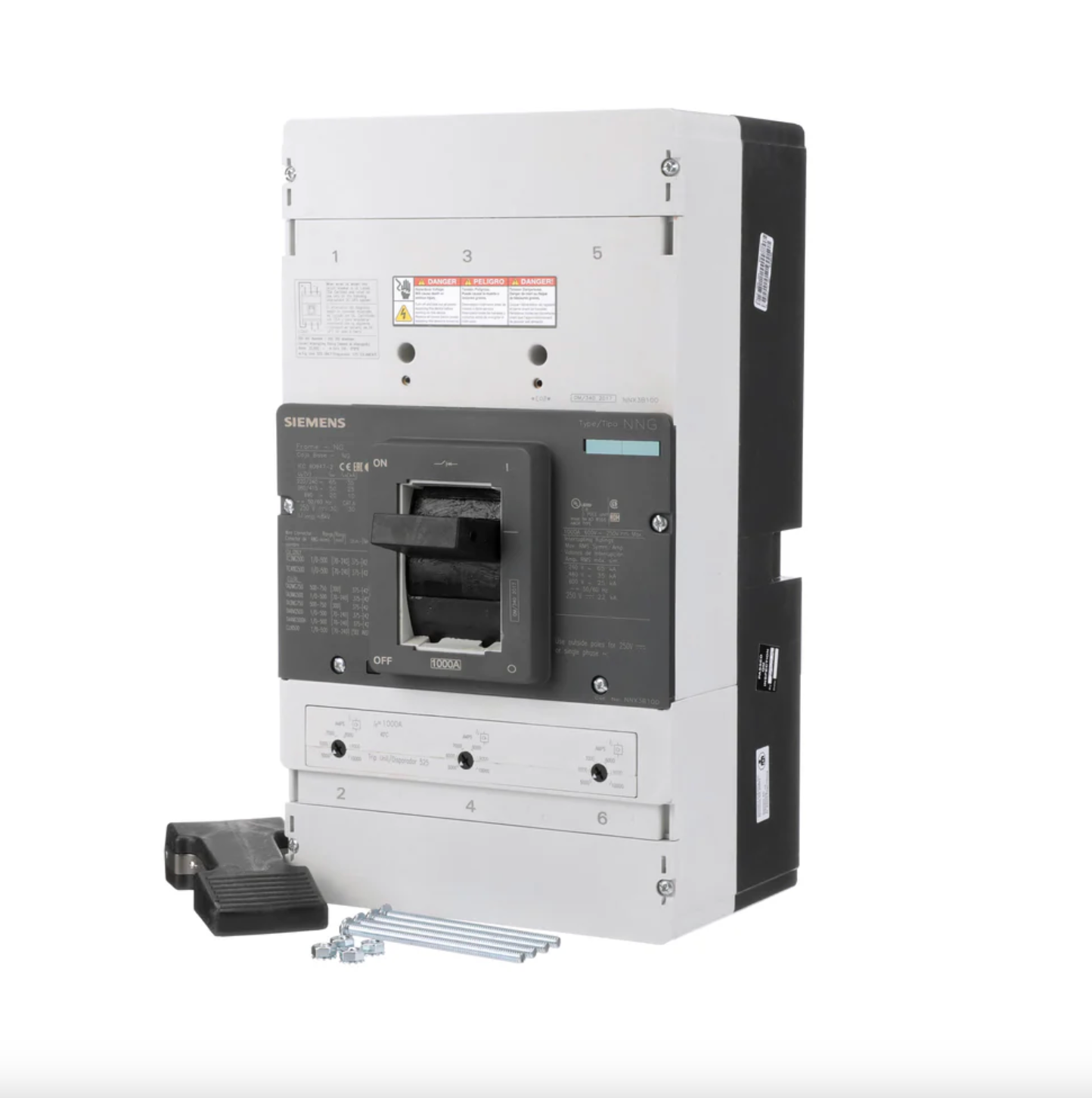

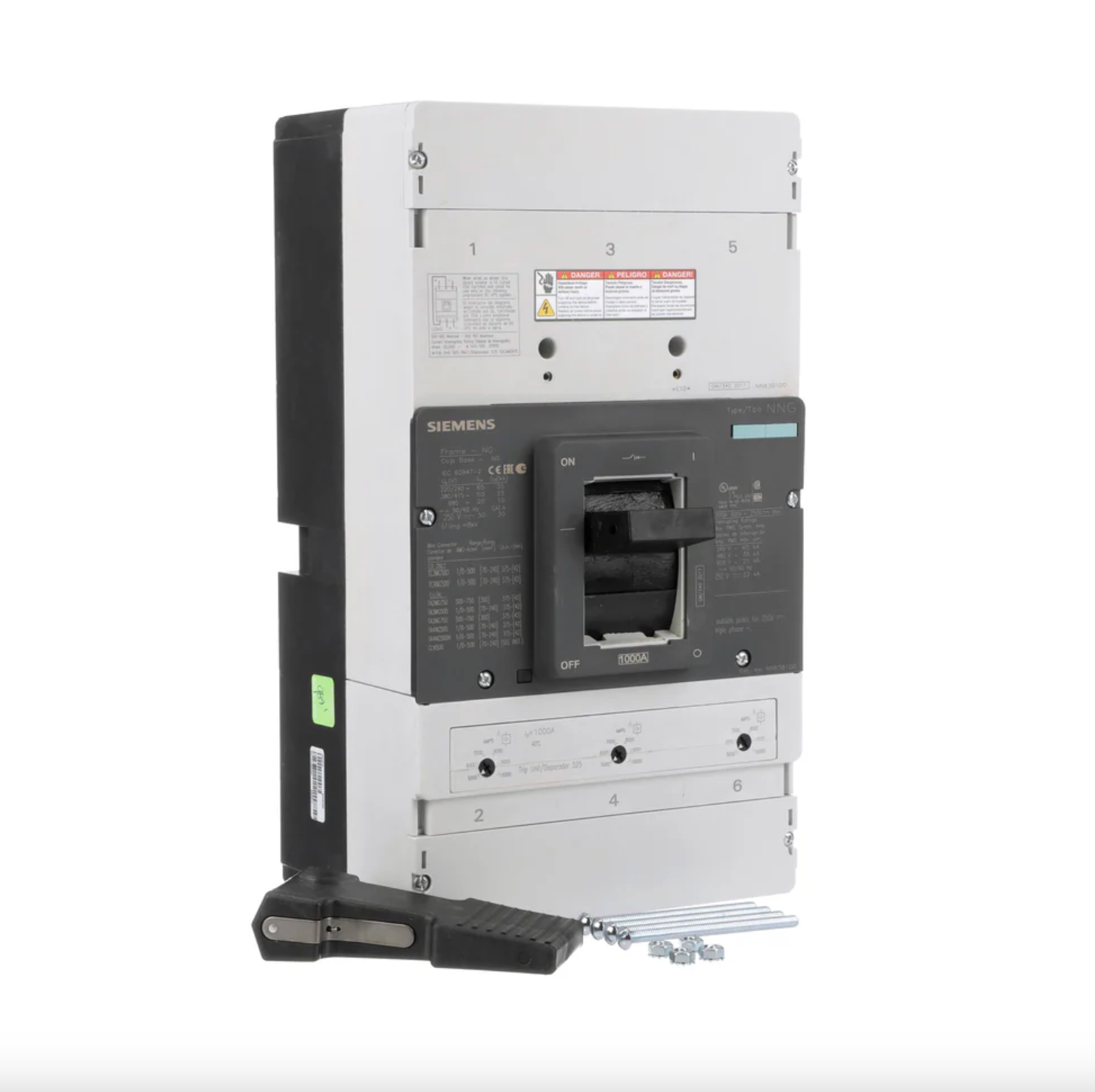

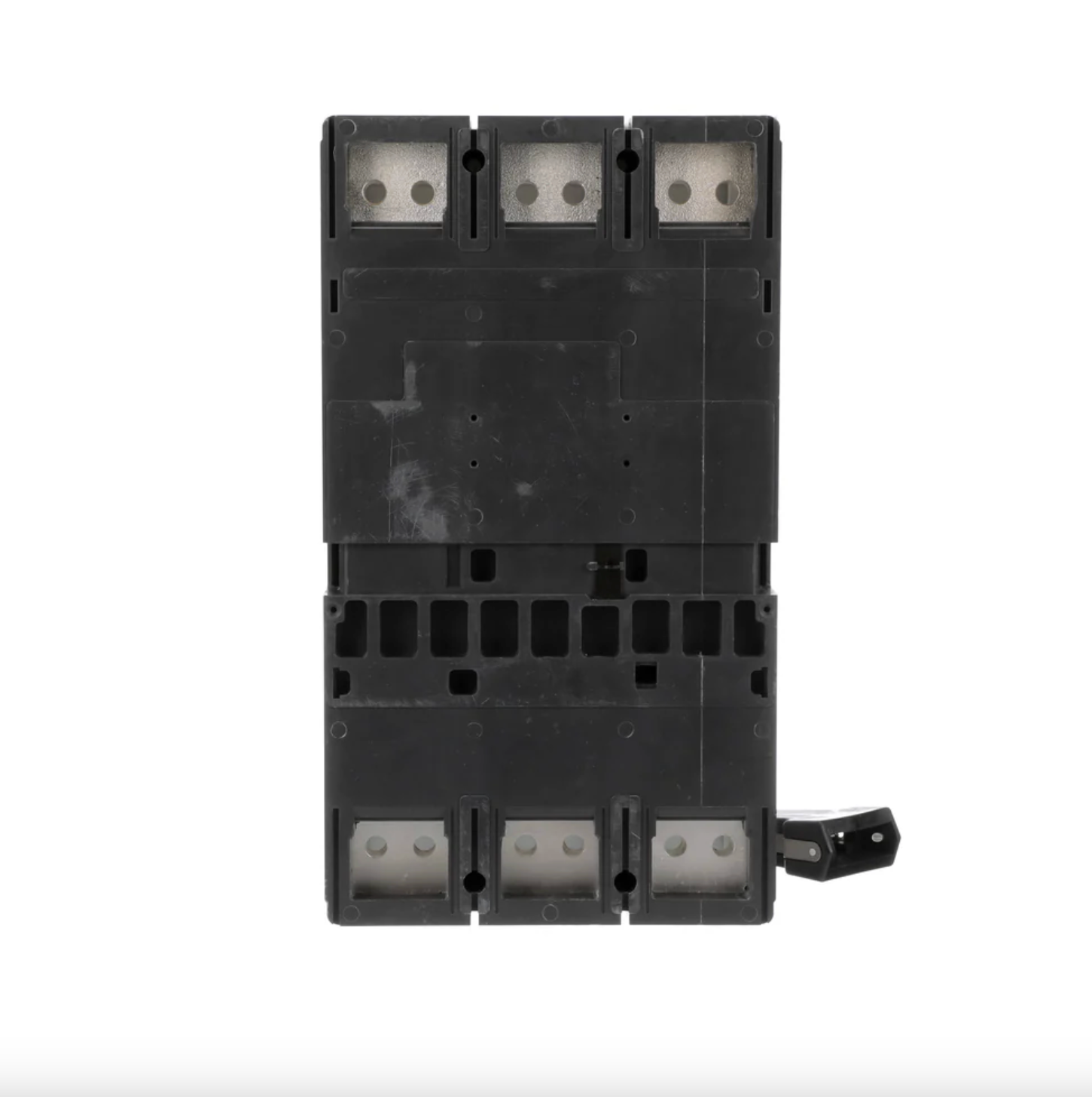

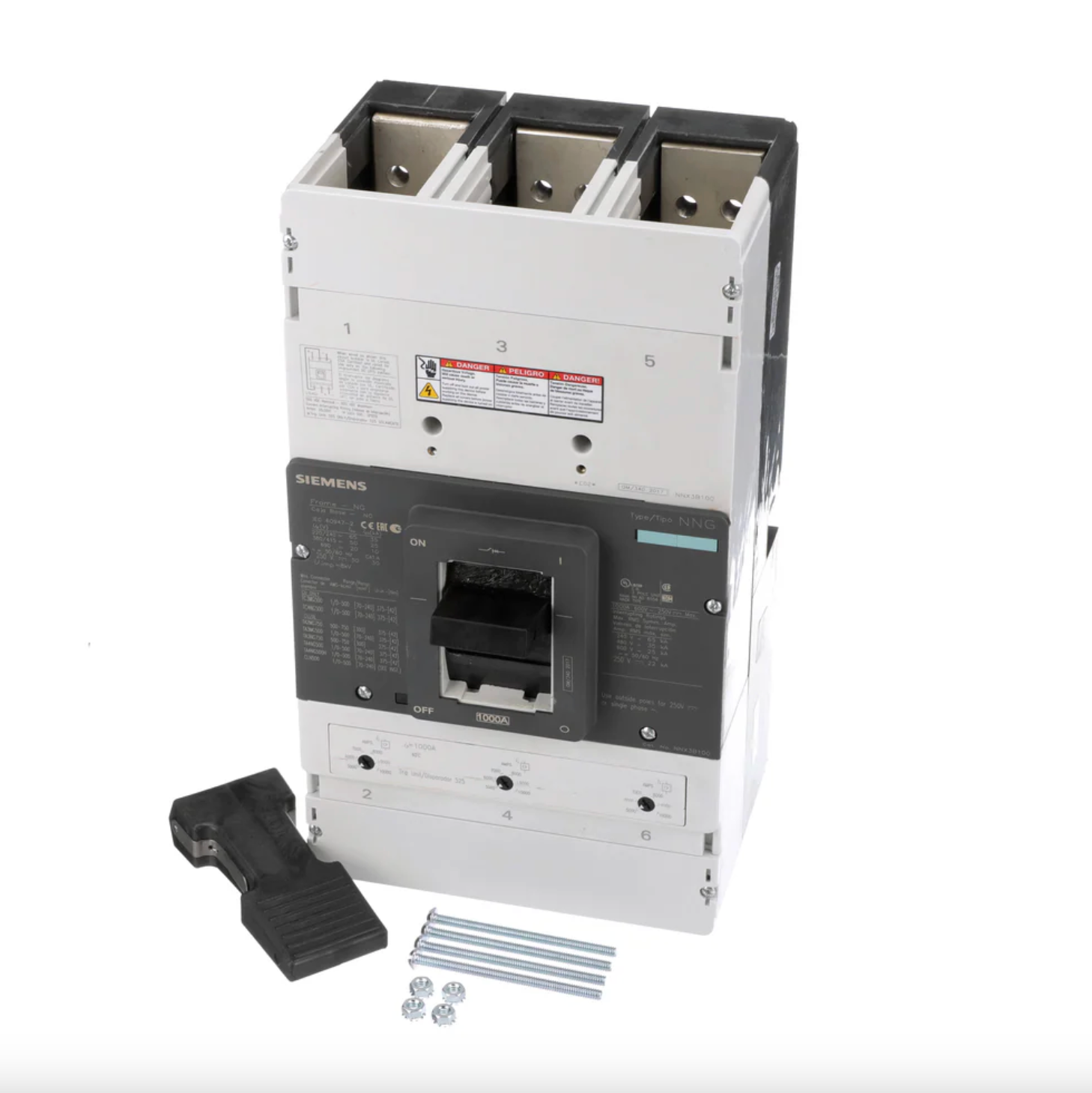

Siemens NNX3B100 1000A 3-Pole Molded Case Circuit Breaker 600VAC 35kA VL Series
- Regular price
- $9,872.00
- Sale price
- $9,872.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NNX3B100
Description
The Siemens NNX3B100 is a high-capacity molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. With a 1000 amp rating and robust interrupting performance, it ensures safe handling of overloads and short circuits. This breaker is engineered for three-phase applications requiring dependable circuit control and fault protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Part Number | NNX3B100 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Molded Case Circuit Breaker |
| Series | VL Series |
| Frame Size | 1200 A |
| Current Rating | 1000 A |
| Voltage Rating | 600 VAC |
| Poles | 3 Pole |
| Phase | 3 Phase |
| Interrupting Rating | 35 kA @ 480 VAC |
| Trip Unit | Thermal Magnetic |
| Functions | LI (Long-Time and Instantaneous) |
| Mounting Type | Bolt-On |
| Frequency | 50/60 Hz |
| Temperature Range | -25°C to +70°C |
| Application | Industrial power distribution |
| Note | Lugs not included |
| Weight | 65 lbs |
Information About
NNX3B100
The NNX3B100 is a Siemens circuit breaker from the VL series, designed for global non-interchangeable applications in low-voltage power distribution. It features a 3-pole configuration and is built on a 1200 amp frame, allowing it to handle high current loads with structural durability. The breaker uses a thermal magnetic trip unit, providing both long-time and instantaneous protection for enhanced system safety. Designed for bolt-on mounting, it integrates into panelboards and switchgear systems, making it suitable for industrial environments operating at up to 600 VAC.
Key Features:
- 1000 Amp Current Rating: Supports high-load electrical distribution systems
- 3-Pole Configuration: Designed for three-phase power applications
- 35 kA Interrupting Capacity: Provides reliable fault protection at 480 VAC
- VL Series Design: Compatible with Siemens global non-interchangeable breaker systems
- Thermal Magnetic Trip Unit: Ensures accurate overload and short-circuit protection
- Bolt-On Mounting: Enables secure installation in panelboards and switchgear
- 1200A Frame Size: Offers durability and flexibility for heavy-duty applications
- Wide Frequency Support: Operates at 50/60 Hz for global system compatibility
The NNX3B100 delivers the reliability and precision required for high-capacity circuit protection in industrial and commercial electrical systems.
